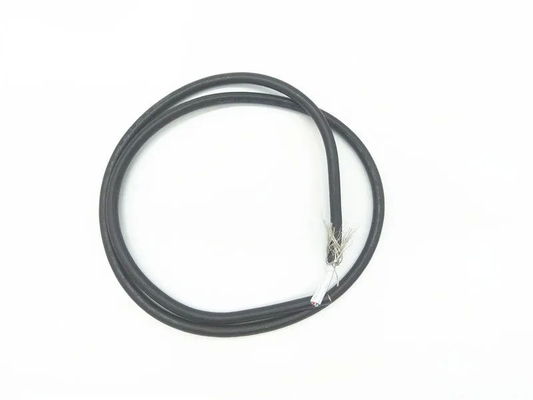

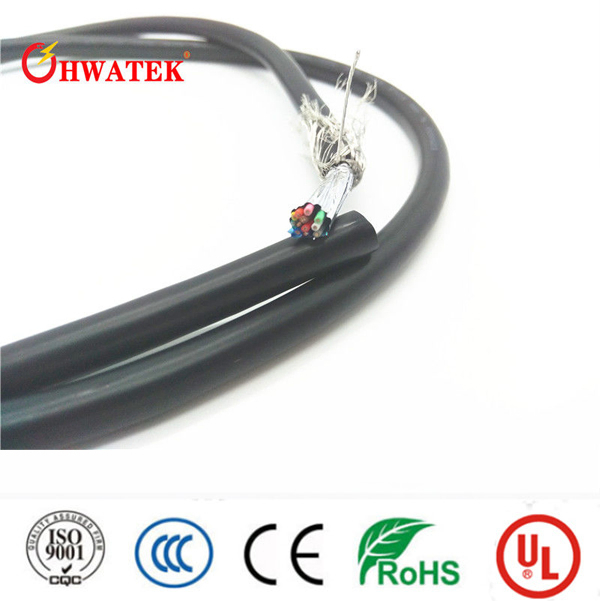

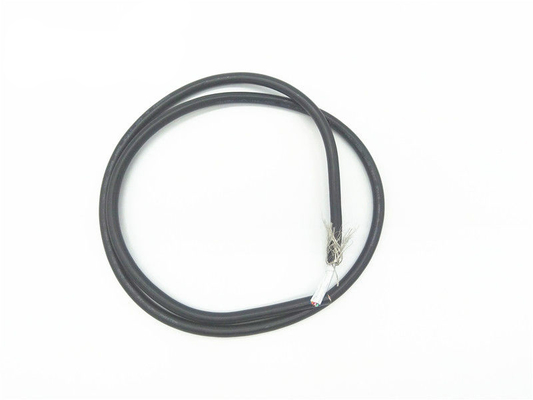

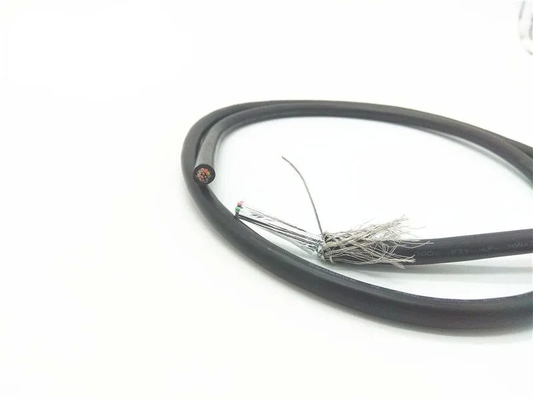

Hwatek 24AWG Twisted Shield Robot Cable 305m Roll

Large Image : Hwatek 24AWG Twisted Shield Robot Cable 305m Roll

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	PVC
Insulation Material:	TPEE	Material Shape:	Round Wire
Conductor Size:	16-24 AWG	Max Resistance:	87.6 Ω/km
Rated Temperature:	80ºC	Rated Voltage:	300V
Conductor Dia:	0.60-0.94 Mm	Insulation Thickness:	0.30-0.35 Mm
Nominal Dia:	1.30-14.8 Mm	Shield Thickness:	1.0 Mm
Shield Material:	Braiding	Jacket Material:	PVC Or PU
Flame Test:	UL VW-1, CSA FT1
Highlight:	24AWG twisted shield robot cable , 305m industrial flexible cable , shielded robot cable with warranty

Long-Distance Moving Type Twisted Shielding Signal Robot Cable

Product Specifications

Attribute	Value
Conductor Material	Copper
Sheath Material	PVC
Insulation Material	TPEE
Material Shape	Round Wire
Range of Application	Industrial Robot
Brand	Hwatek
Color	Optional
Qty/Roll	305m, 610m or as Request
Transport Package	Rolled in Reels, Packed in Pallets
Trademark	Hwatek
Origin	China
HS Code	8544492100

Product Overview

Technical Specifications

Product Number	Cores	Size AWG	NO./mm	Conductor Dia. mm	Thickness mm	Nom. Dia. mm	Material	Nom. Thickness mm	Nom. Dia. mm	Max. Cond. Resistance (200C) Ω/km
HTR***001	2P	24	41/0.08	0.60	0.30	1.30	Inner jacket+ Braiding	1.0	8.0	87.6
HTR***002	4P									9.0
HTR***003	6P									10.2
HTR***004	8P									13.9
HTR***005	2P	20	7/16/0.08	0.94	0.35	1.77	Inner jacket+ Braiding	1.0	9.6	34.6
HTR***006	4P									11.0
HTR***007	6P									12.8
HTR***008	8P									14.8

Product Features

Application

Long distance drag chain cable

Product Characteristics

Pass UL VW-1 and CSA FT1 vertical flame test
Oil and heat resistance
Anti-bending, abrasion and torsion

Construction

Stranded bare copper conductor, 16-24AWG
TPEE insulation
Braiding shield
PVC or PU jacket

Technical Parameters

Rated temperature: 80ºC
Rated Voltage: 300V
