UL20940 PVC Insulated Industrial Cable 305m Roll 600V

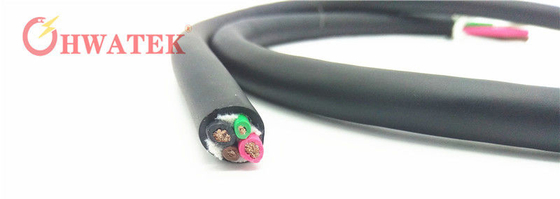

Large Image : UL20940 PVC Insulated Industrial Cable 305m Roll 600V

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Model NO.:	UL20940	Sheath Material:	PU
Insulation Material:	PVC, Sr-PVC, PE Or PP	Material Shape:	Round Wire
Qty/Roll:	305m,610m Or As Request	Rated Temperature:	80ºC
Rated Voltage:	600V , 1000V	Conductor Size:	32-4/0AWG
Conductor Type:	Tinned Or Bare Copper, Stranded Or Single Conductor	Shield Material:	Tinned Or Bare Copper Wire, Spiral Or Braid Shield Or Al-mylar Wrapped Shield
Max Conductor Resistance:	35.2 Ω/km (for HT20940**101)	Insulation Thickness:	0.76 Mm (nominal)
Jacket Thickness:	0.76 Mm (nominal)	Shield Coverage:	75%-95%
Core Wire Number:	2C-50C (optional)
Highlight:	UL20940 PVC insulated industrial cable , 600V industrial flexible cable , 305m roll PVC cable

UL20940 PVC Insulated Industrial Control Braided Wire Cable

Product Specifications

Attribute	Value
Model NO.	UL20940
Sheath Material	PU
Insulation Material	PVC, Sr-PVC, PE or PP
Material Shape	Round Wire
Range of Application	Electronic Equipment
Brand	Hwatek
Color	Optional
Qty/Roll	305m,610m or as Request
Transport Package	Rolled in Reels, Packed in Pallets.
Trademark	Hwatek
Origin	China
HS Code	8544492100

Product Overview

Products are used in communication equipment, instruments, industrial control systems, electronic and electrical equipment.

Key Features

Application: For internal wiring of electronic equipment and appliance
Application standard: UL758 & UL1581 & CSA C22.2 No.210
Excellent insulation performance, stable chemical properties
Pass UL VW-1 and CSA FT1 vertical flame test
Heat resistance, anti-acid and environmental protection

Construction Details

Tinned or bare copper, stranded or single conductor, 32-4/0AWG
PVC, SR-PVC, PE or PP insulation
Two or more single-core wires twisted into pair or cabling
Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
PU jacket (Halogen free material available)

Technical Parameters

Rated temperature: 80ºC
Rated Voltage: 600V, 1000V

Technical Specifications

Product Number	Conductor	Insulation	Shield	Jacket	Max. Cond. Resistance (200C) Ω/km
HT20940**101	10C 20 26/0.16 0.81	0.76 2.4	Mylar 80%	0.76 8.40	35.2
HT20940**102	7C 18 41/0.16 1.02	0.76 2.7	AL 95%	0.76 9.70	22.2
HT20940**103	4C 14 41/0.254 1.61	0.76 3.1	Mylar 75%	0.76 9.50	8.78
HT20940**104	3C 12 65/0.254 2.03	0.76 3.6	AL 85%	0.76 11.00	5.353
HT20940**105	2C 10 65/0.32 2.57	0.76 4.2	AL 85%	0.76 10.50	3.48

Remark: Optional core wire number 2C-50C, and shielding way

Company Profile

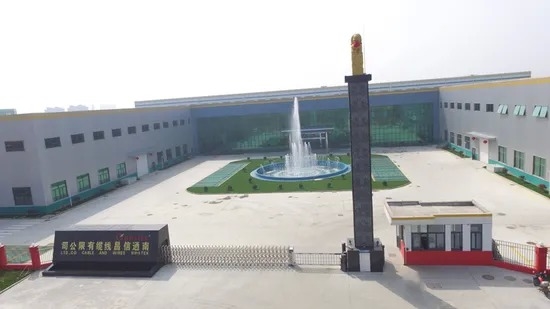

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.

In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.

With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
