UL2464 PVC Braid Shielded Power Cable 24-28AWG 300V Industrial Wire

Large Image : UL2464 PVC Braid Shielded Power Cable 24-28AWG 300V Industrial Wire

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Model NO.:	UL	Material Shape:	Round Wire
Qty/Roll:	305m,610m Or As Request	Specification:	24-28AWG
Production Capacity:	20km/Day	Rated Temperature:	60ºC
Rated Voltage:	300V	Conductor Size:	36-16AWG
Max Core Size:	20AWG	Shield Type:	Braid Or Al-mylar Wrapped
Jacket Material:	PU (Halogen Free Available)	Insulation Material:	PP
Conductor Type:	Tinned Or Bare Copper	Flame Test:	UL VW-1 And CSA FT1
Max Cond. Resistance:	223 Ω/km (28AWG)
Highlight:	UL2464 PVC shielded power cable , 24-28AWG industrial wire , 300V braided shielded cable

UL2464 PVC Insulated Braid Shielded Electrical Industrial Electric Power Wire Cable

Product Specifications

Attribute	Value
Model NO.	UL
Material Shape	Round Wire
Color	Optional
Qty/Roll	305m,610m or as Request
Lead Time	2-8W
Shipping Mode	Sea, Air, Rail, Truck
Transport Package	Rolled in Reels, Packed in Pallets
Specification	24-28AWG
Trademark	Hwatek
Origin	China
HS Code	8544492100
Production Capacity	20km/Day

Product Description

Products are widely used in industrial control systems, household appliances, office systems, and consumer electronics.

Key Features

Application: Internal wiring or external interconnection of electronic equipment
Application standard: UL758 & UL1581 & CSA C22.2 No.210
Excellent insulation performance with stable chemical properties
Passes UL VW-1 and CSA FT1 vertical flame test
Heat resistant, anti-acid, and environmentally friendly

Construction Details

Tinned or bare copper, stranded or single conductor (2-50 conductors) 36-16AWG
PP insulation
Max core wire size: 20AWG, available in flat or round
Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
PU jacket (Halogen free material available) cable is either straight or spiral

Technical Parameters

Rated temperature: 60ºC
Rated Voltage: 300V

Product Specifications Table

Product Number	Conductor	Insulation	Shield	Jacket	Max. Cond. Resistance (200C) Ω/km
HT21007**101	3C 28 AWG 7/0.127 0.38mm	0.26mm 0.80mm	0.025mm 0.10mm 0.80mm	3.80mm	223
HT21007**102	3C 26 AWG 7/0.16 0.48mm	0.26mm 0.90mm	0.025mm 0.10mm 0.80mm	4.04mm	140
HT21007**103	3C 24 AWG 11/0.16 0.60mm	0.26mm 1.12mm	0.025mm 0.10mm 0.80mm	4.51mm	87.6
HT21007**104	3C 22 AWG 17/0.16 0.76mm	0.26mm 1.30mm	0.025mm 0.10mm 0.80mm	4.90mm	55.4
HT21007**105	6C 28 AWG 7/0.127 0.38mm	0.26mm 0.80mm	0.025mm 0.12mm 0.80mm	4.70mm	223
HT21007**106	6C 26 AWG 7/0.16 0.48mm	0.26mm 0.90mm	0.025mm 0.12mm 1.00mm	5.30mm	140
HT21007**107	6C 24 AWG 11/0.16 0.60mm	0.26mm 1.12mm	0.025mm 0.12mm 1.00mm	6.00mm	87.6

Remark: Optional core wire number 2C-50C, and shielding way

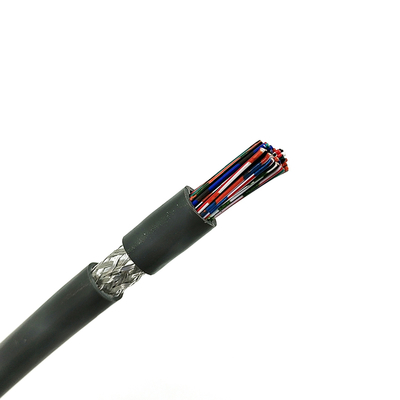

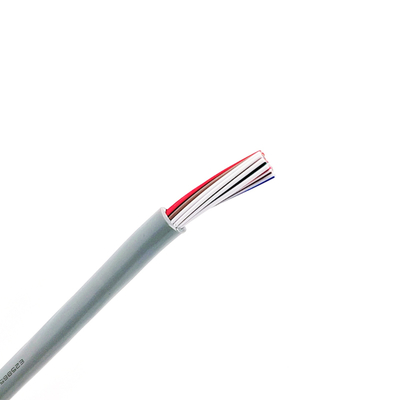

Product Images

Company Profile

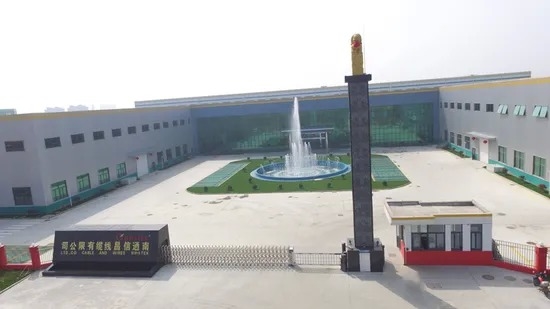

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters. With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
