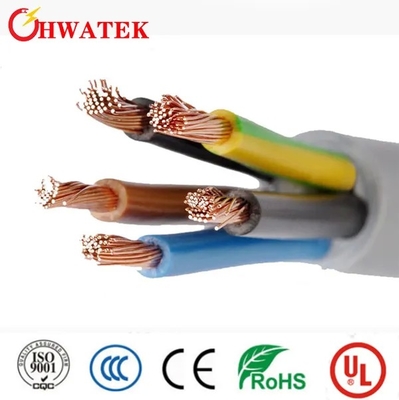

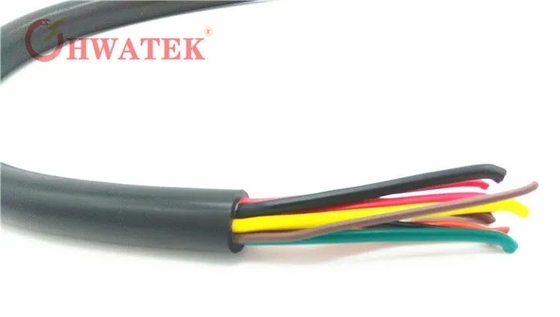

Hwatek PVC XLPE Insulated Industrial Cable 300V 105C

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Sheath Material:	XLPE	Insulation Material:	PVC Or XLPE
Material Shape:	Round Wire	Rated Temperature:	105ºC
Rated Voltage:	300V	Conductor Size:	28 AWG
Conductor Dia.:	0.38 Mm	Insulation Thickness:	0.23 Mm
Insulation Dia.:	0.84 Mm	Braid Shield Thickness:	0.1 Mm
Jacket Thickness:	0.80 Mm	Max Conductor Resistance:	223 Ω/km
Cable Cores:	2C-50C	Shielding Type:	Tinned Or Bare Copper Wire, Spiral Or Braid Shield Or Al-mylar Wrapped Shield
Cable Shape:	Round, Flat, Or Oval-shaped
Highlight:	PVC XLPE insulated industrial cable , 300V 105C industrial flexible cable , industrial cable with PVC insulation

PVC Insulated Electrical Medium Voltage Cable

Product Specifications

Attribute	Value
Sheath Material	XLPE
Insulation Material	PVC or XLPE
Material Shape	Round Wire
Range of Application	Industrial Control
Brand	Hwatek
Color	Optional
Qty/Roll	305m, 610m or as Request
Transport Package	Rolled in Reels, Packed in Pallets
Trademark	Hwatek
Origin	China
HS Code	8544492100

Product Description

Products are used in communication equipment, instruments, industrial control systems, electronic and electrical equipment.

Application

For internal wiring or external interconnection of electronic equipment.

Application Standard

UL758 & UL1581 & CSA C22.2 No.210

Product Characteristics

Excellent insulation performance, stable chemical properties
Pass UL VW-1 and CSA FT1 vertical flame test
High-temperature resistance, anti-acid, environmental protection

Construction

Tinned or bare copper, stranded or single conductor
PVC or XLPE insulation
Two or more single-core wires twisted into pair or cabling to form round, flat, or oval-shaped cable
Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
XLPE jacket

Technical Parameters

Rated temperature: 105°C
Rated Voltage: 300V

Product Specifications Table

Product Number	Conductor	Insulation	Braid Shield	Jacket	Max. Cond. Resistance (20°C) Ω/km
HT20010**101	2C 28 AWG 7/0.127 0.38mm	0.23mm 0.84mm	0.1mm 2.08mm	0.80mm 3.68mm	223
HT20010**102	3C 28 AWG 7/0.127 0.38mm	0.23mm 0.84mm	0.1mm 2.21mm	0.80mm 3.81mm	223
HT20010**103	4C 28 AWG 7/0.127 0.38mm	0.23mm 0.84mm	0.1mm 2.43mm	0.80mm 4.03mm	223
HT20010**104	6C 28 AWG 7/0.127 0.38mm	0.23mm 0.84mm	0.1mm 2.92mm	0.80mm 4.52mm	223
HT20010**105	9C 28 AWG 7/0.127 0.38mm	0.23mm 0.84mm	0.1mm 3.51mm	0.80mm 5.11mm	223
HT20010**106	15C 28 AWG 7/0.127 0.38mm	0.23mm 0.84mm	0.1mm 4.35mm	0.80mm 6.15mm	223

Remark: Optional core wire number 2C-50C, and shielding way
