FRPE Jacket Multi Core Hook Up Wire Cable 305m Roll Industrial Control

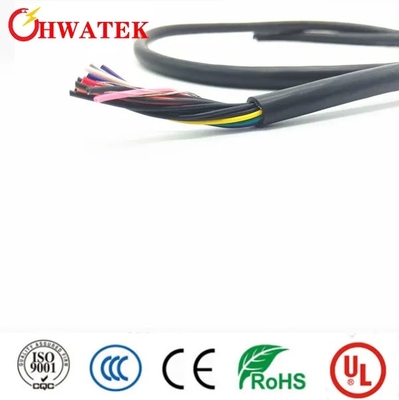

Large Image : FRPE Jacket Multi Core Hook Up Wire Cable 305m Roll Industrial Control

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Sheath Material:	Frpe	Insulation Material:	PP Or PE
Material Shape:	Round Wire	Rated Temperature:	80ºC
Rated Voltage:	30V	Conductor Type:	Tinned Or Bare, Stranded Or Single Copper
Shield Type:	Spiral Or Braiding Shield With Tinned Or Bare Copper Or Al-mylar Wrapped Shield	Max Conductor Resistance:	74.5 Ω/km (for 0.25mm²), 59.4 Ω/km (for 0.34mm²)
Conductor Diameter:	0.60mm (for 0.25mm²), 0.75mm (for 0.34mm²)	Insulation Thickness:	0.80mm
Nominal Diameter:	2.20mm (for 0.25mm²), 2.35mm (for 0.34mm²)	Jacket Thickness:	1.0mm
Nominal Jacket Diameter:	6.7mm To 8.3mm (varies By Core Count)	Flame Test:	UL VW-1 And CSA FT1 Vertical Flame Test Passed
Core Options:	2C-50C
Highlight:	FRPE jacket multi core cable , industrial control hook up wire , 305m flexible cable roll

FRPE Jacket Multi Core Hook Up Wire Cable

Product Specifications

Attribute	Value
Sheath Material	FRPE
Insulation Material	PP or PE
Material Shape	Round Wire
Range of Application	Industrial Control
Brand	Hwatek
Color	Optional
Qty/Roll	305m, 610m or as Request
Transport Package	Rolled in Reels, Packed in Pallets
Trademark	Hwatek
Origin	China
HS Code	8544492100

Product Description

Designed for industrial machinery, instruments, control systems, and electronic equipment. Ideal for internal wiring of sensors and other precision applications.

Key Features

Oil and heat resistant with excellent anti-abrasion properties
Halogen free construction
Passes UL VW-1 and CSA FT1 vertical flame tests
Complies with UL758, UL1581 standards
UL numbers: UL20855, UL21100, UL21118

Construction Details

Conductor: Tinned or bare, stranded or single copper
Insulation: PE or PP material
Configuration: Two or more single-core wires twisted together
Shielding: Spiral or braiding with tinned/bare copper or Al-mylar wrap
Jacket: FRPE material

Technical Parameters

Rated temperature: 80°C
Rated voltage: 30V

Product Specifications

Product No.	Cores	mm²	NO./mm	Conductor Dia. (mm)	Insulation Thickness (mm)	Insulation Dia. (mm)	Jacket Thickness (mm)	Jacket Dia. (mm)	Max. Cond. Resistance Ω/km
HTD***043	3	0.25	30/0.1	0.60	0.80	2.20	1.0	6.7	74.5
HTD***044	4	0.25	30/0.1	0.60	0.80	2.20	1.0	7.3	74.5
HTD***045	5	0.25	30/0.1	0.60	0.80	2.20	1.0	7.9	74.5
HTD***046	3	0.34	42/0.1	0.75	0.80	2.35	1.0	7.1	59.4
HTD***047	4	0.34	42/0.1	0.75	0.80	2.35	1.0	7.6	59.4
HTD***048	5	0.34	42/0.1	0.75	0.80	2.35	1.0	8.3	59.4

Note: Optional core wire number 2C-50C, and various shielding methods available.
