Halogen Free PU Jacket Multi-Core Copper Cable 600V 80C Industrial

Large Image : Halogen Free PU Jacket Multi-Core Copper Cable 600V 80C Industrial

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Sheath Material:	Frpe	Insulation Material:	PP Or PE
Material Shape:	Round Wire	Qty/Roll:	305m,610m Or As Request
Rated Temperature:	80ºC	Rated Voltage:	600V, 1000V
Conductor Type:	Tinned Or Bare, Stranded Or Single Copper	Shield Type:	Spiral Or Braiding Shield With Tinned Or Bare Copper Or Al-mylar Wrapped Shield
Jacket Material:	PU (halogen Free Optional)	Max Conductor Resistance:	74.5 Ω/km (0.25mm²), 59.4 Ω/km (0.34mm²)
Conductor Diameter:	0.60mm (0.25mm²), 0.75mm (0.34mm²)	Insulation Thickness:	0.80mm
Nominal Diameter:	2.20mm (0.25mm²), 2.35mm (0.34mm²)	Jacket Thickness:	1.0mm
Core Options:	2C-50C
Highlight:	Halogen Free PU Jacket Cable , Multi-Core Copper Industrial Cable , 600V 80C Flexible Cable

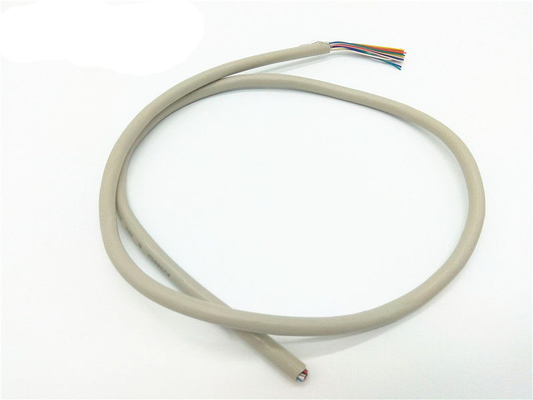

Halogen Free PU Jacket Multi-Core Copper Cable Wires

Product Specifications

Attribute	Value
Model NO.	UL
Sheath Material	Frpe
Insulation Material	PP or PE
Material Shape	Round Wire
Range of Application	Industrial Control
Brand	Hwatek
Color	Optional
Qty/Roll	305m,610m or as Request
Transport Package	Rolled in Reels, Packed in Pallets.
Trademark	Hwatek
Origin	China
HS Code	8544492100

Product Description

These high-quality cables are designed for use in industrial machinery, instruments, control systems, and electronic equipment. Ideal for sensor wiring applications.

Key Features

Oil and heat resistant with excellent abrasion resistance
Halogen free construction for safety
Passes UL VW-1 and CSA FT1 vertical flame tests

Construction

Tinned or bare copper conductor (stranded or single)
PE or PP insulation
Twisted multi-core cabling (2+ wires)
Optional spiral/braiding shield (tinned/bare copper or Al-mylar)
PU jacket (halogen free material available)

Technical Parameters

Rated temperature: 80°C
Rated Voltage: 600V, 1000V

Product Specifications Table

Product Number	Conductor	Insulation	Jacket	Max. Cond. Resistance (20°C) Ω/km
HTD***037	3 cores, 0.25mm², 30/0.1, 0.60mm	0.80mm, 2.20mm	1.0mm, 6.7mm	74.5
HTD***038	4 cores, 0.25mm², 30/0.1, 0.60mm	0.80mm, 2.20mm	1.0mm, 7.3mm	74.5
HTD***039	5 cores, 0.25mm², 30/0.1, 0.60mm	0.80mm, 2.20mm	1.0mm, 7.9mm	74.5
HTD***040	3 cores, 0.34mm², 42/0.1, 0.75mm	0.80mm, 2.35mm	1.0mm, 7.1mm	59.4
HTD***041	4 cores, 0.34mm², 42/0.1, 0.75mm	0.80mm, 2.35mm	1.0mm, 7.6mm	59.4
HTD***042	5 cores, 0.34mm², 42/0.1, 0.75mm	0.80mm, 2.35mm	1.0mm, 8.3mm	59.4

Note: Optional core wire number 2C-50C, and various shielding methods available.

Company Profile

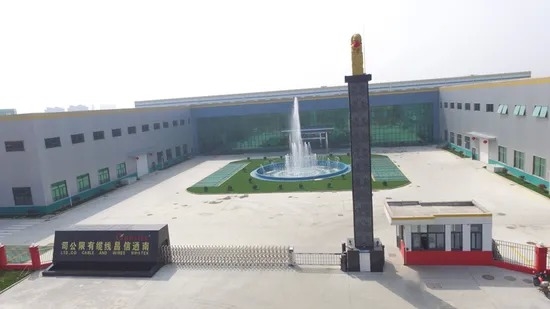

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.

We hold ISO9001, ISO14001, IATF16949, and ISO13485 system certifications. All products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We operate globally based on the principles of HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
