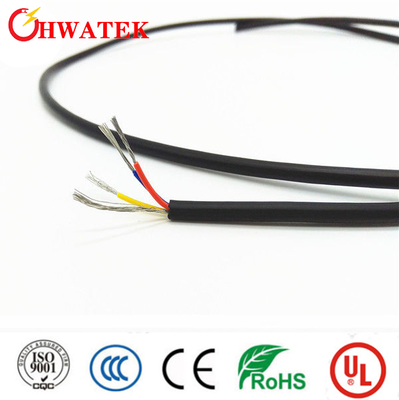

UL20549 300V 3-5 Cores Insulated Electrical Bare Copper Cable and Wire
Product Specifications
| Attribute | Value |
| Model NO. | UL20549 |
| Sheath Material | PU |
| Insulation Material | PVC, Sr-PVC, PE or PP |
| Material Shape | Round Wire |
| Range of Application | Industrial Control |
| Brand | Hwatek |
| Color | Optional |
| Qty/Roll | 305m, 610m or as Request |
| Transport Package | Rolled in Reels, Packed in Pallets |
| Trademark | Hwatek |
| Origin | China |
| HS Code | 8544492100 |
Product Description
These high-quality cables are designed for use in industrial machinery, instruments, control systems, and electronic equipment.
Key Features
- Application: Ideal for sensor wiring applications
- Compliance: Meets UL758, UL1581 & CSA C22.2 No.210 standards
- Excellent insulation performance with stable chemical properties
- Acid-resistant and environmentally friendly construction
- Heat resistant, passes UL VW-1 and CSA FT1 vertical flame tests
Construction Details
- Conductor: Tinned or bare, stranded or single copper (26-14AWG)
- Insulation: PVC, SR-PVC, PE or PP
- Configuration: Two or more single-core wires twisted and cabled
- Shielding: Spiral or braiding with tinned/bare copper or Al-mylar wrap
- Jacket: PU (halogen free material available)
Technical Parameters
- Rated temperature: 80°C
- Rated Voltage: 300V
Technical Specifications
| Product Number | Cores | mm² | NO./mm | Conductor Dia. (mm) | Nom. Thickness (mm) | Nom. Dia. (mm) | Nom. Thick. (mm) | Nom. Dia. (mm) | Max. Cond. Resistance Ω/km |
| HT20549M**0001 | 3 | 0.25 | 30/0.1 | 0.60 | 0.80 | 2.20 | 1.0 | 6.7 | 74.5 |
| HT20549M**0002 | 4 | 0.25 | 30/0.1 | 0.60 | 0.80 | 2.20 | 1.0 | 7.3 | 74.5 |
| HT20549M**0003 | 5 | 0.25 | 30/0.1 | 0.60 | 0.80 | 2.20 | 1.0 | 7.9 | 74.5 |
| HT20549M**0004 | 3 | 0.34 | 42/0.1 | 0.75 | 0.80 | 2.35 | 1.0 | 7.1 | 59.4 |
| HT20549M**0005 | 4 | 0.34 | 42/0.1 | 0.75 | 0.80 | 2.35 | 1.0 | 7.6 | 59.4 |
| HT20549M**0006 | 5 | 0.34 | 42/0.1 | 0.75 | 0.80 | 2.35 | 1.0 | 8.3 | 59.4 |
Optional core wire number 2C-50C, and shielding way available
Company Profile

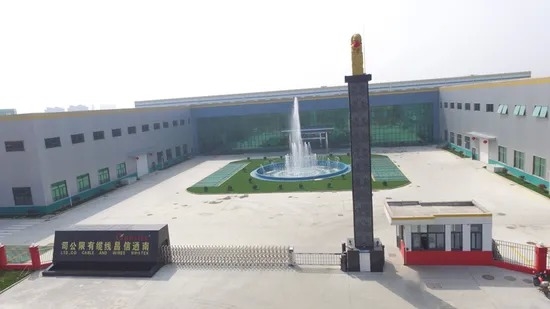

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
With ISO9001, ISO14001, IATF16949, and ISO13485 system certifications, all products meet CCC, UL, CUL, CE, CSA, and ETL safety standards. We serve global customers through our sales system based on the principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What certificates do you have?
A: Our products have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL certifications.
Q: Can we get samples before ordering?
A: Yes, we can arrange samples for evaluation.
Q: What's your lead time?
A: Standard lead time is 2-3 weeks, extending to 5-6 weeks during peak seasons.
Q: How do you guarantee product quality?
A: We conduct pre-production sampling and final inspection before shipment to ensure quality standards.
Major Customers
We serve a global clientele across various industries with our high-quality cable solutions.
