EV Charging Cable with 30km/Day Production Capacity Multicore Copper Conductor for High Voltage Applications

Large Image : EV Charging Cable with 30km/Day Production Capacity Multicore Copper Conductor for High Voltage Applications

Product Details:

Certification:	ISO9001, CE, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000

Contact Now

Detailed Product Description

Conductor Material:	Bared Copper Stranded	Sheath Material:	TPU
Insulation Material:	Thermoplastic(EF2585,85±3A)	Rated Voltage:	DC 1000V
Rated Temperature:	Jacket -40~90ºC, Insulation -40~125ºC	Max Conductor Resistance:	A:0.242Ω/km, B:0.78Ω/km, C:4.95Ω/km, D&E:26Ω/km
Insulation Voltage Withstand:	AC 2.5kV/5min, Leakage Current ≤5mA	Cable Voltage Withstand:	AC 3.5kV/15min, Leakage Current ≤5mA
Min Insulation Resistance:	500MΩ.km	Tensile Strength:	≥20MPa
Elongation:	≥300%	Min Bend Radius:	6*OD
Abrasion Resistance:	≥2000times	Outer Diameter:	38.00+0.6/-1.00mm
Production Capacity:	30km/Day
Highlight:	30km/Day Production Capacity EV Charging Cable , Multicore EV Charging Cable , Copper Conductor EV Charging Cable

AC/DC 1000V High Voltage EV Power Charger Multicore Electric Wire Cable

Product Specifications

Product	A: 2C×80mm²	B: 1C×25mm²	C: 1C×4mm²	D: (3C×0.75mm²)(P2)	E: (7C×0.75mm²)
CONDUCTOR
Material	Bared copper stranded
Size	2580/0.20±0.008mm	798/0.20±0.008mm	224/0.15±0.008mm	40/0.15±0.008mm+10/0.19mmTinsel+200DKevlar	40/0.15±0.008mm+10/0.19mmTinsel+200D Kevlar
O.D.(Ref.)	12.40±0.25mm	7.00±0.20mm	2.70±0.15mm	1.40±0.10mm	1.40±0.10mm
INSULATION
Material	Thermoplastic(EF2585,85±3A)
Min. average thickness	1.60mm	1.20mm	1.00mm	0.50mm	0.50mm
Min.thickness at any point	1.34mm	0.98mm	0.80mm	0.35mm	0.35mm
O.D.	15.60±0.40mm	9.60±0.30mm	4.70±0.20mm	2.50±0.10mm	2.50±0.10mm

Technical Specifications

Electrical Characteristics	Physical Properties
Rated voltage: DC 1000V	Tensile strength: ≥20MPa
Rated temperature: Jacket -40~90ºC Insulation -40~125ºC	High temperature pressure test: ≤50%
Max. conductor resistance(20ºC): A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km	Heat shock test: No crack
Insulation Voltage withstand(Core A&B,10m): AC 2.5kV/5min,leakage current ≤5mA	Compatibility test: GB/T 33594
Completed cable Voltage withstand(Core A to A&B,10m): AC 3.5kV/15min,leakage current ≤5mA	Crush resistance test: GB/T 33594
Min. Insulation resistance(20ºC, Core A to A&B): 500MΩ.km	Curved around the test: GB/T 33594

Company Profile

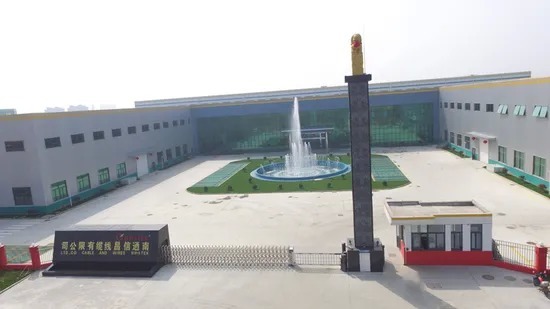

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.

With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.

Product Images
