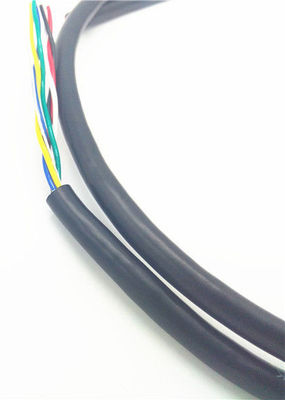

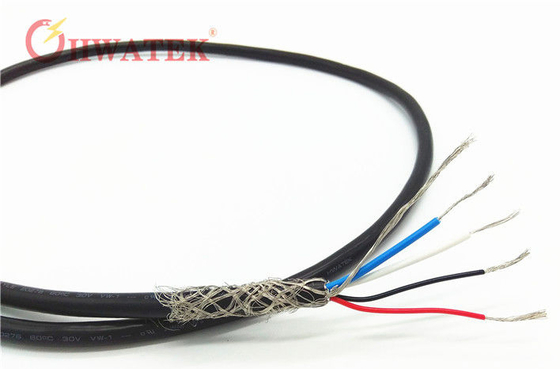

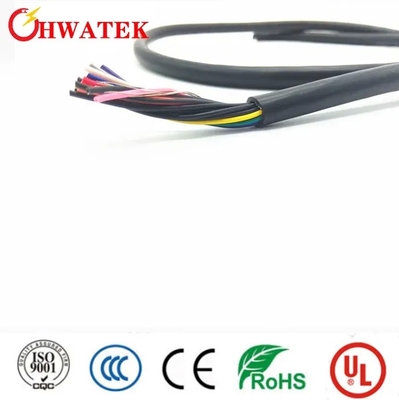

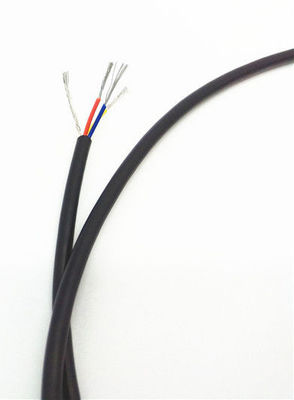

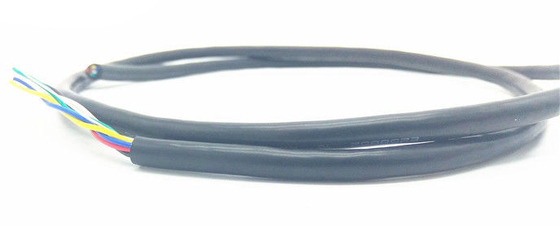

UL21414 XLPE Insulated Flexible Electric Wire Cable
These high-performance cables are designed for use in communication equipment, instruments, industrial control systems, and various electronic/electrical applications.
Key Features
- Excellent insulation performance with stable chemical properties
- UL VW-1 and CSA FT1 vertical flame test certified
- High-temperature resistance up to 150°C
- Anti-acid properties and environmentally friendly
- Flexible design for easy installation
Applications
Internal wiring or external interconnection of electronic equipment.
Complies with UL758, UL1581 & CSA C22.2 No.210 standards.
Construction
- Conductor: Tinned or bare copper, stranded or single conductor
- Insulation: PVC, PE, or XLPE materials
- Configuration: Multiple single-core wires twisted into pairs or cables
- Shielding: Tinned/bare copper wire, spiral/braid shield or Al-mylar wrapped
- Jacket: Durable XLPE outer covering
Technical Parameters
Rated temperature: 150°C
Rated Voltage: 300V
Product Specifications
| Product Number |
Conductor |
Size AWG |
Conductor Dia. (mm) |
Insulation Thickness (mm) |
Nom. Dia. (mm) |
Max. Cond. Resistance Ω/km |
| HT21414**101 |
3C |
28 |
0.38 |
0.26 |
0.80 |
223 |
| HT21414**102 |
3C |
26 |
0.48 |
0.26 |
0.90 |
140 |
| HT21414**103 |
3C |
24 |
0.60 |
0.26 |
1.12 |
87.6 |
| HT21414**104 |
3C |
22 |
0.76 |
0.26 |
1.30 |
55.4 |
Note: Optional core wire configurations available (2C-50C) with various shielding options.
Company Profile
Established in 2004 with $9 million USD capital investment, our headquarters in Kunshan spans 14,980 square meters. In 2020, we expanded with a new Nantong facility featuring 100 million RMB investment across 34,000 square meters.
Certified with ISO9001, ISO14001, IATF16949, and ISO13485 systems, all products meet CCC, UL, CUL, CE, CSA, and ETL safety standards. We operate globally with a commitment to honesty, innovation, and environmental protection.
Certifications
Production & Shipping
Frequently Asked Questions
What products do you supply?
We manufacture consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
What certifications do you hold?
Our products are certified with UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL standards.
Can we request samples before ordering?
Yes, we provide samples for evaluation prior to bulk orders.
What is your typical production lead time?
Standard orders complete in 2-3 weeks (5-6 weeks during peak seasons).
How do you ensure product quality?
We conduct pre-production sampling and final inspections before shipment.
