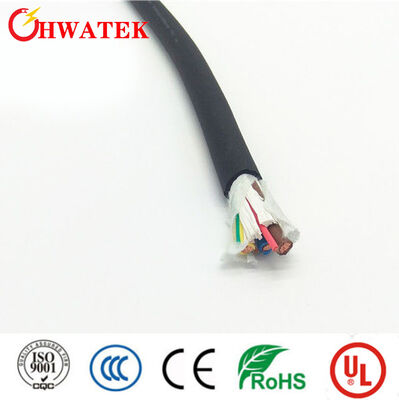

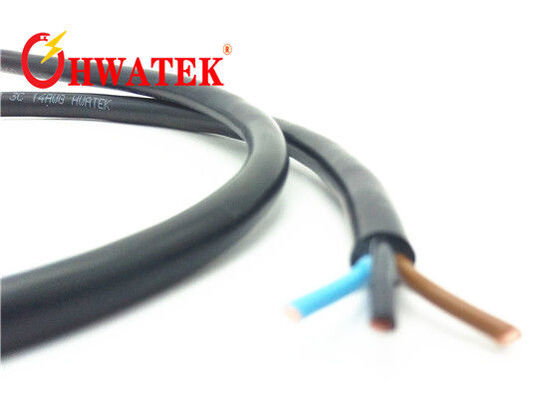

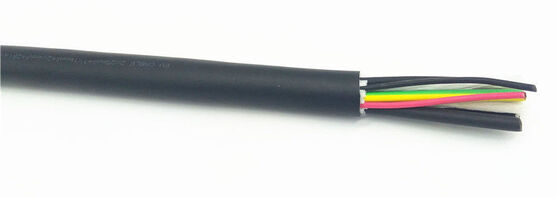

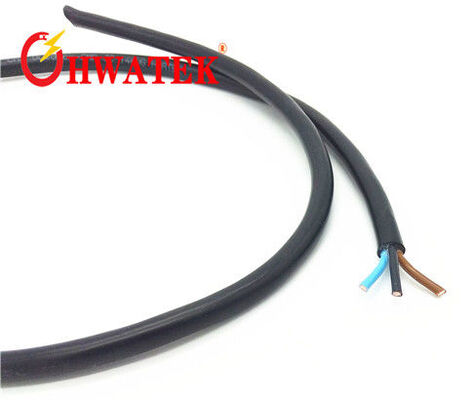

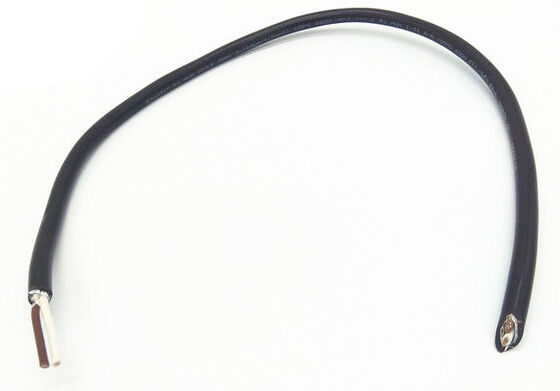

High-Flexible TPU Sheath Abrasion Resistant EV Charging Cable for Electric Vehicle Charging

Large Image : High-Flexible TPU Sheath Abrasion Resistant EV Charging Cable for Electric Vehicle Charging

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	TPU
Insulation Material:	TPE	Material Shape:	Round Wire
Rated Voltage:	450/750V AC	Rated Temperature:	-40ºC-90ºC
Flame Standard:	IEC60332-1-3, FT1, FT2	Voltage Withstand:	DC 2.5kV/15min (Power Wire), DC 1.5kV/15min (Signal Wire)
Conductor Type:	Stranded, Tinned Or Bare Copper	Assembly Configuration:	10~70(2~5cores)+0.5~0.75P)(1~10cores)
Oil Resistance:	Yes	UV Resistance:	Yes
Moisture Proof:	Yes	High Flexibility:	Yes
High Flame:	Yes
Highlight:	TPU Sheath EV Charging Cable , Abrasion Resistant Electric Vehicle Charging Cable , High-Flexible EV Power Cable

EV Charging Cable EVDC-RS90U

Key Advantages

High flexibility with excellent bending capability
Oil resistant construction
UV resistant for outdoor applications
High flame resistance rating
Moisture-proof design

Application Range

Connection wire for EV AC charging equipment
EV AC charging stations and charging piles

Cable Construction

Conductor: Stranded, tinned or bare copper

Insulation: Thermoplastic Elastomer

Assembly: 10~70mm² (2~5 cores) + 0.5~0.75mm² (1~10 cores)

Non-woven wrap

Sheath: TPE (Thermoplastic Elastomer)

Compliance Standards

CQC1103~1105-2015

RoHS and REACH Compliant

Technical Specifications

Parameter	Specification
Rated Voltage	450/750V AC
Temperature Range	-40°C to +90°C
Flame Rating	IEC60332-1-3, FT1, FT2
Voltage Withstand Test (Power Wire)	DC 2.5kV/15min (1.0~70mm²)
Voltage Withstand Test (Signal Wire)	DC 1.5kV/15min (0.5~0.75mm²)

Company Profile

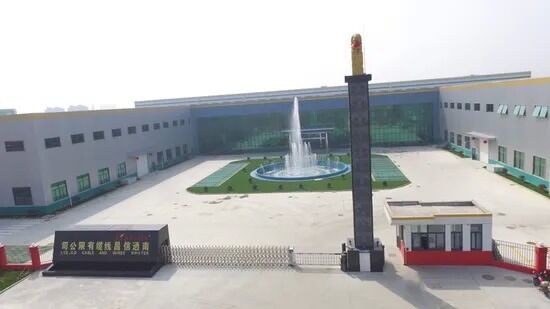

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.

With ISO9001, ISO14001, IATF16949, and ISO13485 system certifications, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers across various industries through our established sales system, guided by our management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
