80 º C 1000V Flexible PVC Insulated Single Core Wire

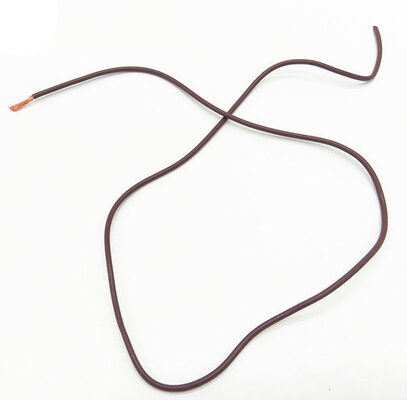

Large Image : 80 º C 1000V Flexible PVC Insulated Single Core Wire

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Type:	Stranded, Tinned Or Bare Copper	Conductor Standard:	IEC60228 CL5
Insulation Material:	Special PVC	Sheath Material:	PUR
Rated Voltage:	1000 V	Temperature Range:	-40~80ºC
Flame Standard:	IEC60332-1-3, FT1, FT2	Oil Resistance:	60 ºC Or 80 ºC Oil
Voltage Test:	AC 2.5kV/1min	Flex Bending Radius:	7.5x Cable Ø
Fixed Bending Radius:	4x Cable Ø	Low Temp Flexibility:	-40°C
Halogen-free:	Yes	Quantity Per Roll:	305m, 610m Or As Request
Material Shape:	Round Wire
Highlight:	80ºC PVC insulated single core wire , 1000V flexible single conductor cable , high-temperature PVC insulated electrical wire

80°C 1000V Flexible PVC Insulated Single Core Wire

Construction

Conductor: Stranded, tinned or bare copper, IEC60228 CL5
Insulation: Special PVC
Sheath: PUR

Standards & Compliance

International: UL758, UL1581, UL2556
RoHS Compliant
REACH Compliant

Technical Specifications

Rated Voltage	1000 V
Rated Temperature	-40°C to 80°C
Flame Rating	IEC60332-1-3, FT1, FT2
Oil Resistance	60°C or 80°C Oil
Voltage Withstand Test	AC 2.5kV/1min

Minimum Bending Radius

Flexing: 7.5x cable diameter
Fixed Installation: 4x cable diameter

Key Properties

Halogen-free
Flexible at low temperatures down to -40°C
Resistant against pressure
Overroll steady
Cut and scratchproof

Certifications

UL, CUL, CE
