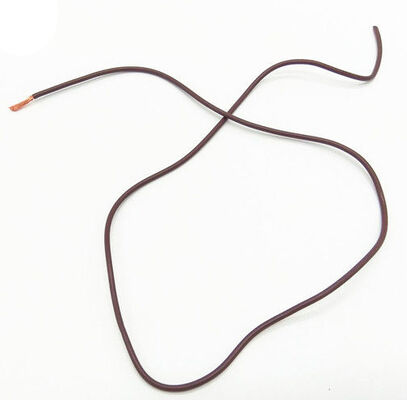

UL1013 16-30 AWG 750V Single Core PVC Insulated Cable Wire

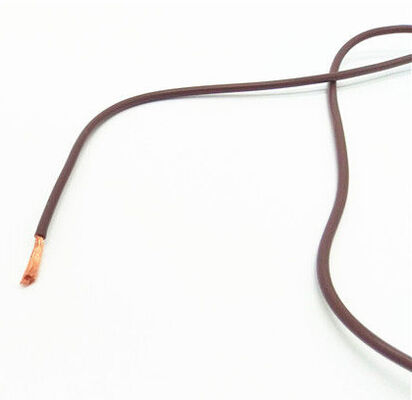

Large Image : UL1013 16-30 AWG 750V Single Core PVC Insulated Cable Wire

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Type:	Solid Or Stranded	Insulation Material:	PVC
Rated Voltage:	300V	Rated Temperature:	80ºC
Flame Rating:	VW-1, FT1, FT2	Oil Resistance:	60ºC Or 80ºC Oil
Voltage Test:	AC 2.0kV/1min	Conductor Diameter:	0.30mm To 1.50mm
Resistance:	14.6Ω/km To 381Ω/km	Insulation Thickness:	0.23mm Avg, 0.18mm Min
Outer Diameter:	0.9mm To 2.1mm	AWG Range:	16-30 AWG
Conductor Construction:	Tinned Copper Stranded	Quantity Per Roll:	305m, 610m Or As Request
Printing Specification:	E258652 AWM STYLE 1061 AWGXX 80ºC 300V VW-1 ---c AWM I A/B 80ºC 300V FT1 -LF-HWATEK
Highlight:	UL1013 PVC insulated cable wire , 750V single core wire , 16-30 AWG single conductor cable

UL1013 16-30 AWG 750V Single Core PVC Insulated Cable Wire

Construction & Standards

Conductor: Solid or Stranded
Insulation: PVC

Compliance Standards

UL758 UL1581 UL2556 RoHS REACH

Technical Specifications (UL 1061)

Rated Voltage: 300V
Rated Temperature: 80ºC
Flame Rating: VW-1, FT1, FT2
Oil Resistance: 60ºC or 80ºC Oil
Voltage Withstand Test: AC 2.0kV/1min
Printing: E258652 AWM STYLE 1061 AWGXX 80ºC 300V VW-1 ---c AWM I A/B 80ºC 300V FT1 -LF-HWATEK

Product Specifications

Part No.	Size (AWG)	Construction	Dia. (mm)	Resistance (Ω/km)	Avg. Thick. (mm)	Min. Thick. (mm)	Outer Dia. (mm)
HT1600006	30	7/0.10	0.30	381	0.23	0.18	0.9±0.05
HT2002233	28	45/0.05	0.38	239	0.23	0.18	0.9±0.05
HT2003670	26	7/0.16	0.48	150	0.23	0.18	1.0±0.05
HT2003616	24	7/0.20	0.60	87.6	0.23	0.18	1.2±0.05
HT1702637	22	7/0.254	0.76	59.4	0.23	0.18	1.3±0.05
HT2002680	20	7/0.32	0.97	36.7	0.23	0.18	1.5±0.05
HT2003213	18	34/0.18	1.21	23.2	0.23	0.18	1.8±0.10
HT1200581	16	26/0.254	1.50	14.6	0.23	0.18	2.1±0.10

Certifications

UL CUL CE
