Flry-a Single Core Automotive Electrical Cable PVC Insulation Tinned / Bare Copper Conductor

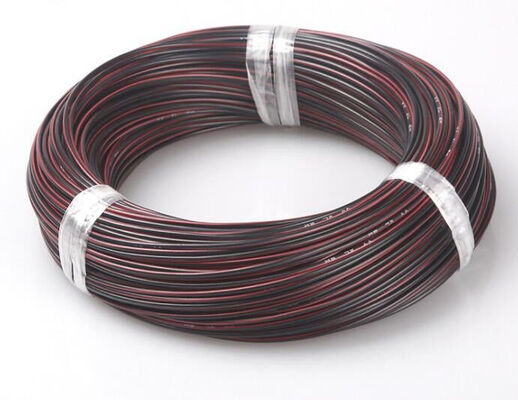

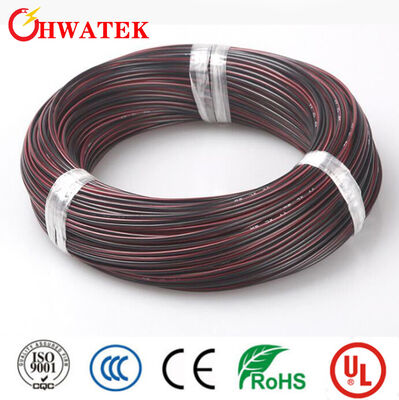

Large Image : Flry-a Single Core Automotive Electrical Cable PVC Insulation Tinned / Bare Copper Conductor

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Tinned Or Bare Copper	Insulation Material:	PVC
Material Shape:	Round Wire	Rated Voltage:	50V
Rated Temperature:	80ºC	Voltage Withstand:	AC 1.0kV/1min
Conductor Area:	0.22, 0.35, 0.5, 0.75, 1.0, 1.5, 2.5 Mm²	Strand Count:	7/0.21, 7/0.26, 19/0.19, 19/0.23, 19/0.26, 19/0.32, 19/0.41
Insulation Thickness:	0.20, 0.22, 0.24, 0.28 Mm	Nominal Diameter:	1.20, 1.30, 1.60, 1.90, 2.10, 2.40, 3.00 Mm
Max Conductor Resistance:	86.5, 54.5, 38.2, 25.4, 19.1, 13.0, 7.8 Ω/km	Roll Length:	305m, 610m Or As Request
Oil Resistance:	Yes	High Temperature Resistance:	Yes
Ozone Resistance:	Yes
Highlight:	single core automotive cable PVC insulation , tinned copper conductor automotive wire , bare copper automotive electrical cable

Flry-a Single Core Automotive Electrical Cable

Construction

Conductor: Stranded, tinned or bare copper
Insulation: PVC

Standards Compliance

International: DIN 72551-6/1996
RoHS and REACH Compliant

Technical Specifications

Rated Voltage: 50V
Rated Temperature: 80°C

Product Characteristics

Uniform insulation thickness for easy stripping and cutting
Resistant to oil, high temperature, ozone, and abrasion
High flexibility with excellent thermo and mechanical strength
Voltage withstand test: AC 1.0kV/1min

Detailed Specifications

Conductor Area (mm²)	Stranding (No./mm)	Insulation Thickness (mm)	Nominal Diameter (mm)	Max. Conductor Resistance (20°C) Ω/km
0.22	7/0.21	0.20	1.20	86.5
0.35	7/0.26	0.20	1.30	54.5
0.5	19/0.19	0.22	1.60	38.2
0.75	19/0.23	0.24	1.90	25.4
1.0	19/0.26	0.24	2.10	19.1
1.5	19/0.32	0.24	2.40	13.0
2.5	19/0.41	0.28	3.00	7.8
