High Flexibility Avss Automotive PVC Car Primary Cable Wire

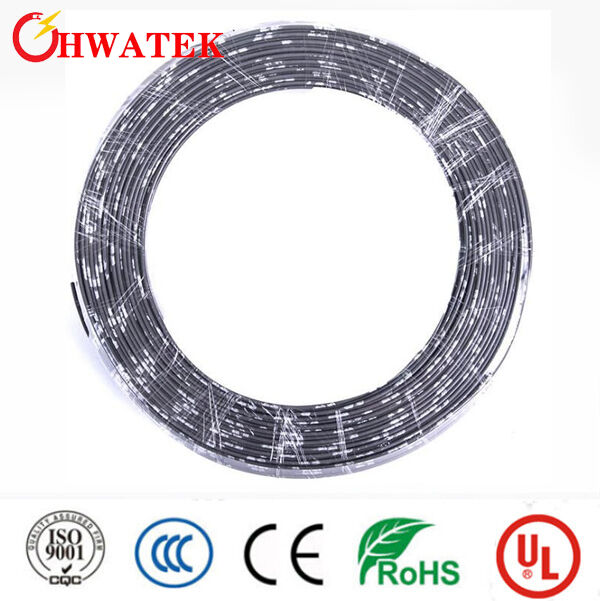

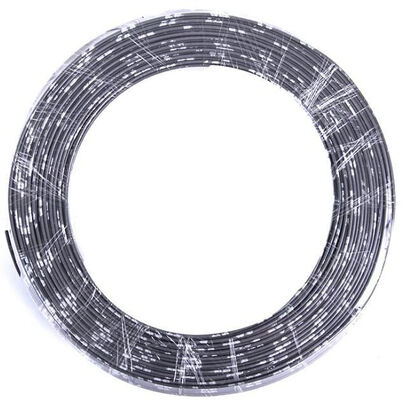

Large Image : High Flexibility Avss Automotive PVC Car Primary Cable Wire

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Model NO.:	AVVS	Sheath Material:	N/a
Insulation Material:	PVC	Material Shape:	Round Wire
Conductor Material:	Stranded, Tinned Or Bare Copper	Rated Voltage:	50V
Rated Temperature:	80ºC	Voltage Withstand:	AC 1.0kV/1min
Conductor Area:	0.3, 0.5, 0.85, 1.25, 2, 0.3f, 0.5f, 0.75f, 1.25f, 2f	Conductor Strands:	7/0.26, 7/0.32, 16/0.26, 7/0.40, 19/0.29, 19/0.37, 19/0.16, 19/0.19, 19/0.23, 37/0.21, 37/0.26
Insulation Thickness:	0.30mm, 0.40mm	Nominal Diameter:	1.40mm, 1.60mm, 1.80mm, 2.10mm, 2.70mm, 2.60mm
Max Conductor Resistance:	50.2, 32.7, 21.7, 20.8, 14.9, 9.00, 48.9, 34.6, 23.6, 14.7, 9.50 Ω/km	Quantity Per Roll:	305m, 610m Or As Request
Transport Package:	Rolled In Reels, Packed In Pallets
Highlight:	flexible automotive PVC cable wire , AVSS car primary wire , high flexibility automotive cable

High Flexibility AVSS Automotive PVC Car Primary Cable Wire

Construction

Conductor: Stranded, tinned or bare copper
Insulation: PVC

Standards

International: JASO D 611-94

RoHS, REACH Compliant

Technical Data

Rated voltage: 50V
Rated Temperature: 80ºC

Product Characteristics

Uniform insulation thickness for easy stripping and cutting
Resistant to oil, high temperature, ozone and abrasion
High flexibility with excellent thermo and mechanical strength
Voltage withstand test: AC 1.0kV/1min

Specifications

Conductor	Insulation	Max. Cond. Resistance (200C) Ω/km
NOM. AREA OF COND.	NO./mm	Nom. Thickness mm	Nom. Dia. mm
0.3	7/0.26	0.30	1.40	50.2
0.5	7/0.32	0.30	1.60	32.7
0.85	16/0.26	0.30	1.80	21.7
0.85	7/0.40	0.30	1.80	20.8
1.25	19/0.29	0.30	2.10	14.9
2	19/0.37	0.40	2.70	9.00
0.3f	19/0.16	0.30	1.40	48.9
0.5f	19/0.19	0.30	1.60	34.6
0.75f	19/0.23	0.30	1.80	23.6
1.25f	37/0.21	0.30	2.10	14.7
2f	37/0.26	0.40	2.60	9.50
