Sxl Primary XLPE Car Vehicle Automotive Electrical Wire

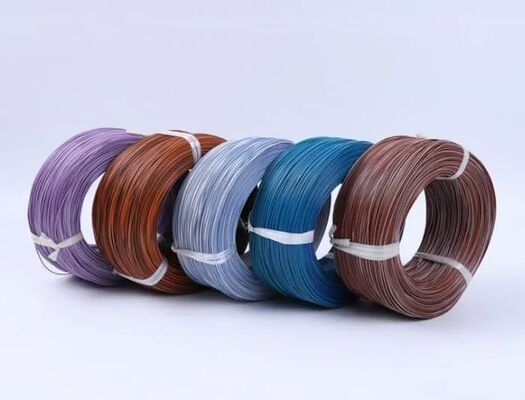

Large Image : Sxl Primary XLPE Car Vehicle Automotive Electrical Wire

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Stranded, Tinned Or Bare Copper	Insulation Material:	XLPE
Rated Voltage:	50V	Rated Temperature:	125ºC
Voltage Withstand:	AC 1.0kV/1min	Conductor AWG:	20, 18, 16, 14, 12, 10, 8
Conductor Strands:	26/0.16, 41/0.16, 26/0.254, 41/0.254, 65/0.254, 65/0.32, 55/0.45	Insulation Thickness:	0.74mm, 0.76mm, 0.81mm, 0.89mm, 0.94mm, 1.04mm, 1.08mm
Nominal Diameter:	2.42mm, 2.68mm, 3.09mm, 3.66mm, 4.24mm, 5.07mm, 6.03mm	Max Conductor Resistance:	37.56 Ω/km, 24.82 Ω/km, 15.06 Ω/km, 9.65 Ω/km, 6.07 Ω/km, 3.73 Ω/km, 2.23 Ω/km
Material Shape:	Round Wire	Roll Length:	305m, 610m Or As Request
Oil Resistance:	Yes	High Temperature Resistance:	Yes
Ozone Resistance:	Yes
Highlight:	XLPE automotive electrical wire , primary car wire with warranty , vehicle electrical cable XLPE

SXL Primary XLPE Car Vehicle Automotive Electrical Wire

Construction

Conductor: Stranded, tinned or bare copper
Insulation: XLPE

Standards

International: SAE J1128
RoHS, REACH Compliant

Technical Data

Rated voltage: 50V
Rated Temperature: 125ºC

Product Characteristics

Uniform insulation thickness for easy stripping and cutting
Resistant to oil, high temperature, ozone and abrasion
High flexibility with excellent thermo and mechanical strength
Voltage withstand test: AC 1.0kV/1min

Specifications

Conductor AWG	NO./mm	Nom. Thickness mm	Nom. Dia. mm	Max. Cond. Resistance (200C) Ω/km
20	26/0.16	0.74	2.42	37.56
18	41/0.16	0.76	2.68	24.82
16	26/0.254	0.81	3.09	15.06
14	41/0.254	0.89	3.66	9.65
12	65/0.254	0.94	4.24	6.07
10	65/0.32	1.04	5.07	3.73
8	55/0.45	1.08	6.03	2.23
