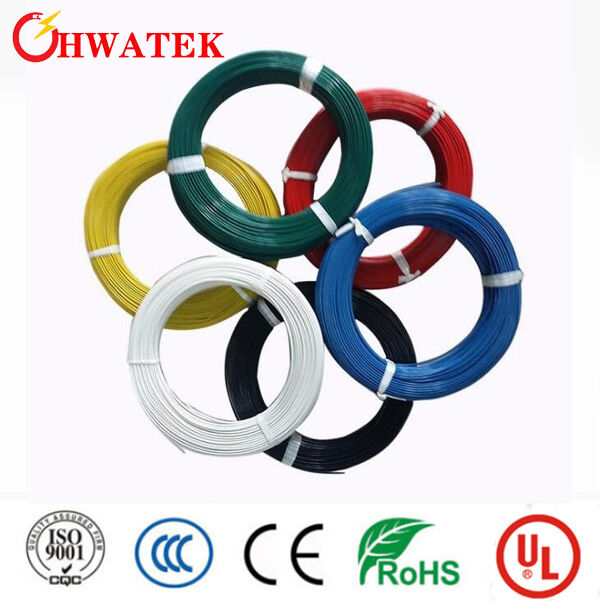

PVC Insulation Gpt Copper Automotive Primary Wire Auto Electrical Wire

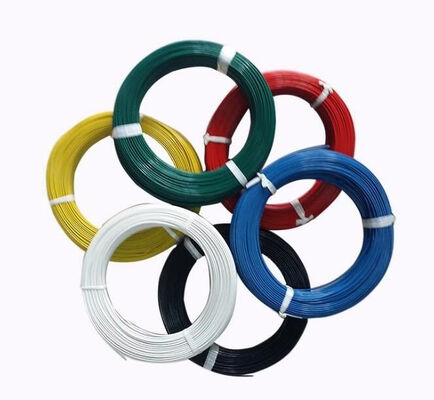

Large Image : PVC Insulation Gpt Copper Automotive Primary Wire Auto Electrical Wire

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Stranded, Tinned Or Bare Copper	Insulation Material:	PVC
Shape:	Round Wire	Rated Voltage:	50V
Rated Temperature:	105ºC	Voltage Withstand:	AC 1.0kV/1min
AWG 20 Conductor:	7/0.40	AWG 20 Thickness:	0.60 Mm
AWG 20 Diameter:	2.40 Mm	AWG 20 Resistance:	21.40 Ω/km
AWG 18 Conductor:	19/0.26	AWG 18 Thickness:	0.60 Mm
AWG 18 Diameter:	2.50 Mm	AWG 18 Resistance:	18.50 Ω/km
Quantity Per Roll:	305m, 610m Or As Request
Highlight:	PVC insulated copper automotive wire , automotive primary electrical wire , copper core auto cable wire

PVC Insulation Gpt Copper Automotive Primary Wire Auto Electrical Wire

Construction

Conductor: Stranded, tinned or bare copper
Insulation: PVC

Standards Compliance

International: SAE J1128
RoHS, REACH Compliant

Technical Specifications

Rated voltage: 50V
Rated Temperature: 105ºC

Product Characteristics

Uniform insulation thickness for easy stripping and cutting
Resistant to oil, high temperature, ozone and abrasion
High flexibility with excellent thermo and mechanical strength
Voltage withstand test: AC 1.0kV/1min

Specifications

Conductor AWG	NO./mm	Nom. Thickness mm	Nom. Dia. mm	Max. Cond. Resistance (200C) Ω/km
20	7/0.40	0.60	2.40	21.40
18	19/0.26	0.60	2.50	18.50
16	19/0.287	0.60	2.64	15.81
14	19/0.361	0.60	3.01	10.01

Company Profile

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.

With ISO9001, ISO14001, IATF16949, and ISO13485 system certifications, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers across various industries through our established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
