Primary Auto Electrical Wiring, Single Core AVS Automotive Wire and Cable Roll

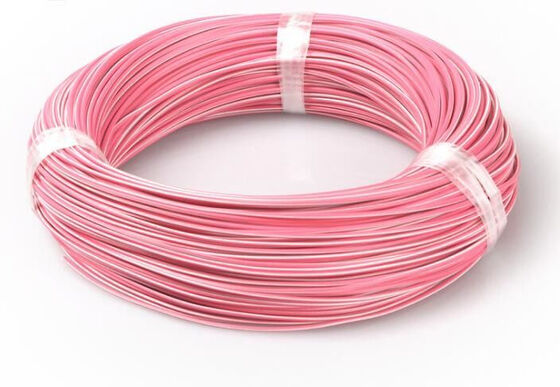

Large Image : Primary Auto Electrical Wiring, Single Core AVS Automotive Wire and Cable Roll

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Sheath Material:	N/a	Insulation Material:	PVC
Material Shape:	Round Wire	Rated Voltage:	50V
Rated Temperature:	100ºC	Voltage Withstand:	AC 1.0kV/1min
Conductor Material:	Stranded, Tinned Or Bare Copper	Nominal Area:	0.3, 0.5, 0.85, 1.25, 2, 3, 5, 0.3f, 0.5f, 0.75f, 1.25f, 2f
Conductor Strands:	7/0.26, 7/0.32, 16/0.26, 11/0.32, 16/0.32, 26/0.32, 41/0.32, 65/0.32, 15/0.18, 20/0.18, 30/0.18, 50/0.18, 37/0.26	Insulation Thickness:	0.5mm, 0.6mm, 0.7mm, 0.4mm
Nominal Diameter:	1.80mm, 2.00mm, 2.20mm, 2.70mm, 3.10mm, 3.80mm, 4.60mm, 2.50mm, 2.60mm	Max Conductor Resistance:	50.2 Ω/km, 32.7 Ω/km, 22.0 Ω/km, 20.8 Ω/km, 14.3 Ω/km, 8.81 Ω/km, 5.59 Ω/km, 3.52 Ω/km, 48.9 Ω/km, 36.7 Ω/km, 24.4 Ω/km, 14.7 Ω/km, 9.50 Ω/km
Quantity Per Roll:	305m, 610m Or As Request	Transport Package:	Rolled In Reels, Packed In Pallets
Color Options:	Optional
Highlight:	single core automotive wire , AVS automotive cable roll , auto electrical wiring cable

Primary Auto Electrical Wiring, Single Core AVS Automotive Wire and Cable Roll

Construction

Conductor: Stranded, tinned or bare copper
Insulation: PVC

Standards

International: JASO D 611-94
RoHS, REACH Compliant

Technical Data

Rated voltage: 50V
Rated Temperature: 100ºC

Product Characteristics

Uniform insulation thickness for easy stripping and cutting
Resistant to oil, high temperature, ozone and abrasion
High flexibility with excellent thermo and mechanical strength
Voltage withstand test: AC 1.0kV/1min

Specifications

Conductor Area (mm²)	Stranding (No./mm)	Insulation Thickness (mm)	Nominal Diameter (mm)	Max. Conductor Resistance (20°C) Ω/km
0.3	7/0.26	0.5	1.80	50.2
0.5	7/0.32	0.5	2.00	32.7
0.85	16/0.26	0.5	2.20	22.0
0.85	11/0.32	0.5	2.20	20.8
1.25	16/0.32	0.5	2.70	14.3
2	26/0.32	0.5	3.10	8.81
3	41/0.32	0.6	3.80	5.59
5	65/0.32	0.7	4.60	3.52
0.3f	15/0.18	0.5	1.80	48.9
0.5f	20/0.18	0.5	2.00	36.7
0.75f	30/0.18	0.5	2.20	24.4
1.25f	50/0.18	0.5	2.50	14.7
2f	37/0.26	0.40	2.60	9.50
