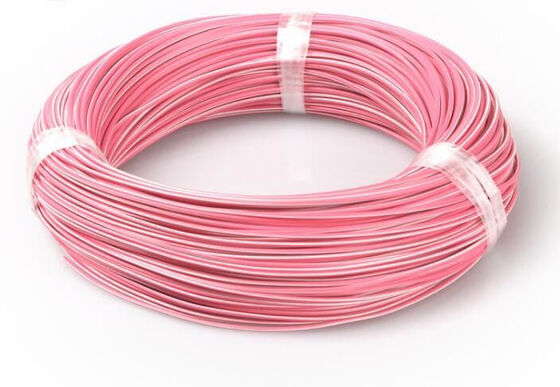

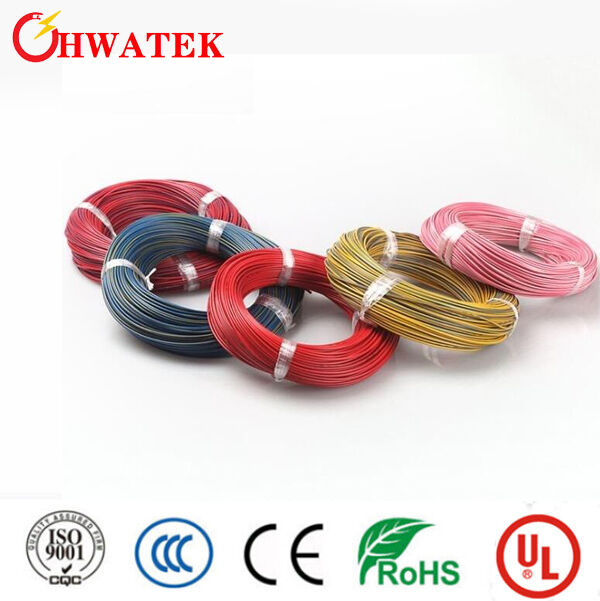

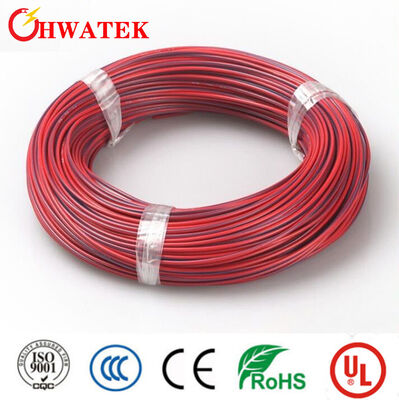

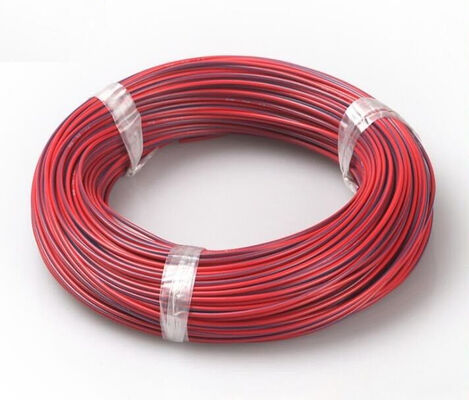

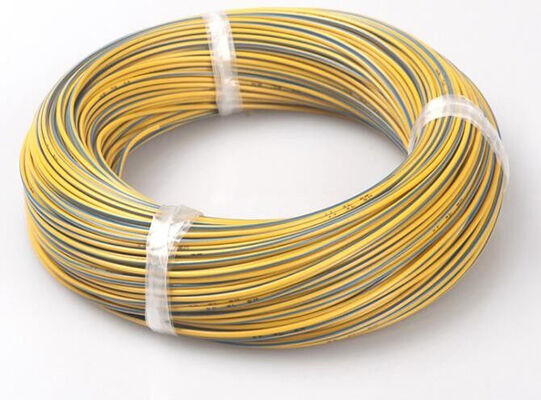

UL 2095 Flexible Cable with PVC, SR-PVC, PE or PP Insulation
Application
For internal interconnection of electronic equipment
Application Standards
UL758, UL1581 & CSA C22.2 No.210
Product Characteristics
- Excellent insulation performance with stable chemical properties
- Effective electromagnetic interference resistance through Aluminum foil, Mylar and Braiding shield
- Heat resistance, anti-acid properties, and environmental protection
- Passes UL VW-1 and CSA FT1 vertical flame tests
Construction
- Tinned or bare copper, stranded or single conductor (32-4AWG)
- PVC, SR-PVC, PE or PP insulation
- Two or more single-core wires twisted into pairs or cabled
- Tinned or bare copper wire with spiral or braid shield or Al-mylar wrapped shield
- PVC jacket
Technical Parameters
Rated temperature: 80°C | Rated Voltage: 300V
| Product Number |
Conductor |
Insulation |
Max. Cond. Resistance (20°C) Ω/km |
Min Insulation Resistance (20°C) MΩ/km |
Dielectric Strength (AC) V/1min |
| HT1201096 |
4C*28
7/0.127
0.38mm |
0.23mm
0.85mm |
239 |
15 |
2000 |
| HT1300520 |
3C*26
18/0.10
0.49mm |
0.23mm
1.00mm |
140 |
15 |
2000 |
| HT1201021 |
5C*24
24/0.10
0.57mm |
0.30mm
1.20mm |
108 |
15 |
2000 |
| HT1300574 |
6P*22
7/0.254
0.76mm |
0.23mm
1.27mm |
59.4 |
15 |
2000 |
| HT1200046 |
2C*20
26/0.16
0.94mm |
0.23mm
1.50mm |
36.7 |
15 |
2000 |
| HT1200505 |
2C*18
16/0.0254
1.17mm |
0.44mm
2.10mm |
23.2 |
15 |
2000 |
| HT1300816 |
2C*16
19/0.30
1.50mm |
0.38mm
2.30mm |
14.6 |
15 |
2000 |
