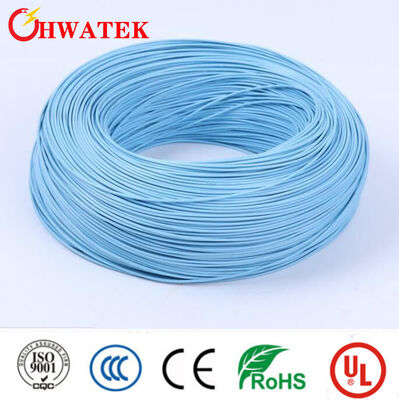

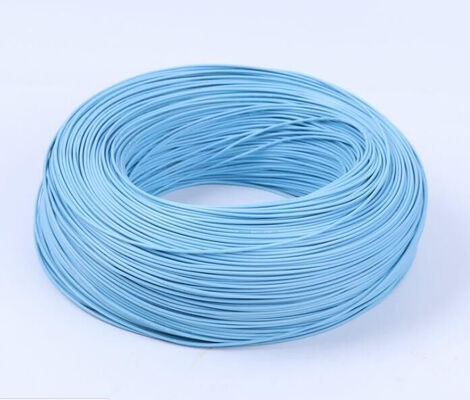

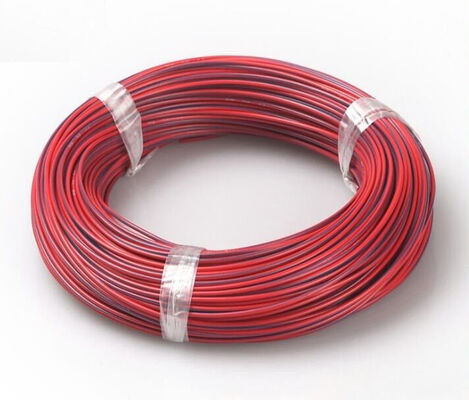

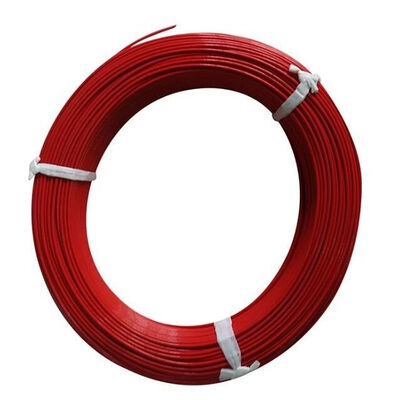

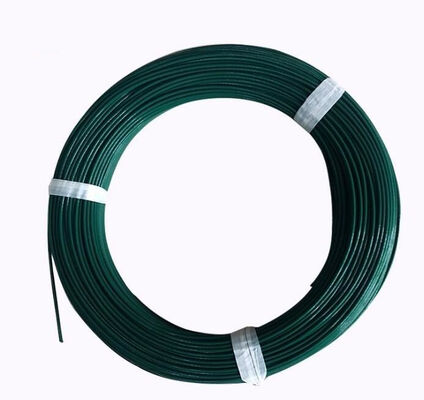

IATF16949 Colored Sxl Primary Automotive XLPE Car Vehicle Electrical Wire

Large Image : IATF16949 Colored Sxl Primary Automotive XLPE Car Vehicle Electrical Wire

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Stranded, Tinned Or Bare Copper	Insulation Material:	XLPE
Rated Voltage:	50V	Rated Temperature:	125ºC
Voltage Withstand:	AC 1.0kV/1min	Conductor AWG:	20, 18, 16, 14, 12, 10, 8
Conductor Strands:	26/0.16, 41/0.16, 26/0.254, 41/0.254, 65/0.254, 65/0.32, 55/0.45	Insulation Thickness:	0.74mm, 0.76mm, 0.81mm, 0.89mm, 0.94mm, 1.04mm, 1.08mm
Nominal Diameter:	2.42mm, 2.68mm, 3.09mm, 3.66mm, 4.24mm, 5.07mm, 6.03mm	Max Conductor Resistance:	37.56 Ω/km, 24.82 Ω/km, 15.06 Ω/km, 9.65 Ω/km, 6.07 Ω/km, 3.73 Ω/km, 2.23 Ω/km
Material Shape:	Round Wire	Color Options:	Optional
Quantity Per Roll:	305m, 610m Or As Request	Oil Resistance:	Yes
High Temperature Resistance:	Yes
Highlight:	IATF16949 automotive XLPE wire , colored SXL primary wire , vehicle electrical cable wire

IATF16949 Colored SXL Primary Automotive XLPE Car Vehicle Electrical Wire

Construction

Conductor: Stranded, tinned or bare copper
Insulation: XLPE (Cross-Linked Polyethylene)

Standards & Compliance

International: SAE J1128
RoHS Compliant
REACH Compliant

Technical Specifications

Rated Voltage: 50V
Rated Temperature: 125°C

Product Characteristics

Uniform insulation thickness for easy stripping and cutting
Resistant to oil, high temperature, ozone, and abrasion
High flexibility with excellent thermo-mechanical strength
Voltage withstand test: AC 1.0kV/1min

Specifications

AWG	NO./mm	Nom. Thickness (mm)	Nom. Dia. (mm)	Max. Cond. Resistance (20°C) Ω/km
20	26/0.16	0.74	2.42	37.56
18	41/0.16	0.76	2.68	24.82
16	26/0.254	0.81	3.09	15.06
14	41/0.254	0.89	3.66	9.65
12	65/0.254	0.94	4.24	6.07
10	65/0.32	1.04	5.07	3.73
8	55/0.45	1.08	6.03	2.23

Company Profile

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.

With ISO9001, ISO14001, IATF16949, and ISO13485 system certificates, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers across various industries through our well-established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
