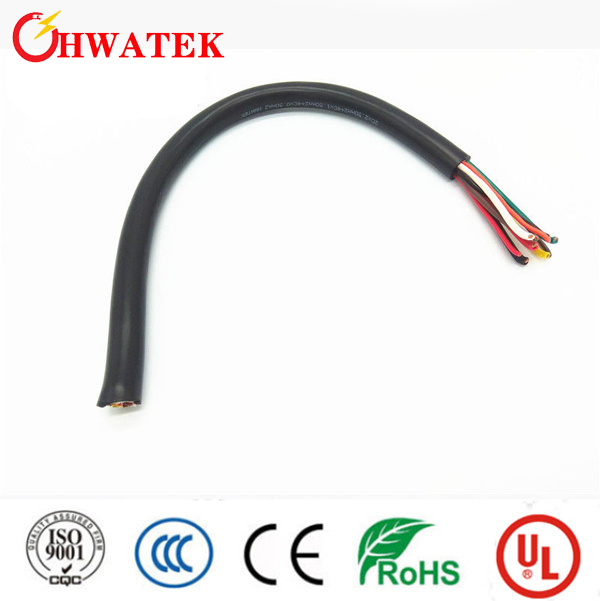

UL21521 XLPE Industrial Control Cable 305m Roll

Large Image : UL21521 XLPE Industrial Control Cable 305m Roll

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Model Number:	UL21521	Sheath Material:	XLPE
Insulation Material:	PVC, PE, XLPE	Material Shape:	Round Wire
Conductor Type:	Tinned Or Bare Copper	Conductor Stranding:	Stranded Or Single
AWG Range:	26-16AWG	Rated Temperature:	80ºC
Rated Voltage:	300V, 600V	Shield Type:	Spiral Or Braid Shield Or Al-mylar Wrapped Shield
Max Conductor Resistance:	140 Ω/km (for 26AWG)	Cable Shape:	Round, Flat, Or Oval-shaped
Quantity Per Roll:	305m, 610m Or As Request	Nominal Thickness:	0.26mm (Insulation)
Nominal Diameter:	0.90mm (for 26AWG)
Highlight:	UL21521 XLPE industrial control cable , 305m industrial flexible cable roll , XLPE insulated control cable

UL21521 Industrial Control Wire Cable

Product Specifications

Attribute	Value
Model NO.	UL21521
Sheath Material	XLPE
Insulation Material	PVC, PE, XLPE
Material Shape	Round Wire
Range of Application	Industrial Control
Brand	Hwatek
Color	Optional
Qty/Roll	305m, 610m or as Request
OEM/ODM	Accepted
Package	Reels or Rolls
Transport Package	Rolled in Reels, Packed in Pallets
Trademark	Hwatek
Origin	China
HS Code	8544492100

Product Description

Our UL21521 industrial control wire cables are designed for communication equipment, instruments, industrial control systems, and electronic/electrical equipment applications.

Key Features

Excellent insulation performance with stable chemical properties
Passes UL VW-1 and CSA FT1 vertical flame tests
High-temperature resistance, anti-acid, and environmentally friendly

Construction

Conductor: Tinned or bare copper, stranded or single conductor (26-16AWG)
Insulation: PVC, PE, or XLPE
Configuration: Two or more single-core wires twisted into pairs or cabling to form round, flat, or oval-shaped cables
Shielding: Tinned or bare copper wire, spiral or braid shield, or Al-mylar wrapped shield
Jacket: XLPE

Technical Parameters

Rated temperature: 80°C
Rated Voltage: 300V, 600V

Technical Specifications

Product Number	Conductor	Insulation	Shield	Jacket	Max. Cond. Resistance (20°C) Ω/km
HT21521**102	3C, 26AWG, 7/0.16	0.26mm	0.025mm	0.80mm	140
HT21521**103	3C, 24AWG, 11/0.16	0.26mm	0.025mm	0.80mm	87.6
HT21521**104	3C, 22AWG, 17/0.16	0.26mm	0.025mm	0.80mm	55.4
HT21521**105	6C, 28AWG, 7/0.127	0.26mm	0.025mm	0.80mm	223
HT21521**106	6C, 26AWG, 7/0.16	0.26mm	0.025mm	1.00mm	140
HT21521**107	6C, 24AWG, 11/0.16	0.26mm	0.025mm	1.00mm	87.6

Note: Optional core wire number 2C-50C, and shielding options available.
