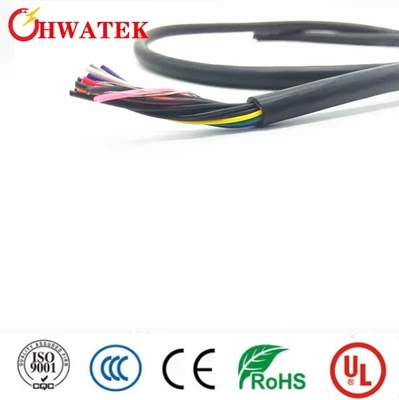

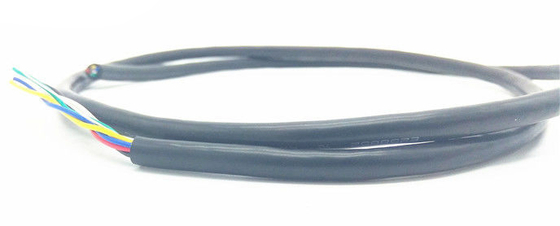

UL21414 XLPE Insulated Flexible Electric Wire Cable
Product Specifications
| Attribute |
Value |
| Model NO. |
UL21414 |
| Sheath Material |
XLPE |
| Insulation Material |
PVC, PE, XLPE |
| Material Shape |
Round Wire |
| Range of Application |
Industrial Control |
| Brand |
Hwatek |
| Color |
Optional |
| Qty/Roll |
305m, 610m or as Request |
| Shipping Mode |
Sea/Air/Rail |
| Transport Package |
Rolled in Reels, Packed in Pallets |
| Trademark |
Hwatek |
| Origin |
China |
| HS Code |
8544492100 |
Product Description
Products are used in communication equipment, instruments, industrial control systems, electronic and electrical equipment.
Application
Internal wiring or external interconnection of electronic equipment.
Application Standard
UL758 & UL1581 & CSA C22.2 No.210
Product Characteristics
- Excellent insulation performance, stable chemical properties
- Pass UL VW-1 and CSA FT1 vertical flame test
- High-temperature resistance, anti-acid, environmental protection
Construction
- Tinned or bare copper, stranded or single conductor
- PVC, PE, XLPE insulation
- Two or more single-core wires twisted into pair or cabling to form round, flat, or oval-shaped cable

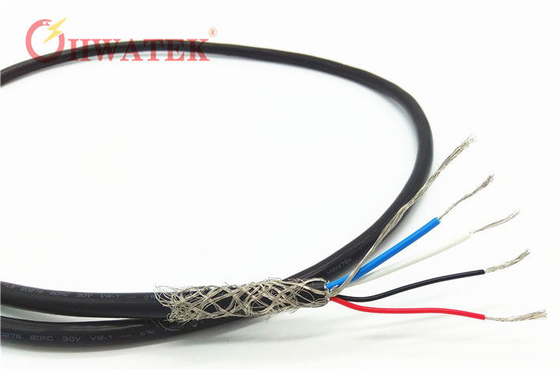

- Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
- XLPE jacket
Technical Parameters
Rated temperature: 150ºC
Rated Voltage: 300V
| Product Number |
Conductor |
Size AWG |
NO./mm |
Conductor Dia. mm |
Nom. Thickness mm |
Nom. Dia. mm |
Tape thick. mm |
Dia. of braid strand mm |
Nom. Thick. mm |
Nom. Dia. mm |
Max. Cond. Resistance (200C) Ω/km |
| HT21414**101 |
3C |
28 |
7/0.127 |
0.38 |
0.26 |
0.80 |
0.025 |
0.10 |
0.80 |
3.80 |
223 |
| HT21414**102 |
3C |
26 |
7/0.16 |
0.48 |
0.26 |
0.90 |
0.025 |
0.10 |
0.80 |
4.04 |
140 |
| HT21414**103 |
3C |
24 |
11/0.16 |
0.60 |
0.26 |
1.12 |
0.025 |
0.10 |
0.80 |
4.51 |
87.6 |
| HT21414**104 |
3C |
22 |
17/0.16 |
0.76 |
0.26 |
1.30 |
0.025 |
0.10 |
0.80 |
4.90 |
55.4 |
| HT21414**105 |
6C |
28 |
7/0.127 |
0.38 |
0.26 |
0.80 |
0.025 |
0.12 |
0.80 |
4.70 |
223 |
| HT21414**106 |
6C |
26 |
7/0.16 |
0.48 |
0.26 |
0.90 |
0.025 |
0.12 |
1.00 |
5.30 |
140 |
| HT21414**107 |
6C |
24 |
11/0.16 |
0.60 |
0.26 |
1.12 |
0.025 |
0.12 |
1.00 |
6.00 |
87.6 |
Remark: Optional core wire number 2C-50C, and shielding way
Company Profile
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Production Progress
Shipping
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish your orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
