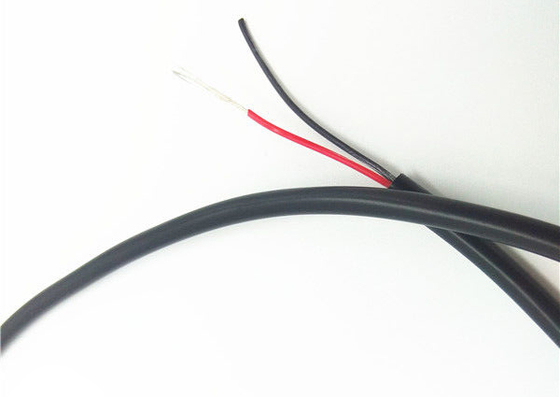

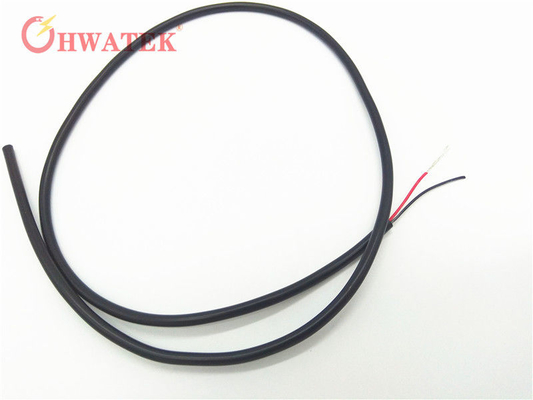

Flexible Power Supply Shielding PVC Jacket Copper Cables
Product Specifications
| Attribute |
Value |
| Sheath Material |
PVC |
| Insulation Material |
PVC |
| Material Shape |
Round Wire |
| Range of Application |
Industrial Control |
| Brand |
Hwatek |
| Color |
Optional |
| Qty/Roll |
305m,610m or as Request |
| Transport Package |
Rolled in Reels, Packed in Pallets. |
| Trademark |
Hwatek |
| Origin |
China |
| HS Code |
8544492100 |
Product Description
These flexible power supply cables are designed for use in engineering machinery, machine processing equipment, logistics delivery systems, lifting applications, and other industrial control environments.
Key Features
- Super flexible design for easy installation
- UV resistant for outdoor applications
- Anti-rat and termite protection
- Passes UL VW-1 and CSA FT1 vertical flame tests
Construction
- Stranded bare copper conductor (26-4/0AWG)
- PVC insulation
- Tinned or bare copper braiding shield (optional)
- Braiding coverage options: 70%, 80%, 85%, 90%, 95%
- PVC jacket
Technical Parameters
- Rated temperature: -40~105ºC
- Rated Voltage: 600/1000V
Product Specifications
| Product Number |
Cores |
Area mm² |
Conductor |
NO./mm |
Conductor Dia mm |
Nom. Thickness mm |
Nom. Dia. mm |
Max. Cond. Resistance (200C) Ω/km |
| HTD***023 |
2~7 |
4 |
81/0.25 |
2.59 |
1.51 |
5.60 |
18.30 |
4.95 |
| HTD***024 |
2~7 |
6 |
7/18/0.25 |
3.54 |
1.53 |
6.60 |
20.80 |
3.30 |
| HTD***025 |
2~7 |
10 |
7/30/0.25 |
4.58 |
1.61 |
7.80 |
23.80 |
1.91 |
| HTD***026 |
2~7 |
16 |
7/47/0.25 |
5.74 |
1.63 |
9.00 |
26.80 |
1.21 |
| HTD***027 |
2~5 |
25 |
7/73/0.25 |
7.17 |
1.67 |
10.50 |
30.80 |
0.780 |
| HTD***028 |
2~5 |
35 |
19/37/0.25 |
8.49 |
2.01 |
12.50 |
35.80 |
0.554 |
| HTD***029 |
2~40 |
50 |
19/54/0.25 |
10.26 |
2.52 |
15.30 |
42.80 |
0.386 |
Company Profile
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14,980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
With ISO9001, ISO14001, IATF16949, and ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers through our well-established sales system based on the management principles of HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certifications
Production Process
Shipping
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What certificates do you have?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can complete orders in 2-3 weeks, and 5-6 weeks during peak season.
Q: How do you guarantee product quality?
A: We provide pre-production samples before mass production and conduct final inspections before shipment.
Major Customers
