450/750V AC and DC Multicore HV EV Power Charging Cable Wire
Certification
General Administration of Quality Supervision, Inspection and Quarantine
| Certificate No. |
Product Types |
| CQC16011142377 |
EV-(R)SS, EV-(R)SSPS, EV-(R)S90S90, EV-(R)S90S90PS90, EV-(R)S90U, EV-(R)S90S90PU-450/750V |
Structure Diagram
Reference Standard
GB/T 33594-2017
Product Category
AC: EV-(R)S90U EV-(R)S90S90PU-450/750V 1.0-70(2-5Cores)+0.5-0.75(P/P2)(1-10Cores)
Construction
- Rated temperature: -40 ~ +90°C
- Rated voltage: AC450/750V
- Conductor: Stranded bare or tinned copper
- Insulation material: TPE
- Sheath material: TPU
Features
- Flexible construction
- Resistant to cold, oil (11 types), ozone, abrasion, UV
- Resistant to external pressure and thermal stress
- IEC60332-1 flammability test compliant
- Minimum bending radius 5xOD
- Easy installation
Applications
Suitable for all types of electric vehicles, charging piles, power stations, and charging stations.
Structural Parameter Table
| Category |
Wire Specifications |
Reference Current (A) |
Diameter Unshielded (mm) |
| EV-(R)SS, EV-(R)SSPS, EV-(R)S90S90, EV-(R)S90S90PS90, EV-(R)S90U, EV-(R)S90S90PU-450/750V |
3×2.5+2×0.75 |
18 |
12.7 | 11.1 |
| 3×4+2×0.75 |
25 |
14.4 | 12.8 |
| 3×6+2×0.75 |
34 |
16.3 | 14.5 |
| 5×2.5+2×0.75 |
18 |
15.3 | 13.7 |
| 5×4+2×0.75 |
25 |
17.8 | 16.0 |
| 5×6+2×0.75 |
34 |
19.8 | 17.8 |
| 5×10+2×0.75 |
50 |
22.9 | 20.7 |
| 5×16+2×0.75 |
67 |
27.5 | 25.1 |
Notes
- The detailed dimensions are subject to the product specifications.
- Other specifications can be designed and manufactured according to customer requirements.
- The color of the sheath is generally black or orange. Custom colors available upon request.
Company Profile

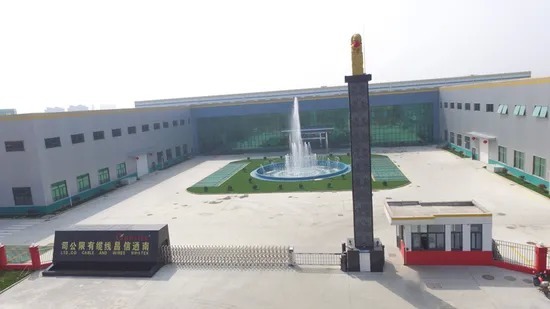

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14,980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34,000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates.
Certificates
Production Progress
Shipping
FAQ
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
Q: What certificates do you have?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish your orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How can you guarantee the product quality?
A: We always provide a pre-production sample before mass production and conduct final inspection before shipment.
