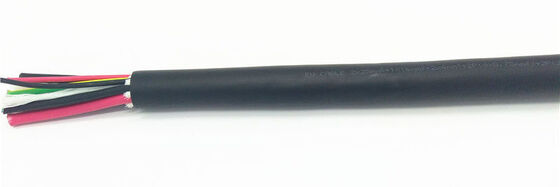

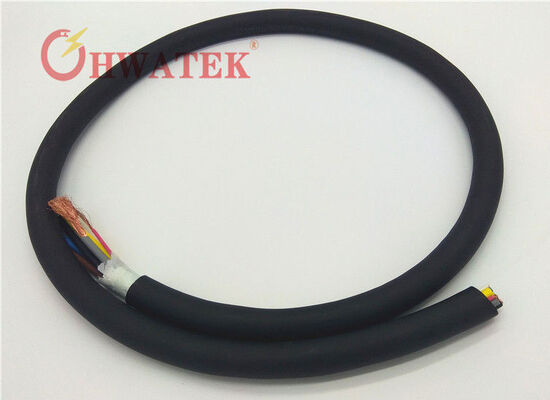

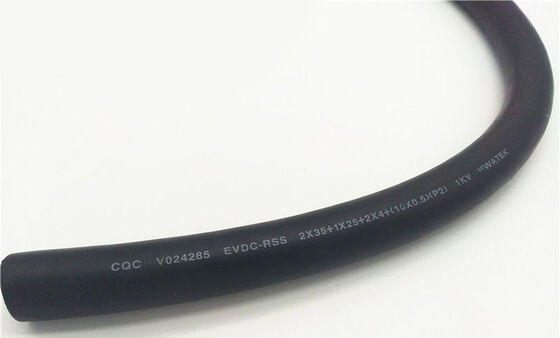

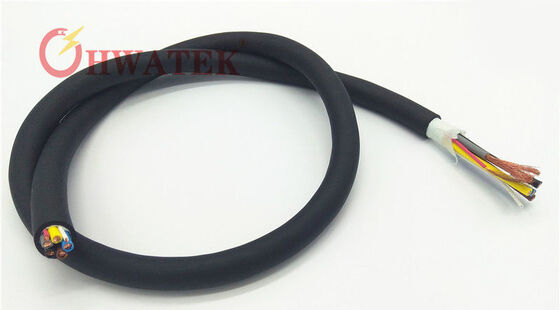

High Flexible Oil Resistant UV Resistant EV Charging Cable Electric Vehicle Charging Cable for AC Charging Stations

Large Image : High Flexible Oil Resistant UV Resistant EV Charging Cable Electric Vehicle Charging Cable for AC Charging Stations

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	TPE
Insulation Material:	TPE	Material Shape:	Round Wire
Rated Voltage:	450/750V AC	Rated Temperature:	-40ºC-90ºC
Flame Standard:	IEC60332-1-3, FT1, FT2	Voltage Test (Power):	DC 2.5kV/15min
Voltage Test (Signal):	DC 1.5kV/15min	Conductor Type:	Stranded, Tinned Or Bare
Assembly Cores:	10~70(2~5cores)+0.5~0.75P)(1~10cores)	Oil Resistance:	Yes
UV Resistance:	Yes	Moisture Proof:	Yes
High Flame:	Yes
Highlight:	High Flexible EV Charging Cable , Oil Resistant Electric Vehicle Charging Cable , UV Resistant EV Power Cable

EV Charging Cable Extension Cord EVDC-RS90S90

Key Advantages

High flexibility with excellent bending capability
Oil resistant construction
UV resistant for outdoor applications
High flame resistance rating
Moisture-proof design

Application Range

Connection wire between EV AC charging equipment
EV AC Charging stations and charging piles

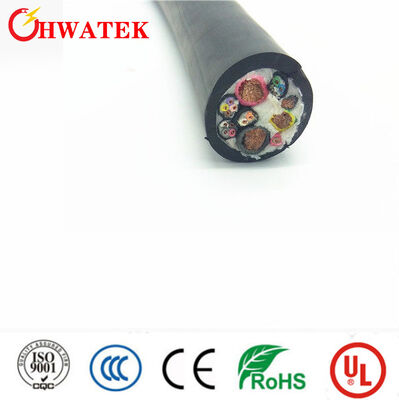

Cable Construction

Conductor: Stranded, tinned or bare copper
Insulation: Thermoplastic Elastomer
Assembly: 10~70(2~5 cores) + 0.5~0.75P (1~10 cores)
Wrap: Non-woven material
Sheath: TPE (Thermoplastic Elastomer)

Compliance Standards

CQC1103~1105-2015
RoHS and REACH Compliant

Technical Specifications

Parameter	Specification
Rated Voltage	450/750V AC
Temperature Range	-40ºC to 90ºC
Flame Rating	IEC60332-1-3, FT1, FT2
Voltage Withstand Test (Power Wire)	1.0~70mm²: DC 2.5kV/15min
Voltage Withstand Test (Signal Wire)	0.5~0.75mm²P: DC 1.5kV/15min

Company Profile

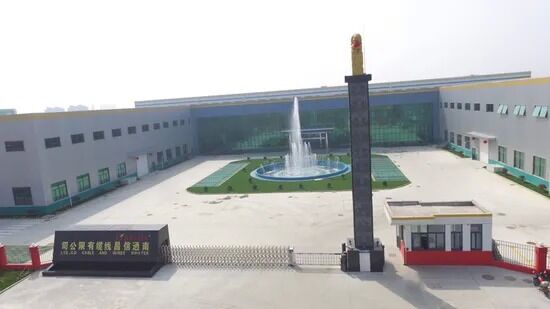

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters. With ISO9001, ISO14001, IATF16949, and ISO13485 system certifications, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers across various industries through our established sales system, guided by our management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
