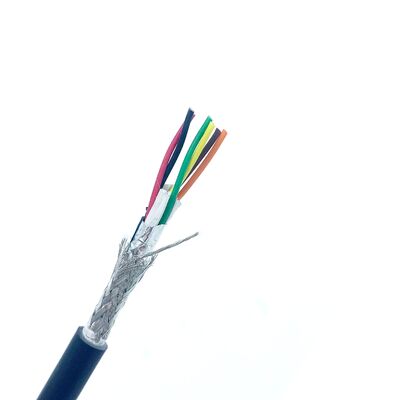

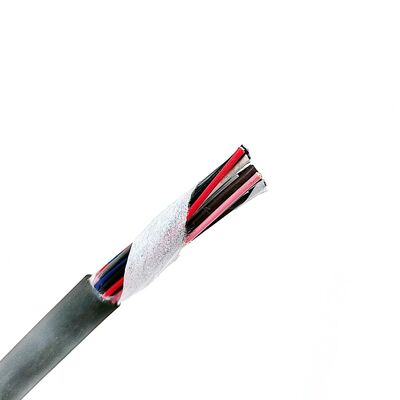

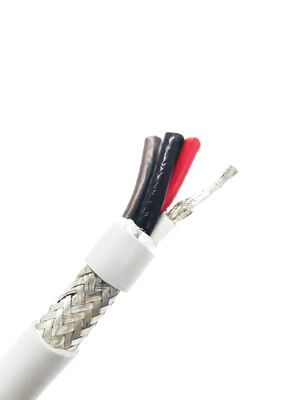

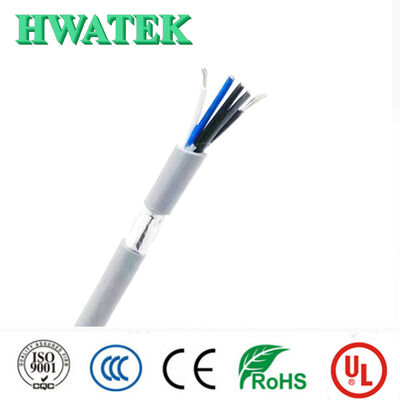

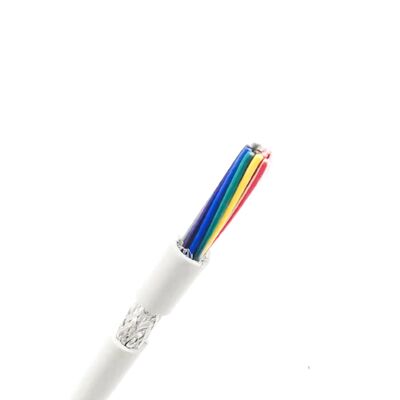

UL2463 600V 24-28AWG X-ray Equipment Multi-Core Cable
This specialized multi-core cable is designed for X-ray equipment and internal/external interconnection of electronic equipment, including business machines and medical imaging systems.
Product Specifications
| Product Number |
Conductor |
Size AWG |
No./mm |
Conductor Dia. mm |
Nom. Thickness mm |
Nom. Dia. mm |
Tape thick. mm |
Dia. of braid strand mm |
Nom Thick. mm |
Nom. Dia. mm |
Max resistance Ω/km |
| HT2463**101 | 3C | 28 | 7/0.127 | 0.38 | 0.26 | 0.8 | 0.025 | 0.1 | 0.8 | 3.8 | 223 |
| HT2463**102 | 3C | 26 | 7/0.16 | 0.48 | 0.26 | 0.9 | 0.025 | 0.1 | 0.8 | 4.04 | 140 |
| HT2463**103 | 3C | 24 | 11/0.16 | 0.6 | 0.26 | 1.12 | 0.025 | 0.1 | 0.8 | 4.51 | 87.6 |
| HT2463**104 | 3C | 22 | 17/0.16 | 0.76 | 0.26 | 1.3 | 0.025 | 0.1 | 0.8 | 4.9 | 55.4 |
| HT2463**105 | 6C | 28 | 7/0.127 | 0.38 | 0.26 | 0.8 | 0.025 | 0.12 | 0.8 | 4.7 | 223 |
| HT2463**106 | 6C | 26 | 7/0.16 | 0.48 | 0.26 | 0.9 | 0.025 | 0.12 | 1.0 | 5.3 | 140 |
| HT2463**107 | 6C | 24 | 11/0.16 | 0.6 | 0.26 | 1.12 | 0.025 | 0.12 | 1.0 | 6 | 87.6 |
Applications
X-ray equipment and interconnection of electronic equipment.
Certification Standards
UL758 & UL1581 & CSA C22 No.210
Product Characteristics
- Excellent insulation performance with stable chemical properties
- Anti-acid and environmentally friendly construction
- Effective electromagnetic interference resistance via Al Mylar or braiding shield
- Heat resistance with UL VW-1 and CSA FT1 vertical flame test certification
Cable Structure
- Stranded or solid copper conductors, tinned or bare copper, 32-4/0AWG
- PVC, SR-PVC, PE or PP insulation materials
- Two or more single-core wires twisted into pairs or cabling configurations
- Spiral or braid shield with tinned or bare copper, Al-Mylar wrapped shield
- Durable PVC jacket
Technical Parameters
- Rated temperature: 80°C
- Rated Voltage: 600V
