UL2463 Medical PVC Insulation X-Ray Equipment Multi Core Copper Cable with 600V Rated Voltage and VW-1 Flame Retardant

Large Image : UL2463 Medical PVC Insulation X-Ray Equipment Multi Core Copper Cable with 600V Rated Voltage and VW-1 Flame Retardant

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	Medical PVC
Insulation Material:	Medical PVC/SRPVC/PP	Material Shape:	Round Wire
Rated Voltage:	600V	Rated Temperature:	-40ºC To 80ºC
Flame Resistance:	VW-1, FT1, FT2	Oil Resistance:	60ºC Or 80ºC Oil
Voltage Withstand:	AC 2.5kV/1min	Conductor Type:	Stranded, Tinned Or Bare Copper
Shield Type:	Bare Or Tinned Copper Braid Or AL-Mylar Wrapped Shield	Jacket Material:	Medical PVC
Printing Details:	E258652 AWM STYLE 2463 AWGXX 80ºC 600V VW-1 ---c AWM I A/B 80ºC 600V FT1 -LF-HWATEK	Quantity Per Roll:	305m, 610m Or As Request
Transport Packaging:	Rolled In Reels, Packed In Pallets
Highlight:	Medical PVC Insulation Medical Cable , 600V Rated Voltage X-Ray Equipment Cable , VW-1 Flame Retardant Multi Core Copper Cable

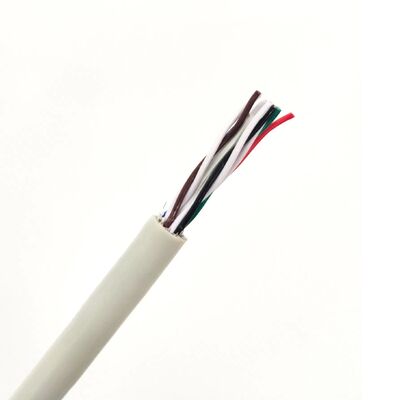

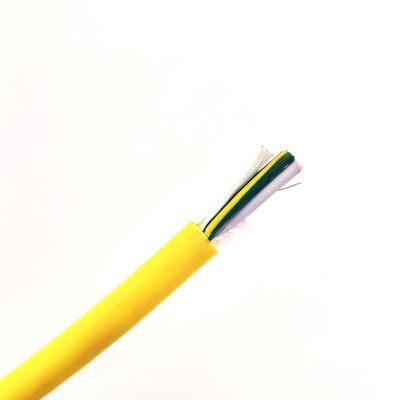

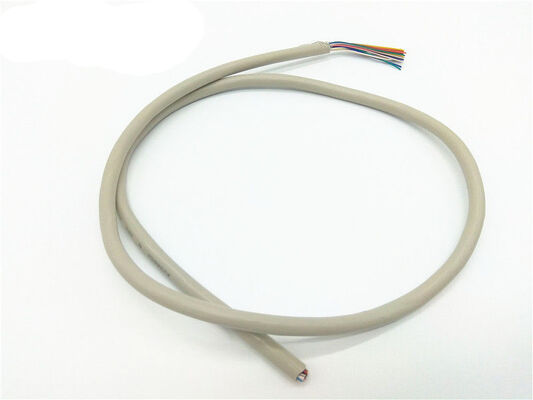

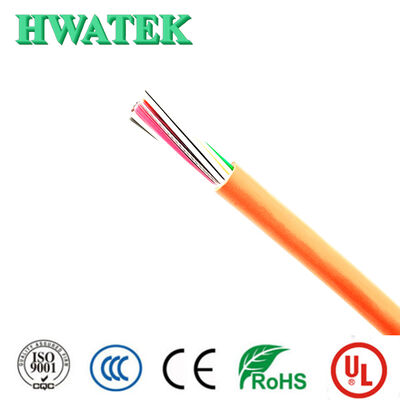

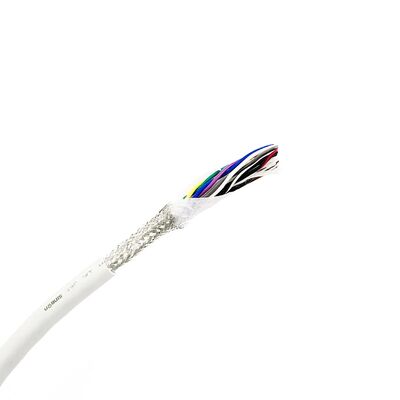

UL2463 Medical Insulation X-Ray Equipment Multi Core Copper Cable

Construction Specifications

Conductor: Stranded, tinned or bare copper
Insulation: Medical PVC/SRPVC/PP
Shield or Braid: Bare or tinned copper braid or AL-Mylar wrapped shield
Jacket: Medical PVC

Compliance Standards

International: UL758, UL1581, UL2556
RoHS, REACH Compliant

Technical Specifications

Rated Voltage	600V
Rated Temperature	-40ºC to 80ºC
Flame Rating	VW-1, FT1, FT2
Oil Resistance	60ºC or 80ºC Oil
Voltage Withstand Test	AC 2.5kV/1min
Printing	E258652 AWM STYLE 2463 AWGXX 80ºC 600V VW-1 ---c AWM I A/B 80ºC 600V FT1 -LF-HWATEK Where "XX" means AWG No.

Product Properties

Excellent insulation performance
Stable chemical properties
Anti-acid and environmental protection

Company Profile

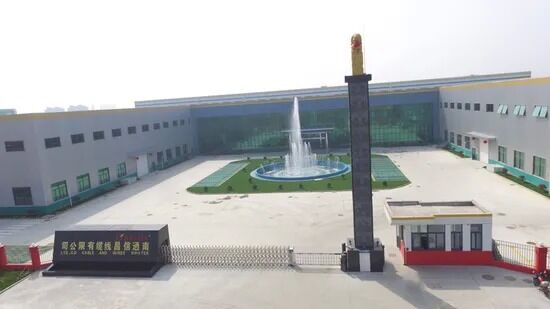

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.

With ISO9001, ISO14001, IATF16949, and ISO13485 system certifications, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers across various industries through our well-established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
