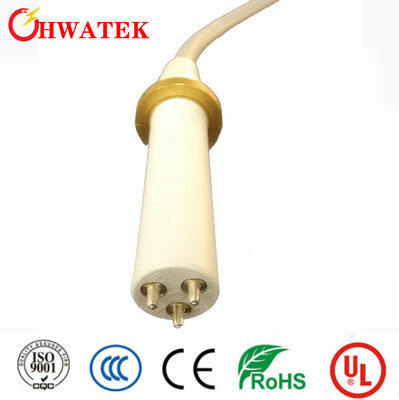

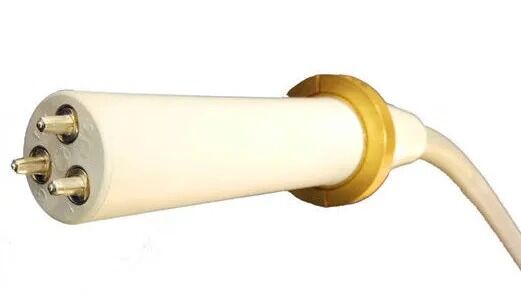

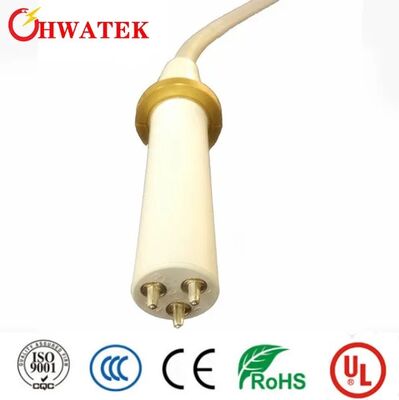

PFA Insulation Weariness Resistance Copper Conductor High Voltage Electrical Cable for X Ray Medical Devices

Large Image : PFA Insulation Weariness Resistance Copper Conductor High Voltage Electrical Cable for X Ray Medical Devices

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	PVC Or TPU
Insulation Material:	PFA	Material Shape:	Round Wire
High Voltage Test:	DC 150kVdc/10min	No. Of Cores:	2C
Cross Section:	1.5mm2	Outer Diameter:	17.30 Mm
Weight:	362 Kg/km	Conductor Type:	Bare Copper, Tinned Copper
Shield Type:	Bare Copper, Tinned Copper Braid	Jacket Material:	PVC OR TPU
Flexibility:	High	Wear Resistance:	High
Capacity:	Low
Highlight:	PFA Insulation High Voltage Electrical Cable , Weariness Resistance Medical Device Cable , Copper Conductor X Ray Cable

PFA Insulation Wear Resistance Copper Conductor X-Ray High Voltage Electrical Cable

Cable Construction

Conductor: Bare Copper, Tinned Copper
Insulation: PFA
Shield or Braid: Bare Copper, Tinned Copper braid
Jacket: PVC OR TPU

Certification Standards

International: UL758, UL1581, UL2556 ETC.
RoHS, REACH Compliant

Technical Specifications

High Voltage Withstand Test: DC 150kVdc/10min

Key Properties

High flexibility
Wear resistance
Low capacity

Product Specifications

Part No.	No. cores x Cross-section AWG	Outer Diameter (mm)	Weight (Kg/km)
HT1902116M	2C x 1.5mm²	17.30	362

Company Profile

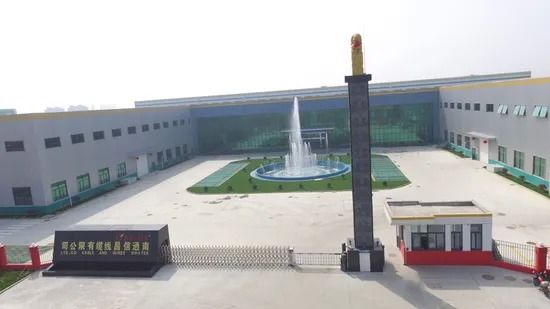

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.

With ISO9001, ISO14001, IATF16949, and ISO13485 system certificates, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers across various industries through our established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
