Low Noise Medical Control Cable with Tinned Copper Conductor and PVC Jacket for Medical Equipment

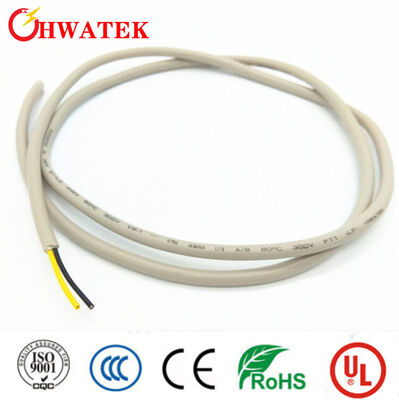

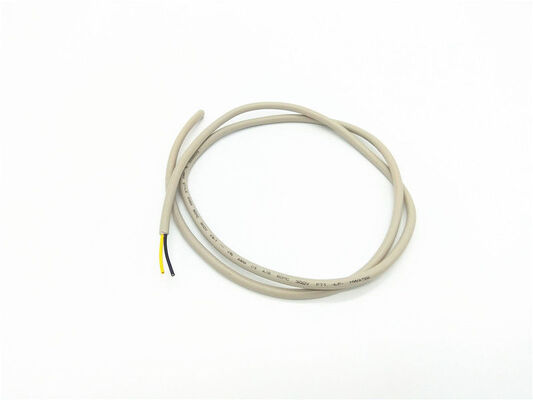

Large Image : Low Noise Medical Control Cable with Tinned Copper Conductor and PVC Jacket for Medical Equipment

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	PVC
Insulation Material:	PP	Material Shape:	Round Wire
Max Conductor Resistance:	150 Ω/km	Rated Temperature:	105ºC
Rated Voltage:	300V	Noise Level:	2 To 3mV
Conductor Size:	26 AWG	Conductor Diameter:	0.48 Mm
Insulation Thickness:	0.28 Mm	Nominal Diameter:	1.08 Mm
Shield Material:	Tinned Copper	Shield Thickness:	0.50 Mm
Jacket Diameter:	7.60 Mm
Highlight:	Low Noise Medical Control Cable , Tinned Copper Conductor Medical Device Cable , PVC Jacket Medical Equipment Cable

Low Noise Medical Control Cable

Products are used in tiny signal measurement of industrial and medical fields.

Product Specifications

Product Number	Cores	Size AWG	NO./mm	Conductor Dia mm	Thickness mm	Nom. Dia. mm	Material	Thickness mm	Nom. Dia. mm	Max. Cond. Resistance (200C) Ω/km
HT0080025	2C+4C	26	7/0.16	0.48	0.28	1.08	TC	0.50	7.60	150
		24	7/0.20	0.60	0.40	1.45				94.2
HT0080027	2C+3C	20	10/0.255	0.93	0.43	1.82	TC	0.50	7.60	36.7
		22	7/0.254	0.76	0.39	1.60				59.4
HT0080024	1P+1C	22	7/0.254	0.76	0.27	1.32	TC	0.50	7.70	59.4
		26	7/0.16	0.48	0.35	1.22				150
HT0080023	1C	24	7/0.20	0.60	0.24	1.12	TC	0.50	7.60	59.4

Application

Internal wiring or external interconnection of electronic equipment

Product Characteristics

Pass UL VW-1 and CSA FT1 vertical flame test
Heat and bending resistance, good insulation shielding property
The noise from 2 to 3mV

Construction

Stranded tinned copper conductor
PP insulation
Tinned copper braid shielding
PVC jacket

Technical Parameters

Rated temperature: 105ºC
Rated Voltage: 300V
