UL Certified SpO2 Sensor Cable with TPU Jacket and HDPE Insulation for Medical Equipment

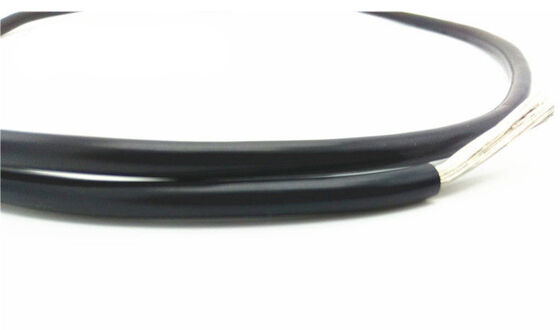

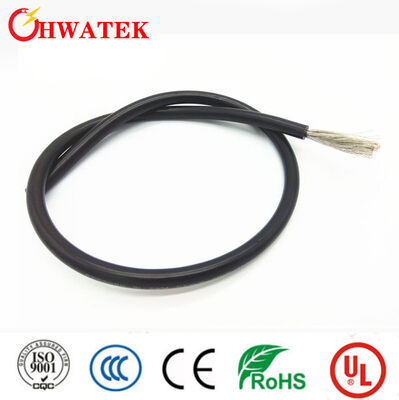

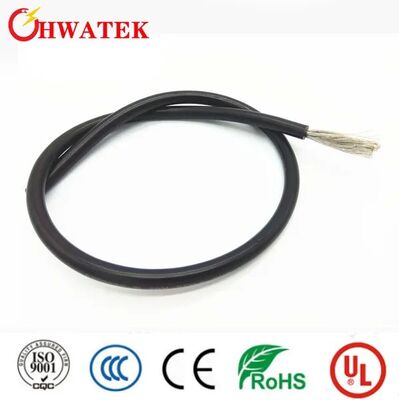

Large Image : UL Certified SpO2 Sensor Cable with TPU Jacket and HDPE Insulation for Medical Equipment

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	TPU
Insulation Material:	HDPE	Material Shape:	Round Wire
Conductor Size:	30 AWG	Conductor Diameter:	0.25 Mm
Insulation Thickness:	0.2 Mm	Nominal Diameter:	0.65 Mm
Shield Material:	Tinned Copper	Jacket Thickness:	0.6 Mm
Max Conductor Resistance:	361 Ω/km	Rated Temperature:	125ºC
Rated Voltage:	600V	Flame Test:	UL VW-1, CSA FT1
Quantity Per Roll:	305m, 610m
Highlight:	UL Certified SpO2 Sensor Cable , TPU Jacket Medical Device Cable , HDPE Insulation Medical Equipment Cable

Products are used in adult finger clip sensor, adult soft tip sensor, and adult ear clip applications.

Product Specifications

Conductor	Insulation	Shield	Jacket	Max. Cond. Resistance (200C) Ω/km
Product Number	Cores	Size AWG	NO./mm	Conductor Dia mm	Thickness mm	Nom. Dia. mm	Material	Thickness mm	Nom. Dia. mm
HTM***001	2+2	30	25/0.05	0.25	0.2	0.65	TC	0.6	4.0	361
HTM***002	2+3	30	25/0.05	0.25	0.2	0.65	TC	0.6	4.2	361
HTM***003	2+5	30	25/0.05	0.25	0.2	0.65	TC	0.6	4.5	361

Application

Internal wiring or external interconnection of electronic equipment

Product Characteristics

Pass UL VW-1 and CSA FT1 vertical flame test
Heat and oil resistance, anti-bending, anti-abrasion
Halogen-free, environment protection

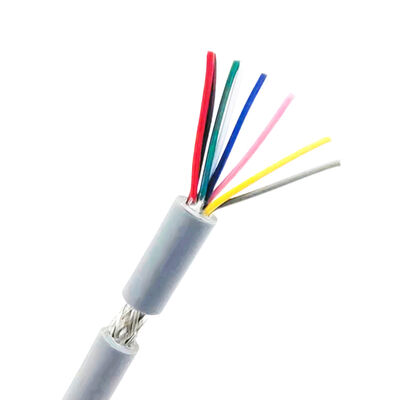

Construction

Stranded tinned or bare copper conductor
HDPE insulation
Tinned copper braid shielding
TPU jacket

Technical Parameters

Rated temperature: 125ºC
Rated Voltage: 600V
