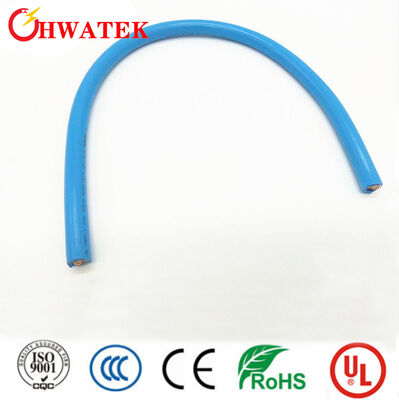

1000V Rated Voltage XLPE Insulation Tinned Copper Medical Device Solar Cable for High Voltage Applications

Large Image : 1000V Rated Voltage XLPE Insulation Tinned Copper Medical Device Solar Cable for High Voltage Applications

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	XLPE
Insulation Material:	XLPE	Material Shape:	Round Wire
Qty Per Roll:	305m, 610m, 1220m Etc	Conductor Size:	12 AWG
Conductor Stranding:	65/0.254	Conductor Diameter:	2.4 Mm
Insulation Thickness:	0.76 Mm	Nominal Diameter:	5.64 Mm
Rated Temperature:	105ºC	Rated Voltage:	1000V
Max Conductor Resistance:	20ºC Ω/km	Cores:	3C
Jacket Material:	XLPE
Highlight:	1000V Rated Voltage Medical Device Cable , XLPE Insulation Solar Cable , Tinned Copper Conductor High Voltage Cable

1000V High Voltage Green Energy Conversion XLPE Solar Cable

Products are used in solar energy inverter applications.

Product Number	Cores	Size AWG	No./mm	Conductor Dia. mm	Nom. Thickness mm	Nom. Diameter	Nom Diameter	Nom. Thickness
HT4545***001	3C	12	65/0.254	2.4	0.76	4	11.1	0.76

Application

Conversion cable for solar energy inverter

Application Standard

UL758, UL1581

UL Identification Number

UL4545

Product Characteristics

Heat resistance, oil resistance, wear resistance, resistance to bending
Halogen-free, environment protection

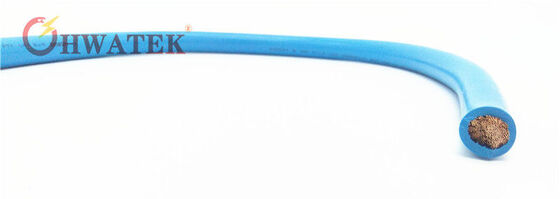

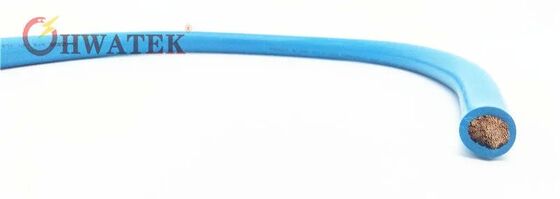

Construction

Stranded tinned copper conductor
XLPE insulation
XLPE jacket

Technical Parameters

Rated temperature: 105ºC
Rated Voltage: 1000V
