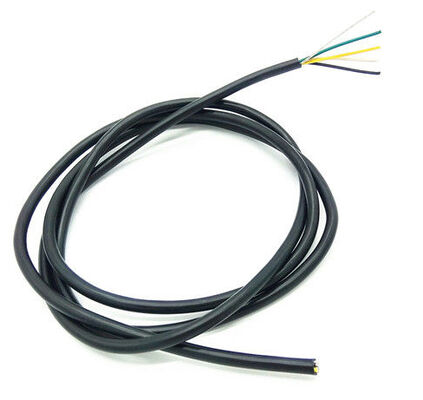

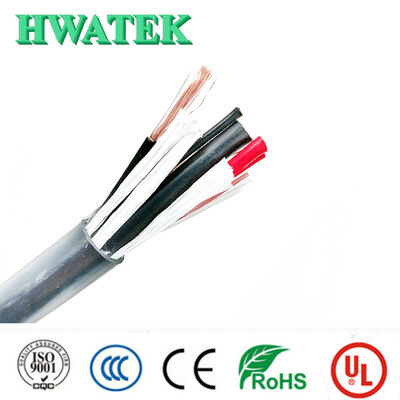

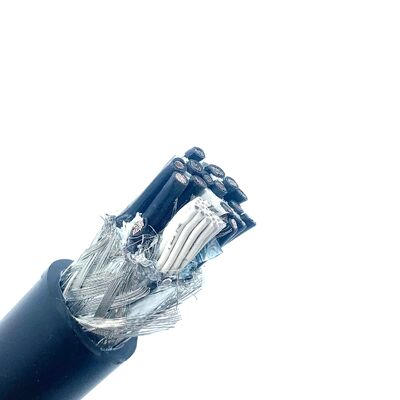

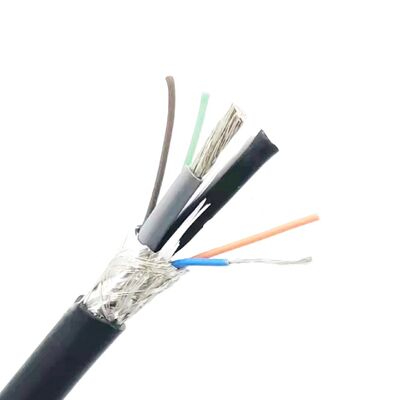

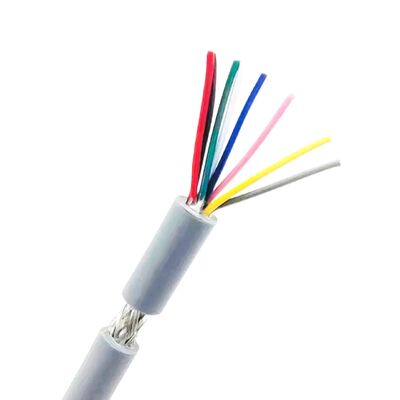

600V Rated Voltage X-ray High Voltage Cable with PVC Insulation and Anti-EMI Shield for Medical Equipment

Large Image : 600V Rated Voltage X-ray High Voltage Cable with PVC Insulation and Anti-EMI Shield for Medical Equipment

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	PVC
Insulation Material:	PVC	Material Shape:	Round Wire
Qty/Roll:	305m,610m Or As Request	Conductor Size:	32-4/0AWG
Rated Temperature:	80ºC	Rated Voltage:	600V
Max Resistance:	223, 140, 87.6, 55.4 Ω/km	Shield Type:	Al Mylar Or Braiding Shield
Flame Test:	UL VW-1 And CSA FT1	Conductor Dia:	0.38, 0.48, 0.6, 0.76 Mm
Insulation Thickness:	0.26 Mm	Nominal Dia:	0.8, 0.9, 1.12, 1.3, 3.8, 4.04, 4.51, 4.9, 4.7, 5.3, 6 Mm
Shield Thickness:	0.025 Mm
Highlight:	600V Rated Voltage X-ray High Voltage Cable , PVC Insulation Medical Equipment Cable , Anti-EMI Shield Bare Copper Wire Cable

Products are used in X-ray Equipment, or in the internal or external interconnection of electronic equipment; External interconnection of electronic equipment, such as X-ray equipment and business machines.

Product Specifications

Product Number	Conductor	Size AWG	No./mm	Conductor Dia.mm	Nom. Thickness mm	Nom. Dia. mm	Tape thick. mm	Dia. of braid strand mm	Nom Thick. mm	Nom. Dia. mm	Max resistance Ω/km
HT2463**101	3C	28	7/0.127	0.38	0.26	0.8	0.025	0.1	0.8	3.8	223
HT2463**102	3C	26	7/0.16	0.48	0.26	0.9	0.025	0.1	0.8	4.04	140
HT2463**103	3C	24	11/0.16	0.6	0.26	1.12	0.025	0.1	0.8	4.51	87.6
HT2463**104	3C	22	17/0.16	0.76	0.26	1.3	0.025	0.1	0.8	4.9	55.4
HT2463**105	6C	28	7/0.127	0.38	0.26	0.8	0.025	0.12	0.8	4.7	223
HT2463**106	6C	26	7/0.16	0.48	0.26	0.9	0.025	0.12	1.0	5.3	140
HT2463**107	6C	24	11/0.16	0.6	0.26	1.12	0.025	0.12	1.0	6	87.6

Applications

X-ray equipment and interconnection of electronic equipment.

Application Standards

UL758 & UL1581 & CSA C22 No.210

Product Characteristics

Good insulation performance, stable chemical properties
Anti-acid and environmental protection
Effectively resist electromagnetic interference by Al Mylar or braiding shield
Heat resistance, pass UL VW-1 and CSA FT1 vertical flame test

Structure

Stranded or solid copper, tinned or bare copper conductor, 32-4/0AWG
PVC, SR-PVC, PE or PP insulation
Two or more single-core wire are twisted into pair or cabling again
Spiral or braid shield with Tinned or bare copper, Al-Mylar wrapped shield
PVC jacket

Technical Parameters

Rated temperature: 80ºC
Rated Voltage: 600V

Company Profile

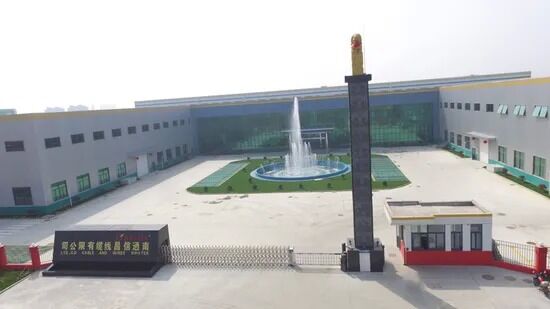

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters. With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
