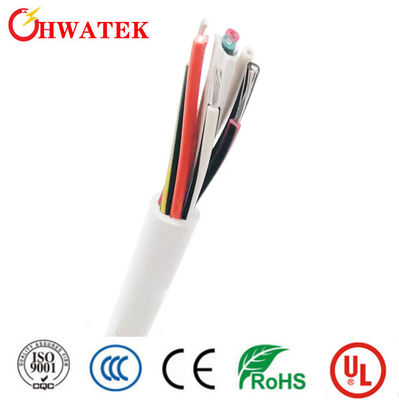

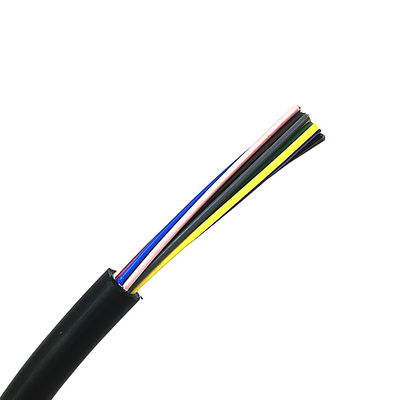

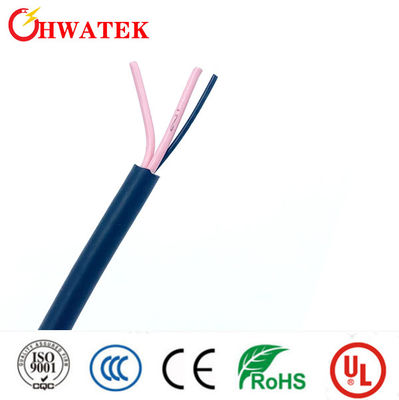

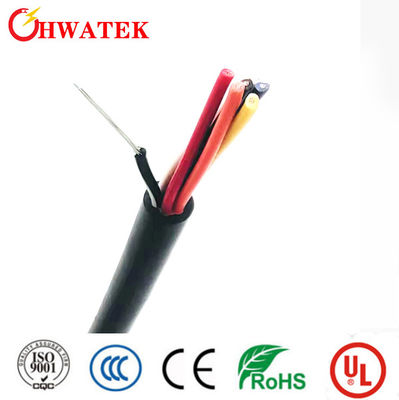

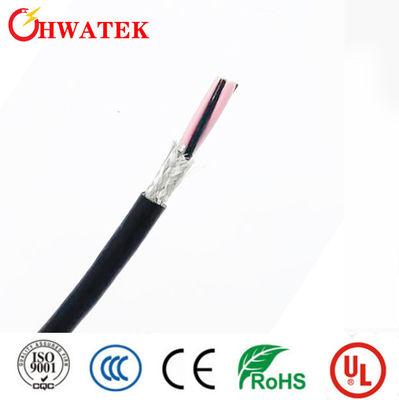

UL1277 Bare Copper Stranded TC ER Cable with XLPE insulation PVC Jacket 5C 6AWG outdoor rated cable
| Construction |
| Conductor |
Bare copper stranded |
| Cross section |
6AWG |
| Construction |
266/0.254mm |
| Strand Dia.(REF) |
5.00mm |
| Insulation |
XLPE |
| Nom.Thickness |
1.14mm |
| Min.Thickness |
1.02mm |
| Insulation Dia. |
7.60±0.10mm |
| Insulation colour |
1~4.black with white number 1~4 5.green/yellow |
| Material |
Non-woven |
| Filler |
Optional |
| Assembly |
5C×6AWG+W |
| Jacket |
PVC |
| Nom.Thickness |
2.03mm |
| Min.Thickness |
1.63mm |
| Outer Dia. |
26.00±1.00mm |
| Colour |
black |
Product Description
Application: Outdoor cable
Application standard: Outdoor or machine
Product character:
Tensile strength:≥10.3MPa Elongation:≥250%
Aged condition:121±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥70%
UL758 -E258652-20060111-CertificateofCompliance-1....
Insulation:XLPE
Conductor : Bare copper stranded
Construction
Insulation: 1.black&brown 2.red &orange 3.yellow&green
Jacket Color : Per request
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:UL1277 UL2277
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature: 90℃ DRY and 90℃ WET
Voltage withstand test:AC 3.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| ELECTRICAL CHARACTERISTICS |
| Rated voltage:600V |
| Rated temperature:90℃ |
| Max. DC conductor resistance(20℃):1.348Ω/km |
| Voltage withstand test:AC 3.0kV/1min |
| Flame test:VW-1,FT2 |
