Multi Core Coaxial Cable with PFA Insulation for Medical Equipment and Ultrasound Applications

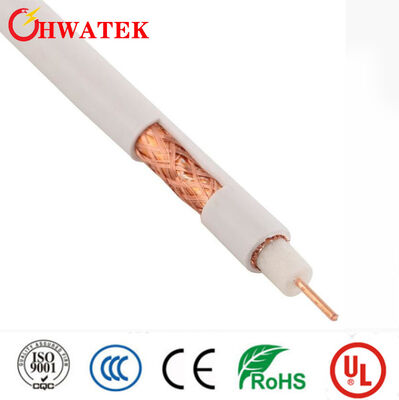

Large Image : Multi Core Coaxial Cable with PFA Insulation for Medical Equipment and Ultrasound Applications

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	Pet
Insulation Material:	PFA	Material Shape:	Round Wire
Conductor AWG:	30-46AWG	Rated Temperature:	80ºC
Rated Voltage:	30V	Impedance:	45-80 Ω
Max Resistance:	1569-12000 Ω/km	Conductor Diameter:	0.06-0.15 Mm
Insulation Diameter:	0.175-0.46 Mm	Shield Diameter:	0.025-0.03 Mm
Jacket Diameter:	0.29-0.54 Mm	Shield Material:	Tinned Copper
Jacket Material:	PFA Or PET
Highlight:	Multi Core Coaxial Cable , PFA Insulation Coaxial Cable , Medical Equipment Coaxial Cable

RG58, RG178, JIS Ultrasound Special Medical Equipment Multi Core Coaxial Cable

These specialized coaxial cables are designed for use in electrocardiograph instruments, ultrasound imaging systems, CT scanners, and various medical diagnostic devices.

Product Specifications

Product Number	AWG	Conductor Material	Conductor Construction	Conductor Dia. (mm)	Insulation Material	Nom. Insulation Dia. (mm)	Shield Material	Shield Dia. (mm)	Jacket Material	Nom. Jacket Dia. (mm)	Impedance (Ω)	Max Resistance (Ω/km)
HTMMC0001	36	TC	7/0.05	0.15	PFA	0.38	TC	0.03	FEP	0.54	45	1569
HTMMC0002	38	SPTCA	7/0.04	0.12	PFA	0.3	TC	0.025	FEP	0.44	45	3300
HTMMC0003	38	SPTCA	7/0.04	0.12	FEP	0.35	TC	0.03	PET	0.44	50	3300
HTMMC0004	38	SPTCA	7/0.04	0.12	PFA	0.46	TPTCA	0.025	PET	0.54	80	3300
HTMMC0005	40	SPTCA	7/0.03	0.09	PFA	0.22	TC	0.025	FEP	0.36	45	5000
HTMMC0006	40	TC	7/0.03	0.09	PFA	0.25	TC	0.03	PET	0.34	50	5000
HTMMC0007	40	SPTCA	7/0.03	0.09	PFA	0.38	TPTCA	0.025	PET	0.46	80	5000
HTMMC0008	42	SPTCA	7/0.025	0.08	PFA	0.175	TC	0.025	PFA	0.30	45	7500
HTMMC0009	42	SPTCA	7/0.025	0.08	PFA	0.345	TPTCA	0.025	PET	0.43	80	7500
HTMMC0010	44	SPTCA	3/0.03	0.06	PFA	0.175	TPTCA	0.025	PFA	0.29	50	12000

Application

Internal wiring of medical diagnostic devices including ultrasound systems, ECG machines, and CT scanners.

Product Characteristics

Small diameter and lightweight design
Excellent strength and bending resistance
Specifically designed for internal connections in medical devices
PFA insulation material provides superior heat resistance and stable electrical performance

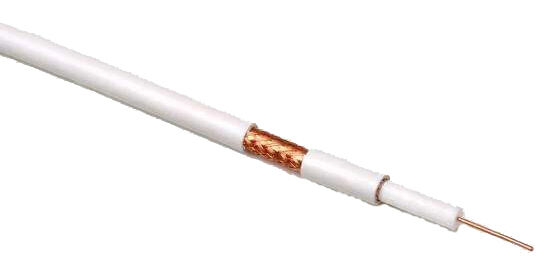

Cable Structure

Stranded, silver-plated, or tinned alloy copper conductor (30-46 AWG)
PFA insulation
Spiral shielding with tinned copper
PFA or PET jacket

Technical Parameters

Rated temperature: 80°C
Rated voltage: 30V

Company Profile

Founded in 2004 with a $9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with a 100 million RMB capital investment covering 34,000 square meters.

With ISO9001, ISO14001, IATF16949, and ISO13485 system certifications, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers across various industries through our established sales system, guided by our management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
