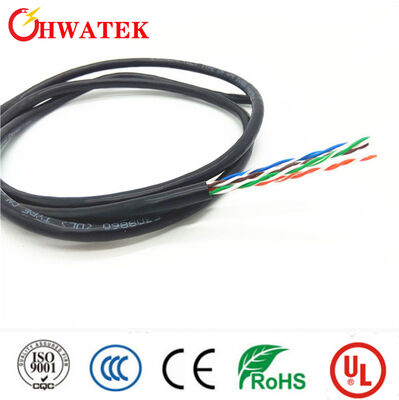

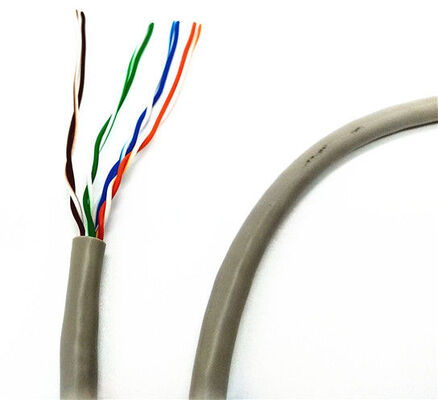

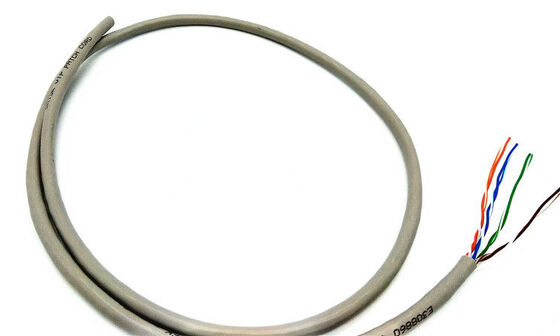

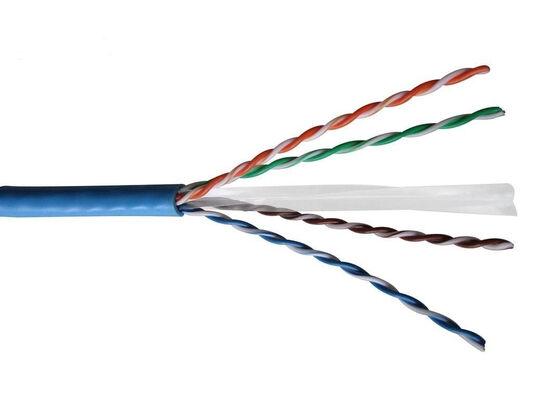

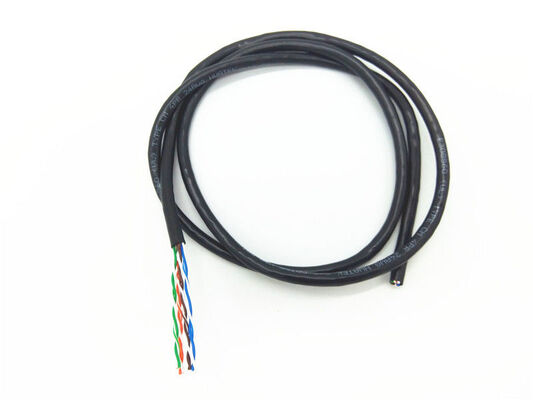

UL444 Certified Cat5e LAN Cable with High-Speed Transmission and Strong Shielding Property for Outdoor Network

Large Image : UL444 Certified Cat5e LAN Cable with High-Speed Transmission and Strong Shielding Property for Outdoor Network

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	10,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	PVC
Insulation Material:	PE	Material Shape:	Round Wire
Qty Per Roll:	305m, 610m Or As Request	Conductor Diameter:	1/0.51mm, 1/0.53mm
Insulation Thickness:	0.95mm, 1.00mm	No. Of Pairs:	4
Shield Material:	AL-Mylar	Braid Shield:	16/6/0.10mm
Nominal Diameter:	5.10mm, 5.60mm, 6.00mm	Flame Rate:	CMX, CM, CMG, CMR
Transmission Speed:	100Base-T4, 100Base-TX, 1000Base-T, 155Mbps ATM, 622Mbps ATM	Conductor Type:	Stranded Or Solid, Tinned Or Bare
Application Standard:	UL444
Highlight:	UL444 Certified Cat5e LAN Cable , High-Speed Transmission Outdoor Network Cable , Strong Shielding Property Shielded Ethernet Cable

UL Customized Cat5e SFTP FTP Internet Network Outdoor LAN Cable

Product Applications

Designed for high-performance networking applications including:

100Base-T4, 100Base-TX, and 1000Base-T (Gigabit Ethernet)
155Mbps and 622Mbps ATM systems
Communication and signal control systems

Certification & Standards

Complies with UL444 application standard

Product Characteristics

High-speed data transmission capabilities
Superior shielding properties for reduced interference
Available in multiple flame ratings: CMX, CM, CMG, CMR
Standard thickness for easy stripping and cutting

Cable Construction

Conductor: Stranded or solid copper, tinned or bare conductor options
Insulation: PE (Polyethylene)
Jacket: PVC
Copper jacket steel conductor available

Product Specifications

Product Number	Conductor	Insulation	Construction	Shield	Braid Shield	Jacket
HT-CAT5-UTP001	1/0.51	0.95	UTP 4	-	-	5.10
HT-CAT5-FTP001	1/0.53	1.00	FTP 4	AL-Mylar	-	5.60
HT-CAT5-SUTP001	1/0.53	1.00	S-UTP 4	AL-Mylar	16/6/0.10	6.00
HT-CAT5-SFTP001	1/0.53	1.00	S-FTP 4	AL-Mylar	16/6/0.10	6.00
