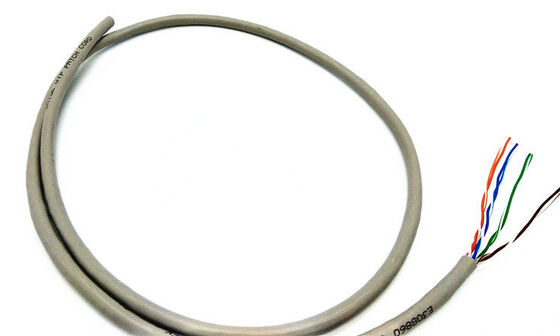

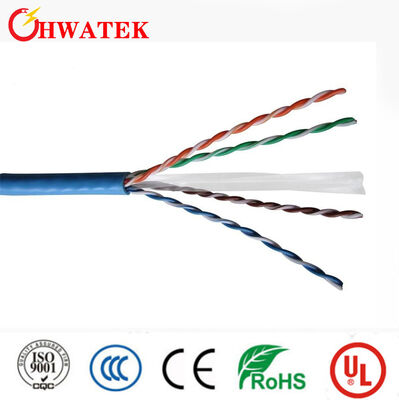

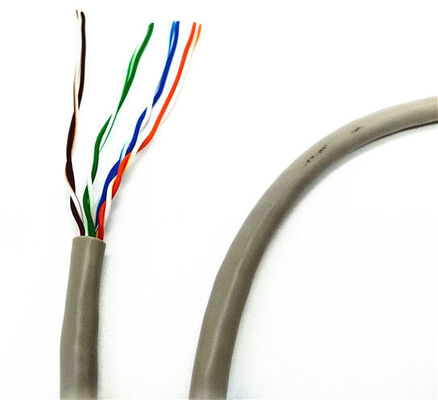

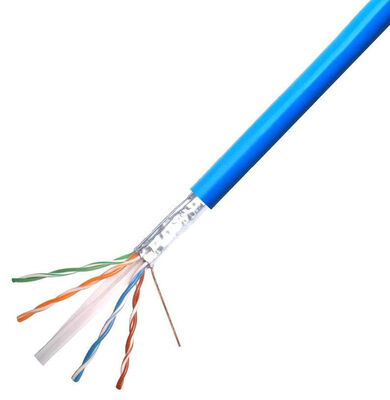

UTP CAT6A Ethernet Network Outdoor LAN Cable
Product Specifications
| Product Number |
Conductor |
Insulation |
Construction No. of Pairs |
Shield |
Braid Shield |
Jacket |
| HT-CAT6-UTP001 |
1/0.57 |
1.02 |
UTP4 |
- |
- |
6 |
| HT-CAT6-FTP001 |
1/0.57 |
1 |
FTP4 |
Al-mylar |
- |
6.3 |
| HT-CAT6-SUTP001 |
1/0.57 |
1 |
S-UTP4 |
Al-mylar |
16/6/0.10 |
6.5 |
| HT-CAT6-SFTP001 |
1/0.57 |
1.05 |
S-FTP4 |
Al-mylar |
16/6/0.10 |
6.7 |
Cable Construction
Conductor: Stranded or Solid, tinned, bare copper clad steel silvered plated copper conductor
Insulation: PE
Shield or Braid: Al-Mylar shield
Jacket: PVC or FRPE
Applications
Products are used in 100Base-T4, 100Base-TX, 1000Base-T (Gigabit Ethernet), 155Mbps ATM, 622Mbps ATM
Compliance Standards
- International: UL758, UL1581, UL2556, UL13, UL444, IEC61156, TIA568
- RoHS, REACH Compliant
Technical Data
Rated voltage: 30V
Rated Temperature: -20ºC to 80ºC
Flame: VW-1, CMR, CM, CMG
Voltage withstand test: AC 0.5kV/1min
Key Properties
- High transmission speed
- Good shielding property
- Excellent insulation performance
