FT1 Flame Retardant UL1032 Single Conductor Power Cable Wire

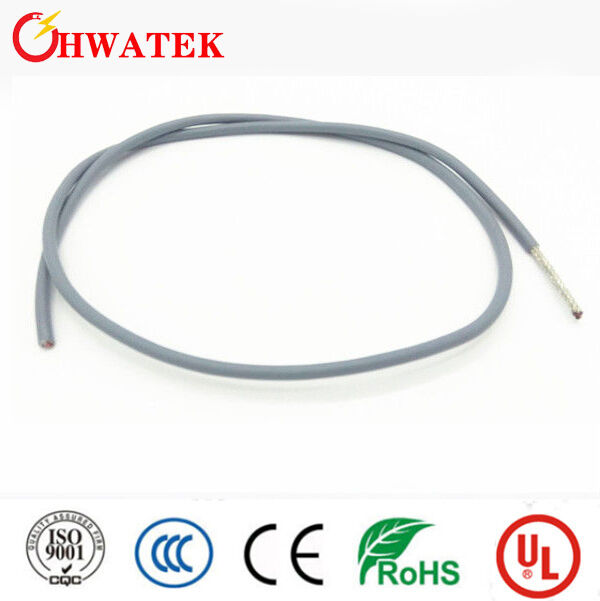

Large Image : FT1 Flame Retardant UL1032 Single Conductor Power Cable Wire

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Model NO.:	UL1032	Insulation Material:	PVC
Material Shape:	Round Wire	Rated Voltage:	1000V Or 1200V
Rated Temperature:	90ºC	Flame Rating:	VW-1, FT1, FT2
Oil Resistance:	60 Deg C Or 80 Deg C Oil	Voltage Withstand:	AC 3.5kV/1min
Conductor Type:	Solid Or Stranded	AWG Size:	30, 26, 24, 6, 4, 2, 1, 1/0, 2/0
Conductor Diameter:	0.30mm To 12.50mm	Resistance:	381Ω/km To 0.266Ω/km
Insulation Thickness:	0.76mm To 2.03mm	Outer Diameter:	1.9±0.10mm To 17.2±0.60mm
Quantity Per Roll:	305m, 610m Or As Request
Highlight:	UL1032 flame retardant power cable , single conductor power wire , FT1 rated electrical cable

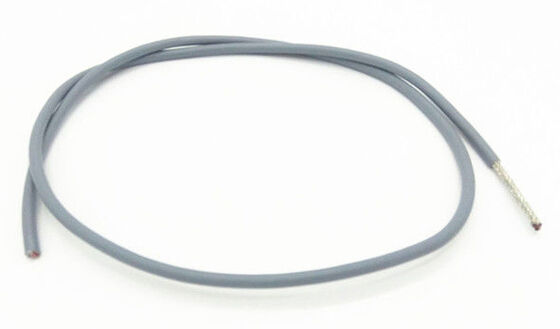

FT1 Flame Retardant UL1032 Single Conductor Power Cable Wire

Construction

Conductor: Solid or Stranded
Insulation: PVC

Standards & Compliance

International Standards: UL758, UL1581, UL2556
RoHS Compliant
REACH Compliant

Technical Specifications

Rated Voltage: 1000V or 1200V
Rated Temperature: 90ºC
Flame Rating: VW-1, FT1, FT2
Oil Resistance: 60°C or 80°C Oil
Voltage Withstand Test: AC 3.5kV/1min
Printing: E258652 AWM STYLE 1032 AWGXX 90ºC 1000V VW-1 ---c AWM I A/B 90ºC 1000V FT1 -LF-HWATEK

Product Specifications Table

Part No.	Size (AWG)	Tinned Copper Stranded	Construction Dia. (mm)	Resistance (Ω/km)	Avg. Thick. (mm)	Min. Thick. (mm)	Outer Dia. (mm)
HT1803692	30	7/0.10	0.30	381	0.76	0.69	1.9±0.10
HT1603263	26	7/0.16	0.48	150	0.76	0.69	2.1±0.10
HT2001390	24	7/0.20	0.60	94.2	0.76	0.69	2.2±0.10
HT2003822	6	266/0.254	5.40	1.403	1.52	1.37	8.7±0.30
HT1801402	4	1666/0.127	7.20	0.8481	1.52	1.37	10.6±0.40
HT1803394	2	1121/0.20	8.30	0.53351	1.52	1.37	11.7±0.40
HT1903214	1	874/0.254	9.70	0.4398	2.03	1.83	14.3±0.50
HT1906017	1/0	4214/0.127	11.00	0.3487	2.03	1.83	15.7±0.60
HT1501269	2/0	3486/0.16	12.50	0.266	2.03	1.83	17.2±0.60
