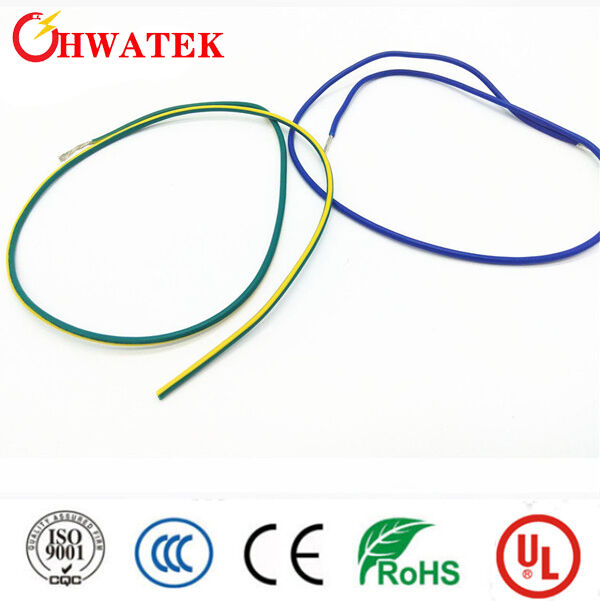

UL1061 Sr- PVC Insulation Single Conductor Flexible Cable Wire

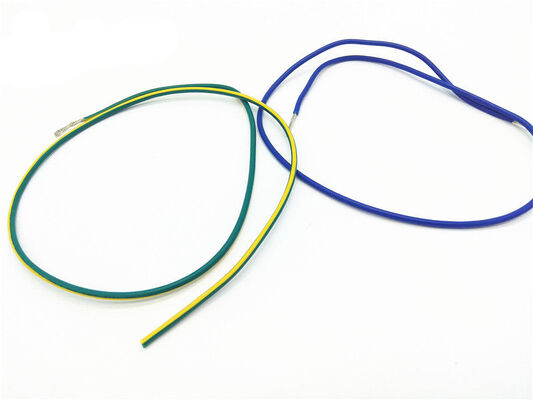

Large Image : UL1061 Sr- PVC Insulation Single Conductor Flexible Cable Wire

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Model NO.:	UL1061	Insulation Material:	Special Sr-PVC
Material Shape:	Round Wire	Conductor Type:	Stranded Bare Or Tinned Copper, IEC60228 CL5
Rated Voltage:	300V	Rated Temperature:	80ºC
Flame Rating:	VW-1, FT1, FT2	Oil Resistance:	60ºC Or 80ºC Oil
Voltage Test:	AC 2.0kV/1min	Printing Details:	E258652 AWM STYLE 1061 AWGXX 80ºC 300V VW-1 ---c AWM I A/B 80ºC 300V FT1 -LF-HWATEK
Minimum Bending Radius:	Flexing 7.5x Cable Ø, Fixed Installation 4x Cable Ø	Qty/Roll:	305m, 610m Or As Request
Transport Package:	Rolled In Reels, Packed In Pallets	Standards:	UL758, UL1581, UL2556
Compliance:	RoHS, REACH Compliant
Highlight:	UL1061 PVC insulated flexible cable , Single conductor wire with SR insulation , Flexible PVC cable for electrical wiring

UL1061 SR-PVC Insulation Single Conductor Flexible Cable Wire

Construction

Conductor: Stranded bare or tinned copper, IEC60228 CL5

Insulation: Special SR-PVC

Standards & Compliance

International Standards: UL758, UL1581, UL2556

Compliance: RoHS, REACH Compliant

Technical Specifications

Rated Voltage	300V
Rated Temperature	80ºC
Flame Rating	VW-1, FT1, FT2
Oil Resistance	60ºC or 80ºC Oil
Voltage Withstand Test	AC 2.0kV/1min
Printing	E258652 AWM STYLE 1061 AWGXX 80ºC 300V VW-1 ---c AWM I A/B 80ºC 300V FT1 -LF-HWATEK

Note: "XX" represents AWG number

Minimum Bending Radius

Flexing: 7.5x cable diameter

Fixed Installation: 4x cable diameter

Company Profile

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters.

In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.

We maintain ISO9001, ISO14001, IATF16949, and ISO13485 system certifications, with all products passing CCC, UL, CUL, CE, CSA, and ETL safety certifications.

Our management philosophy is built on HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION, serving global customers across various industries.

Certifications & Quality Assurance
