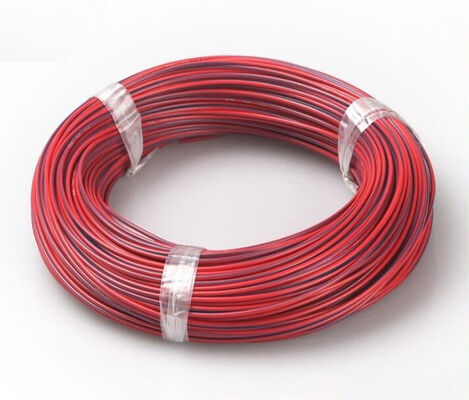

PVC High Flexibility Avss Automotive Cable Wire

Large Image : PVC High Flexibility Avss Automotive Cable Wire

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Sheath Material:	N/a	Insulation Material:	PVC
Material Shape:	Round Wire	Conductor Type:	Stranded, Tinned Or Bare Copper
Rated Voltage:	50V	Rated Temperature:	80ºC
Voltage Withstand:	AC 1.0kV/1min	Conductor Area:	0.3, 0.5, 0.85, 1.25, 2, 0.3f, 0.5f, 0.75f, 1.25f, 2f
Conductor Strands:	7/0.26, 7/0.32, 16/0.26, 7/0.40, 19/0.29, 19/0.37, 19/0.16, 19/0.19, 19/0.23, 37/0.21, 37/0.26	Insulation Thickness:	0.30mm, 0.40mm
Nominal Diameter:	1.40mm, 1.60mm, 1.80mm, 2.10mm, 2.70mm, 2.60mm	Max Conductor Resistance:	50.2, 32.7, 21.7, 20.8, 14.9, 9.00, 48.9, 34.6, 23.6, 14.7, 9.50 Ω/km
Quantity Per Roll:	305m, 610m Or As Request	Oil Resistance:	Yes
High Temperature Resistance:	Yes
Highlight:	flexible PVC automotive cable wire , AVSS automotive wire with warranty , high flexibility automotive cable wire

PVC High Flexibility AVSS Automotive Cable Wire

Construction

Conductor: Stranded, tinned or bare copper
Insulation: PVC

Standards & Compliance

International: JASO D 611-94
RoHS Compliant
REACH Compliant

Technical Data

Rated Voltage: 50V
Rated Temperature: 80ºC

Product Characteristics

Uniform insulation thickness for easy stripping and cutting
Resistant to oil, high temperature, ozone and abrasion
High flexibility with excellent thermo and mechanical strength
Voltage withstand test: AC 1.0kV/1min

Specifications

Conductor	Insulation	Max. Cond. Resistance (20°C) Ω/km
NOM. AREA OF COND.	NO./mm	Nom. Thickness mm \| Nom. Dia. mm
0.3	7/0.26	0.30 \| 1.40	50.2
0.5	7/0.32	0.30 \| 1.60	32.7
0.85	16/0.26	0.30 \| 1.80	21.7
0.85	7/0.40	0.30 \| 1.80	20.8
1.25	19/0.29	0.30 \| 2.10	14.9
2	19/0.37	0.40 \| 2.70	9.00
0.3f	19/0.16	0.30 \| 1.40	48.9
0.5f	19/0.19	0.30 \| 1.60	34.6
0.75f	19/0.23	0.30 \| 1.80	23.6
1.25f	37/0.21	0.30 \| 2.10	14.7
2f	37/0.26	0.40 \| 2.60	9.50
