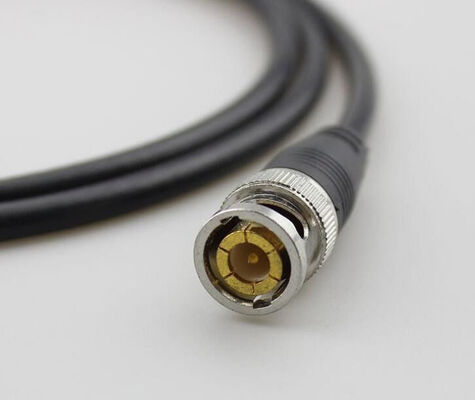

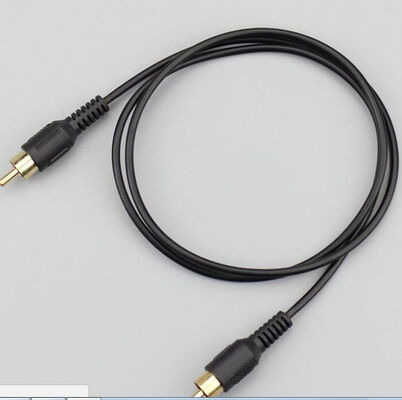

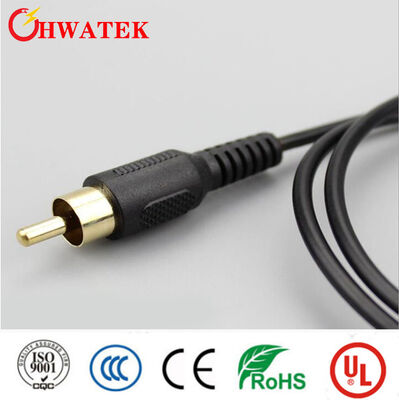

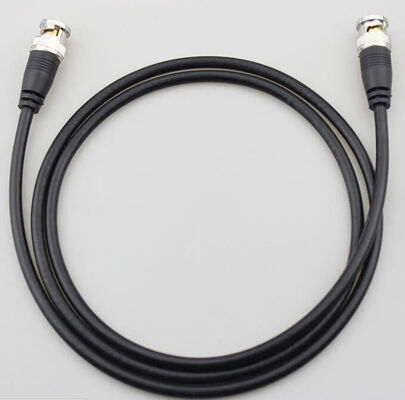

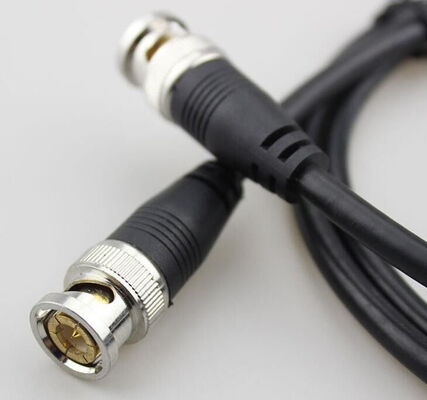

3.0-5.3mm JIS TV AV Coaxial Braid Shielded Cable
Product Applications
Used in notebook computers, digital cameras, video cameras, LCD TVs, sophisticated medical equipment, aviation systems, and intelligent robots.
Technical Specifications
| Product Number |
Conductor |
Insulation |
Shield |
Braid Shield |
Jacket |
Nominal Impedance Ω |
| HT-1.5C-2VS | 7/0.12 | 1.60 | - | 16/5/0.10 | 3.0 | 75±5 |
| HT-2.5C-2V | 1/0.4 | 2.40 | AL-Mylar | 16/5/0.12 | 4.0 | 75±5 |
| HT-3C-2V | 1/0.50 | 3.00 | AL-Mylar | 16/7/0.12 | 5.0 | 75±5 |
| HT-3C-2VS | 7/0.18 | 3.10 | AL-Mylar | 16/7/0.12 | 5.0 | 75±5 |
| HT-1.5D-2V | 7/0.18 | 1.60 | - | 16/5/0.10 | 3.0 | 50±5 |
| HT-2.5D-2V | 1/0.80 | 2.70 | - | 16/7/0.12 | 4.30 | 50±5 |
| HT-3D-2V | 7/0.32 | 3.00 | - | 16/7/0.12 | 5.30 | 50±5 |
Application & Standards
Application: Communication and signal control systems
Application Standard: JISC3501
Product Characteristics
- Good flexibility, light weight and reliable joints
- Strong shielding properties
- Flame ratings: CMX, CM, CMG, CMR
- Standard thickness, easily stripped and cut
Construction
- Stranded or single bare copper conductor
- PE insulation
- Vertical wrapped AL-mylar shielding
- Tinned or bare copper braiding
- PVC jacket
Technical Parameters
Rated Temperature: 70ºC
Rated Voltage: 30V
Company Profile
Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
With ISO9001, ISO14001, IATF16949, and ISO13485 system certificates, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We work with global customers through our well-established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
Certifications & Processes
Certificates
Production Progress
Shipping
Frequently Asked Questions
Q: What products do you supply?
A: We produce consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What certificates do you have?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we complete orders in 2-3 weeks, and 5-6 weeks during peak season.
Q: How do you guarantee product quality?
A: We provide pre-production samples before mass production and conduct final inspection before shipment.
