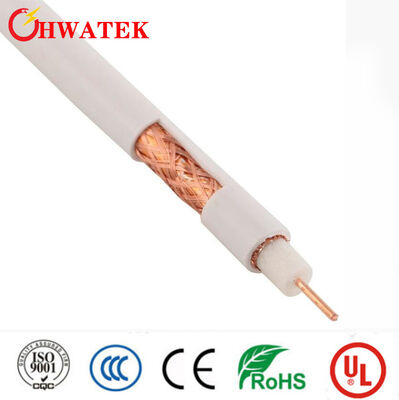

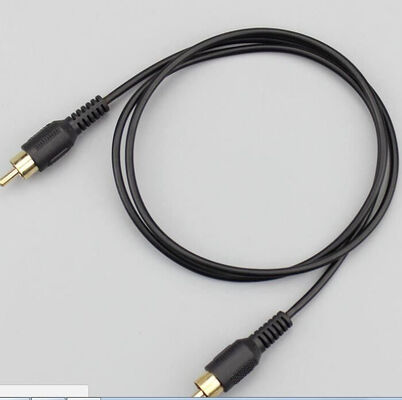

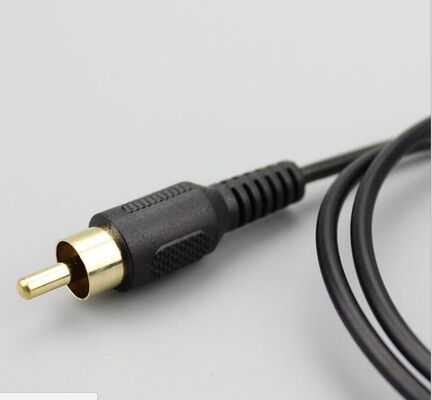

30V 3.0-5.3mm JIS TV AV Braided Shielded Electrical Coaxial Cable
Product Specifications
| Product Number |
Conductor |
Insulation |
Shield |
Braid Shield |
Jacket |
Nominal Impedance Ω |
| HT-1.5C-2VS |
7/0.12 |
1.60 |
- |
16/5/0.10 |
3.0 |
75±5 |
| HT-2.5C-2V |
1/0.4 |
2.40 |
AL-Mylar |
16/5/0.12 |
4.0 |
75±5 |
| HT-3C-2V |
1/0.50 |
3.00 |
AL-Mylar |
16/7/0.12 |
5.0 |
75±5 |
| HT-3C-2VS |
7/0.18 |
3.10 |
AL-Mylar |
16/7/0.12 |
5.0 |
75±5 |
| HT-1.5D-2V |
7/0.18 |
1.60 |
- |
16/5/0.10 |
3.0 |
50±5 |
| HT-2.5D-2V |
1/0.80 |
2.70 |
- |
16/7/0.12 |
4.30 |
50±5 |
| HT-3D-2V |
7/0.32 |
3.00 |
- |
16/7/0.12 |
5.30 |
50±5 |
Applications
Communication and signal control systems
Notebook computers, digital cameras, video cameras, LCD TVs, sophisticated medical equipment, aviation systems, and intelligent robots
Application Standard
JISC3501
Product Characteristics
- Good flexibility, light weight and reliable joints
- Strong shielding properties
- Flame ratings: CMX, CM, CMG, CMR
- Standard thickness, easily stripped and cut

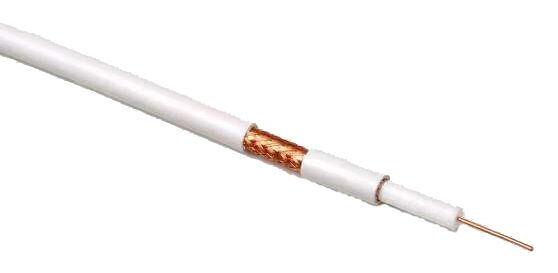

Construction
- Stranded or single bare copper conductor
- PE insulation
- Vertical wrapped AL-mylar shielding
- Tinned or bare copper braiding
- PVC jacket
Technical Parameters
- Rated temperature: 70ºC
- Rated voltage: 30V
