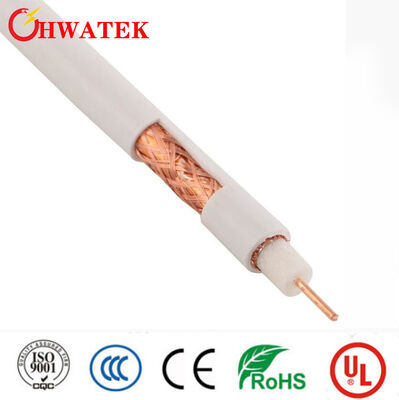

RG59 3.0-5.3mm JIS TV AV Coaxial Braid Shielded Computer Cable
This coaxial cable is specifically designed for CCTV cameras and various electronic applications requiring reliable signal transmission.
Applications
Notebook computers, digital cameras, video cameras, LCD TVs, sophisticated medical equipment, aviation systems, and intelligent robots.
Technical Specifications
| Product Number |
Conductor |
Insulation |
Shield |
Braid Shield |
Jacket |
Nominal Impedance Ω |
| HT-1.5C-2VS |
7/0.12 |
1.60 |
- |
16/5/0.10 |
3.0 |
75±5 |
| HT-2.5C-2V |
1/0.4 |
2.40 |
AL-Mylar |
16/5/0.12 |
4.0 |
75±5 |
| HT-3C-2V |
1/0.50 |
3.00 |
AL-Mylar |
16/7/0.12 |
5.0 |
75±5 |
| HT-3C-2VS |
7/0.18 |
3.10 |
AL-Mylar |
16/7/0.12 |
5.0 |
75±5 |
| HT-1.5D-2V |
7/0.18 |
1.60 |
- |
16/5/0.10 |
3.0 |
50±5 |
| HT-2.5D-2V |
1/0.80 |
2.70 |
- |
16/7/0.12 |
4.30 |
50±5 |
| HT-3D-2V |
7/0.32 |
3.00 |
- |
16/7/0.12 |
5.30 |
50±5 |
Application Details
Communication and signal control systems
Application standard: JISC3501
Product Characteristics
- Good flexibility, light weight and reliable joint
- Strong shielding property
- Flame rate: CMX, CM, CMG, CMR
- Standard thickness, easily strip and cut

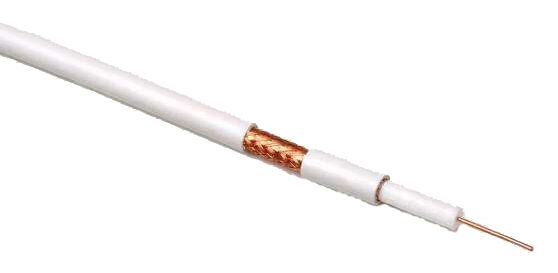

Construction
- Stranded or single bare copper conductor
- PE insulation
- Vertical wrapped AL-mylar shielding, tinned or bare copper braiding
- PVC jacket
Technical Parameters
- Rated temperature: 70ºC
- Rated Voltage: 30V
Company Profile
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish your orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final inspection before shipment.
