30V 75ºC Flame Retardant Braided Copper Coaxial Cable Electrical Wire for Power Transmission

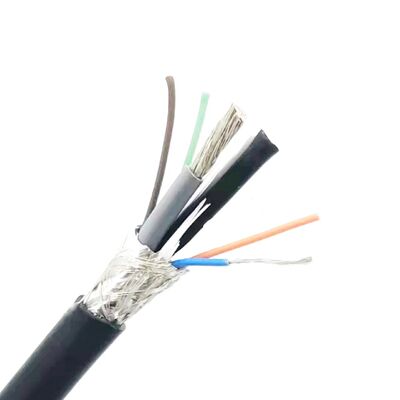

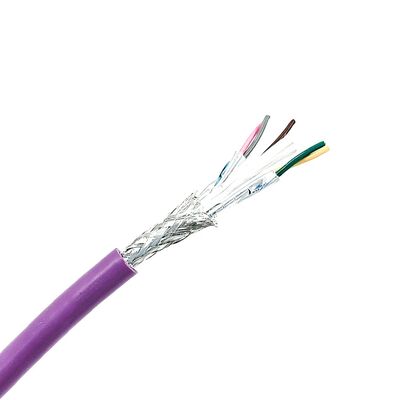

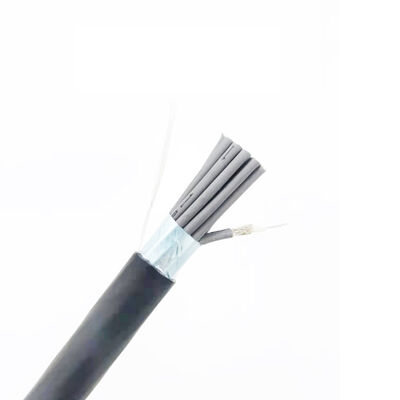

Large Image : 30V 75ºC Flame Retardant Braided Copper Coaxial Cable Electrical Wire for Power Transmission

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Rated Voltage:	30V	Rated Temperature:	-30~75ºC
Max DC Resistance:	381Ω/km	Voltage Withstand:	AC 0.75kV/1min
Impedance:	75±5Ω	Conductor Material:	Tinned Copper Stranded
Conductor Size:	7/0.10±0.005mm	Conductor O.D.:	0.30mm
Insulation Material:	Foam PE	Insulation Thickness:	0.45mm (min Avg), 0.36mm (min)
Insulation O.D.:	1.30±0.10mm	Braid Material:	Tinned Copper
Braid Size:	16/4/0.10mm (Min.90%)	Jacket Material:	FRPE(75ºC 88A)
Jacket O.D.:	11.70±0.40mm
Highlight:	30V Coaxial Cable , 75ºC Flame Retardant Electrical Wire , Braided Copper Power Cable

30V 75º C Flame Retardant Braided Copper Coaxial Electrical Wire Cable

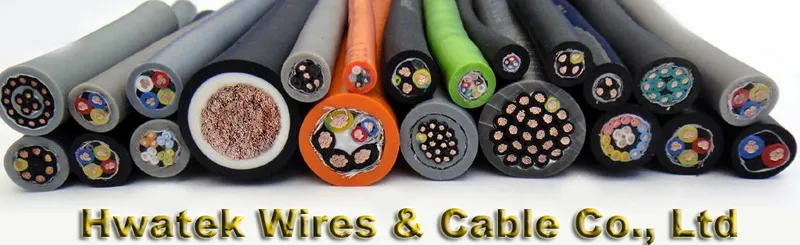

30V 75º C Flame Retardant Braided Copper Coaxial Cable product overview

Product Specifications

SPECIFICATION	CABLE NAME	Coaxial Cable
CABLE SPEC	16C×30AWG(7/0.10T)
RoHS Compliant
ITEM	16C×30AWG(7/0.10T)
CONDUCTOR	Material	Tinned Copper Stranded
	Size	7/0.10±0.005mm
	O.D.(Ref)	0.30mm
INSULATION	Material	Foam PE
	Min.average thickness	0.45mm
	Min.thickness at any point	0.36mm
O.D.(Ref)	1.30±0.10mm
BRAID	Material	Tinned Copper
Size	16/4/0.10mm(Min.90%)
INNER JACKET	Material	FRPE(75ºC 88A)
O.D.(Ref)	2.15±0.10mm
CABLING	Filler	FRPE(88A solid) (1.50±0.10mm)
	Wrapped	AL-mylar(foil facing in)
	Material	Mylar
	Assembly	16C×30AWG(7/0.10T)
JACKET	Material	Rip cord
	Material	FRPE(75ºC 88A)
	Min.average thickness	0.70mm
	Min.thickness at any point	0.56mm
O.D.(Ref)	11.70±0.40mm

Electrical Characteristics & Physical Properties

ELECTRICAL CHARACTERISTICS	PHYSICAL PROPERTIES
Rated voltage: 30V	Tensile strength: ≥8.27MPa
Rated temperature: -30~75ºC	Elongation: ≥100%
Max. DC conductor resistance(20ºC): 381Ω/km	Aged condition: 100±1ºC×48h
Voltage withstand test: AC 0.75kV/1min	Percent of original tensile strength: ≥75%
Impedance: 75±5Ω	Percent of original elongation: ≥75%

Frequency Attenuation

Frequency (MHz)	Attenuation (dB/100m) Nom.
1	3.2
10	18

Detailed Product Photos

Company Profile

Founded in 2004 with 16 years of development, we Hwatek established our new plant Nantong Hwatek Wires & Cable Co., Ltd in 2020. Located in Nantong City, Jiangsu Province, our new plant covers 34,000 square meters with 100 million investment.

We are dedicating to R&D and produce various wires and cables like industrial control, communication instruments, medical control, green energy EV and special wires and cables etc. OEM & ODM is also available.

Our Nantong Plant has passed ISO9001, ISO14001, IATF16949, ISO13485 quality system certification. All the ranges of our wires and cables are CCC, UL, CUL, CE, CSA or ETL qualified. With the company principle 'Profession, Integrity, Eco Friendly and Win-win', we are equipped with a comprehensive sales network to serve customers in various fields around the world.

Our Core Competencies

Produce Cables with Following Insulation & Jacket PVC, SR-PVC, XL-PVC(CL PVC), XLPE, FRPE, TPE, FEP Etc.
Produce Cables with Temperature Range from -40 to 200 Degree Temperature.
Produce Cables with Volatge Range from 30V to 1200V DC.
Flamability Rating - VW-1, FT1, FT2.
We have 300 Plus different UL Style approval from UL Authority.
QMS Certification- ISO9001-2015, IATF16949-2016, ISO13485-2016.
Product Certification -CCC, UL, CSA, ETL, CE.
We can support drop-in equivalent to any Brand of Cables and Custom made Cables.
