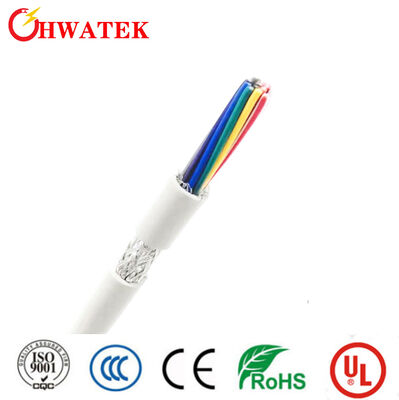

16 Core Coaxial Cable PVC Insulated Flexible Cable
Product Construction Details
Conductor: Tinned Copper Stranded
Conductor Size: 7/0.10±0.005mm
Conductor O.D.: 0.30mm
Insulation Material: Foam PE
Insulation Thickness: Min. average 0.45mm, Min. at any point 0.36mm
Insulation O.D.: 1.30±0.10mm
Braid Material: Tinned Copper
Braid Size: 16/4/0.10mm (Min. 90%)
Inner Jacket Material: FRPE (75ºC 88A)
Inner Jacket O.D.: 2.15±0.10mm
Cabling: Filler: FRPE (88A solid) (1.50±0.10mm), Wrapped: AL-mylar (foil facing in)
Outer Jacket Material: FRPE (75ºC 88A)
Outer Jacket Thickness: Min. average 0.70mm, Min. at any point 0.56mm
Outer Jacket O.D.: 11.70±0.40mm
Structure Diagram
Technical Specifications
Reference Standard: NOUL
Product Category: Low Smoke Zero Halogen
Rated Temperature: -30°C to 75°C
Rated Voltage: 30V
Structural Parameter Table
- Detailed dimensions are subject to product specifications
- Other specifications can be designed and manufactured according to customer requirements
- Sheath color is generally black, but can be customized to customer requirements

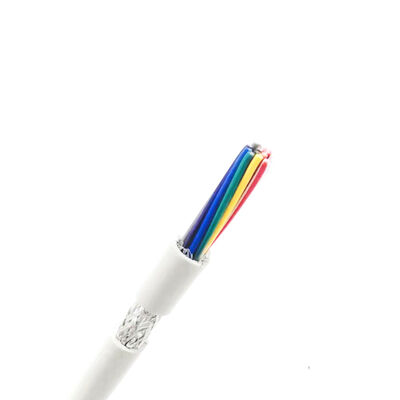

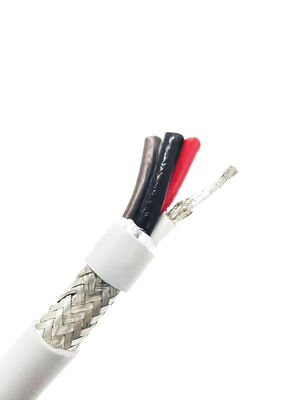

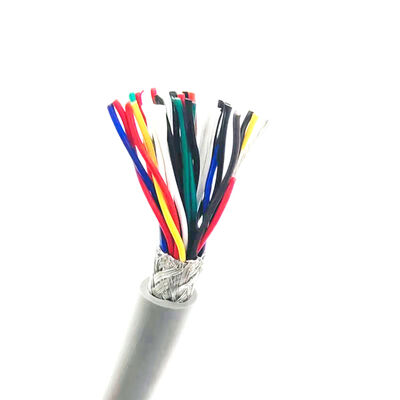

Additional Product Images
Company Profile
Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters.
In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
With ISO9001, ISO14001, IATF16949, and ISO13485 system certificates, all products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications.
We serve global customers across various fields through our established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
Certifications
Production Process
Shipping
Frequently Asked Questions
Q: What products do you supply?
A: We produce consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What certifications do you have?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we complete orders in 2-3 weeks, and 5-6 weeks during peak season.
Q: How do you guarantee product quality?
A: We provide pre-production samples before mass production and conduct final inspection before shipment.
