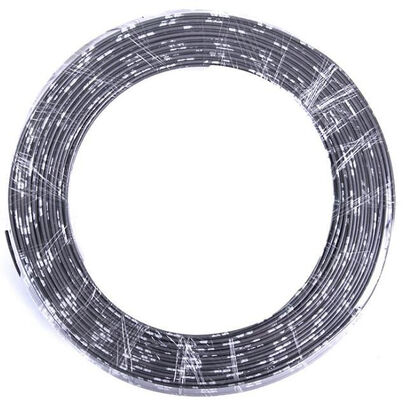

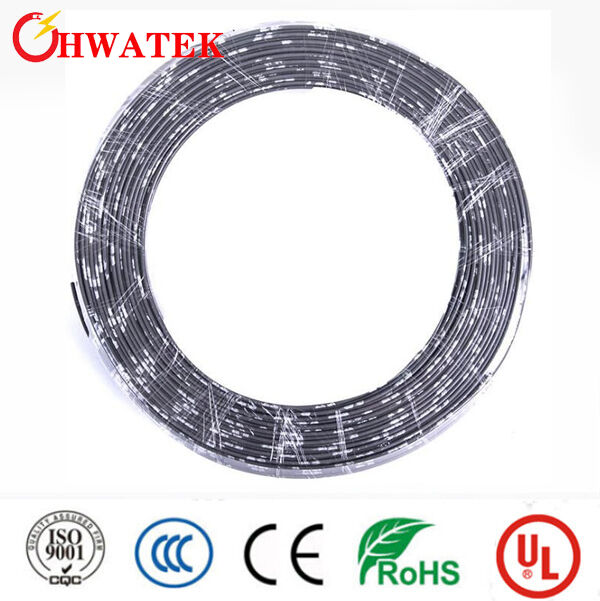

Aex Primary Automotive Wire for Vehicle Internal Wiring Oil Resistant XLPE Insulation

Large Image : Aex Primary Automotive Wire for Vehicle Internal Wiring Oil Resistant XLPE Insulation

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Model NO.:	Aex	Sheath Material:	N/a
Insulation Material:	XLPE	Material Shape:	Round Wire
Color:	Optional	Qty/Roll:	305m,610m Or As Request
Conductor Material:	Stranded, Tinned Or Bare Copper	Rated Voltage:	50V
Rated Temperature:	120ºC	Voltage Withstand:	AC 1.0kV/1min
Max Conductor Resistance:	36.7 Ω/km (for 0.5f)	Nominal Area:	0.5f, 0.5, 0.75f, 0.85, 1.25f, 1.25, 2, 3, 5, 8
Strand Count:	20/0.18, 7/0.32, 30/0.18, 11/0.32, 50/0.18, 16/0.32, 26/0.32, 41/0.32, 65/0.32, 50/0.45	Nominal Thickness:	0.5mm, 0.6mm, 0.7mm, 0.8mm
Nominal Diameter:	2.00mm, 2.20mm, 2.70mm, 3.10mm, 3.80mm, 4.60mm, 5.30mm
Highlight:	automotive wire oil resistant XLPE , vehicle internal wiring cable , primary automotive wire insulation

Aex Primary Automotive Wire for Vehicle Internal Wiring

Construction

Conductor: Stranded, tinned or bare copper
Insulation: XLPE (Cross-linked polyethylene)

Standards Compliance

International: JASO D 608-92
RoHS Compliant
REACH Compliant

Technical Specifications

Rated Voltage: 50V
Rated Temperature: 120°C

Product Characteristics

Uniform insulation thickness for easy stripping and cutting
Resistant to oil, high temperature, ozone and abrasion
High flexibility with excellent thermo and mechanical strength
Voltage withstand test: AC 1.0kV/1min

Product Specifications

Conductor	Insulation	Max. Cond. Resistance (20°C) Ω/km
NOM. AREA OF COND.	NO./mm	Nom. Thickness mm	Nom. Dia. mm
0.5f	20/0.18	0.5	2.00	36.7
0.5	7/0.32	0.5	2.00	32.7
0.75f	30/0.18	0.5	2.20	24.4
0.85	11/0.32	0.5	2.20	20.8
1.25f	50/0.18	0.6	2.70	14.7
1.25	16/0.32	0.6	2.70	14.3
2	26/0.32	0.6	3.10	8.81
3	41/0.32	0.7	3.80	5.59
5	65/0.32	0.8	4.60	3.52
8	50/0.45	0.8	5.30	2.32
