EV Charging Cable
EVC07EE - H EV Charging Cable 5C X 2.5mm2 + 2C X 0.5mm2 + W
EVC07EE - H 5C × 2.5mm2 + 2C × 0.5mm2 + W EV Charing Cable H07BZ5-F 5C×2.5mm2+2C×0.5mm2+W Product Description A:5C×2.5mm2 B:2C×0.5mm2 Conductor Bare copper stranded Cross section 2.5mm2 0.5mm2 Construction 136/0.15mm+Tinsel+ Kevlar 28/0.15mm+Tinsel+ Kevlar Strand Dia.(Ref.) 2.10mm 1.15mm Insulation ...

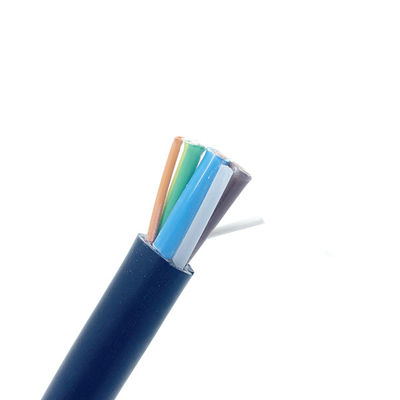

EV Charging Cable H07BZ5 - F 5C X 6mm2 + 2C X 0.75mm2 + W
H07BZ5 - F 5C × 6mm2 + 2C × 0.75mm2 + W EV Charing Cable H07BZ5-F 5C×6mm2+2C×0.75mm2+W Product Description Conductor Bare copper stranded Cross section 6mm2 0.75mm2 Construction 189/0.20mm 40/0.15mm+Tinsel+Kevlar Strand Dia. 3.40mm 1.30mm Insulation EVI-2 EVI-2 Nom.Thickness 0.70mm 0.41mm Min...

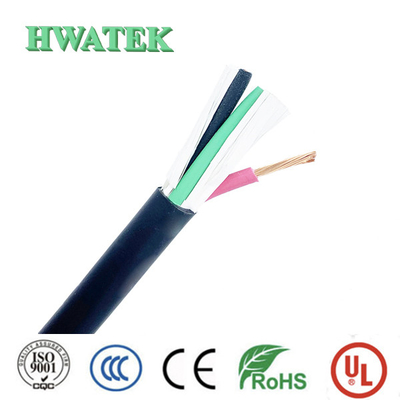

EV Charging Cable E473281 (UL) EVE 2Cx8AWG + 1Cx10AWG + 1Cx18AWG
E473281 (UL) EVE 2C×8AWG + 1C×10AWG + 1C×18AWG EV Charging Cable E473281 (UL) EVE 2C×8AWG+1C×10AWG +1C×18AWG Product Description ITEM A : 2C×8AWG B :1C×10AWG C : 1C×18AWG CONDUCTOR Material Bare copper stranded Size 168/0.254±0.008mm 105/0.254±0.008mm 16/0.254±0.008mm O.D.(Ref) 4.10mm 3.00mm 1.18mm ...
Electric Vehicle Charging Cable 11kw 16A 3 Phase CE Approved
EV Charge Electric Vehicles 11kw 16A 3 Phase 5 * 2.5mm² + 2 * 0.5mm² CE Approved Cable EVC07EE-H 5C×2.5mm2+2C×0.5mm2+W Product Description A:5C×2.5mm2 B:2C×0.5mm2 Conductor Bare copper stranded Cross section 2.5mm2 0.5mm2 Construction 136/0.15mm+Tinsel+ Kevlar 28/0.15mm+Tinsel+ Kevlar Strand Dia....
TPE Jacket EV Charging Cable 5C X 6mm2 + 2C X 0.5mm2 + W
EVC07EE - H 5C × 6mm2 + 2C × 0.5mm2 + W EV Charing Cable EVC07EE-H 5C×6mm2+2C×0.5mm2+W Product Description Conductor Bare copper stranded Cross section A:6mm2 B:0.5mm2 Construction 189/0.20mm 28/0.15mm+Tinsel+Kevlar Strand Dia. 3.40mm 1.15mm Insulation TPE TPE Nom.Thickness 0.80mm 0.38mm Min...
Tinned Copper 105 Deg C EV Charging Cable UL 62 Approved
EV 3 X 10AWG 105 Strands/30AWG + 1 X 18AWG 16strands /30AWG, UL 62 Approved, 105 Deg C EV Charging Cable Product Description ITEM A:3C×10AWG B:1C×18AWG CONDUCTOR Material Bared Copper Stranded Size 105/0.254±0.008mm 16/0.254±0.008mm O.D.(Ref) 3.00mm 1.18mm INSULATION Material TPE TPE Min.average ...
1000V Hv High Voltage EV Charging Cable Multicore DC Electric
1000V Hv High Voltage EV Power Charger Multicore DC Electric Wire Cable SPECIFICATION CABLE NAME EV Cable CABLE SPEC 2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2) RoHS Compliant Item A : 2C×80mm2 B : 1C×25mm2 C : 1C×4mm2 D:(3C×0.75mm2)(P2) E:(7C×0.75mm2) CONDUCTOR Material Bared copper ...
IEC 62893 EV Cable 2Cx25mm2+1Cx25mm2+ (6Cx0.75mm2+W)
IEC 62893 2C×25mm2+1C×25mm2+(6C×0.75mm2+W) EV CABLE A: 2C×25mm2 B:1C×25mm2 C:6C×0.75mm2 Jacket Conductor Bare copper stranded Material EVM-1 Cross section 25mm2 25mm2 0.75mm2 Tensile strength ≥20MPa Construction 798/0.20mm 798/0.20mm 40/0.15mm+Tinsel+ Kevlar Elongation ≥300% Strand Dia.(Ref.) 7.00mm ...
CQC Certified Electric Vehicle Charging Cable EVE 3Cx10AWG+2Cx18AWG
EVE 3C×10AWG+2C×18AWG Cable EV-(R)S90U EV-(R)S90S90PU AC450/750V CQC certified electric vehicle charging cable Certification Body: General Administration of Quality Supervision, Inspection and Quarantine Certificate No. Product Types CQC16011142377 EV-(R)SS,EV-(R)SSPS,EV-(R)S90S90,EV-(R)S90S90PS90...
