ISO6722 Certified EV Charging Cable with 1500V DC and 1000V AC for Electric Vehicle Energy Storage Battery Connection

ISO6722 Certified EV Charging Cable with 1500V DC and 1000V AC for Electric Vehicle Energy Storage Battery Connection
ISO6722 Certified EV Charging Cable with 1500V DC and 1000V AC for Electric Vehicle Energy Storage Battery Connection ISO6722 Certified EV Charging Cable with 1500V DC and 1000V AC for Electric Vehicle Energy Storage Battery Connection ISO6722 Certified EV Charging Cable with 1500V DC and 1000V AC for Electric Vehicle Energy Storage Battery Connection

Large Image :  ISO6722 Certified EV Charging Cable with 1500V DC and 1000V AC for Electric Vehicle Energy Storage Battery Connection

Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1,000
Price: 0.5
Contact Now
Detailed Product Description
Model NO.: ISO6722 Production Capacity: 20km/Day
Conductor Type: Type VI Stranded Bare Copper/tinned Copper Insulation Material: Silicone Rubber
Temperature Range: -65ºC ~200ºC Rated Voltage DC: 1500V
Rated Voltage AC: 1000V AWG 10mm2 Current: 75A
AWG 16mm2 Current: 100A AWG 25mm2 Current: 135A
AWG 35mm2 Current: 165A AWG 50mm2 Current: 215A
AWG 70mm2 Current: 260A AWG 95mm2 Current: 320A
AWG 120mm2 Current: 370A
Highlight:

ISO6722 EV Charging Cable

,

1500V DC EV Charging Cable

,

1000V AC Electric Vehicle Energy Storage Battery Connection Cable

Electric Vehicle Energy Storage Battery Connection Cable (EV Cable)
Product Description

Designed for instrumentation, motor lead wire, and car battery pack connections, this high-performance EV cable meets ISO6722 standards.

Key Features
  • Excellent resistance to acids, alkalis, and fungal growth
  • Performs reliably in damp, hot environments and with various greases
  • Superior flexibility with waterproof and pressure-resistant properties

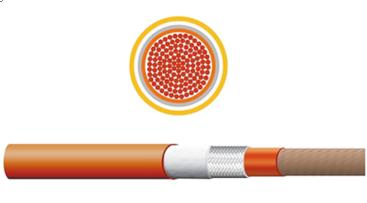

  • Conductor: Type VI stranded bare copper/tinned copper
  • Insulation: High-grade silicone rubber
  • Temperature range: -65ºC to 200ºC
  • Rated voltage: 1500V DC/1000V AC
  • Custom specifications available upon request
Technical Specifications
AWG Rated Voltage Rated Current (A) Insulation Color
10mm²1500V75ASiliconeCustomized
16mm²1500V100ASiliconeCustomized
25mm²1500V135ASiliconeCustomized
35mm²1500V165ASiliconeCustomized
50mm²1500V215ASiliconeCustomized
70mm²1500V260ASiliconeCustomized
95mm²1500V320ASiliconeCustomized
120mm²1500V370ASiliconeCustomized
150mm²1500V430ASiliconeCustomized
185mm²1500V495ASiliconeCustomized
240mm²1500V595ASiliconeCustomized
Product Images
ISO6722 Certified EV Charging Cable with 1500V DC and 1000V AC for Electric Vehicle Energy Storage Battery Connection 0 ISO6722 Certified EV Charging Cable with 1500V DC and 1000V AC for Electric Vehicle Energy Storage Battery Connection 1 ISO6722 Certified EV Charging Cable with 1500V DC and 1000V AC for Electric Vehicle Energy Storage Battery Connection 2 ISO6722 Certified EV Charging Cable with 1500V DC and 1000V AC for Electric Vehicle Energy Storage Battery Connection 3 ISO6722 Certified EV Charging Cable with 1500V DC and 1000V AC for Electric Vehicle Energy Storage Battery Connection 4 ISO6722 Certified EV Charging Cable with 1500V DC and 1000V AC for Electric Vehicle Energy Storage Battery Connection 5 ISO6722 Certified EV Charging Cable with 1500V DC and 1000V AC for Electric Vehicle Energy Storage Battery Connection 6 ISO6722 Certified EV Charging Cable with 1500V DC and 1000V AC for Electric Vehicle Energy Storage Battery Connection 7 ISO6722 Certified EV Charging Cable with 1500V DC and 1000V AC for Electric Vehicle Energy Storage Battery Connection 8 ISO6722 Certified EV Charging Cable with 1500V DC and 1000V AC for Electric Vehicle Energy Storage Battery Connection 9
Company Profile

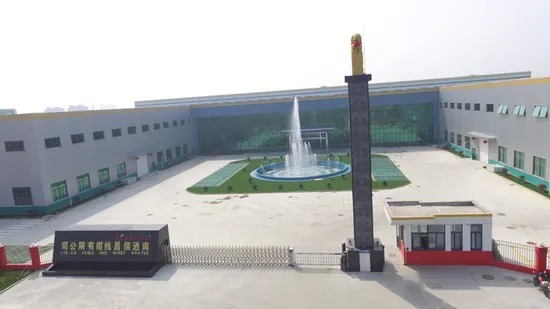

Founded in 2004, Hwatek established Nantong Hwatek Wires & Cable Co., Ltd in 2020. Our 34,000 square meter facility in Nantong City, Jiangsu Province represents a 100 million investment in advanced cable manufacturing.

Specializing in R&D and production of industrial control, communication instruments, medical control, green energy EV, and special wires and cables. We offer comprehensive OEM & ODM services.

Certifications include ISO9001, ISO14001, IATF16949, ISO13485, with products meeting CCC, UL, CUL, CE, CSA, TUV, DEKRA, IEC, CQC, and ETL standards. Our principle of 'Profession, Integrity, Eco Friendly and Win-win' drives our global service network.

Frequently Asked Questions
What products do you supply?

We manufacture consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.

What certifications do you hold?

Our products are certified to UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL standards.

Can we request samples before ordering?

Yes, we provide samples for evaluation prior to production orders.

What is your typical lead time?

Standard orders complete in 2-3 weeks, extending to 5-6 weeks during peak seasons.

How do you ensure product quality?

We conduct pre-production sampling and final inspection before shipment to guarantee quality standards.
