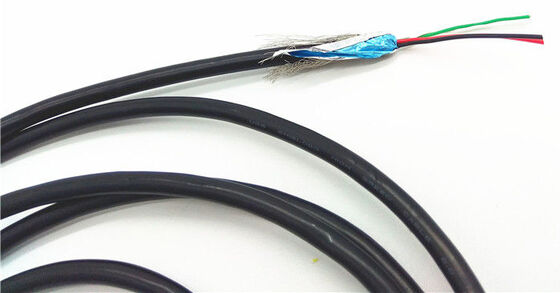

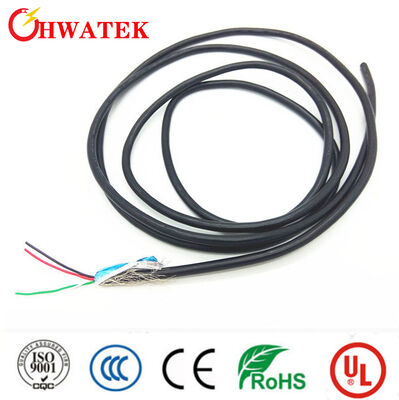

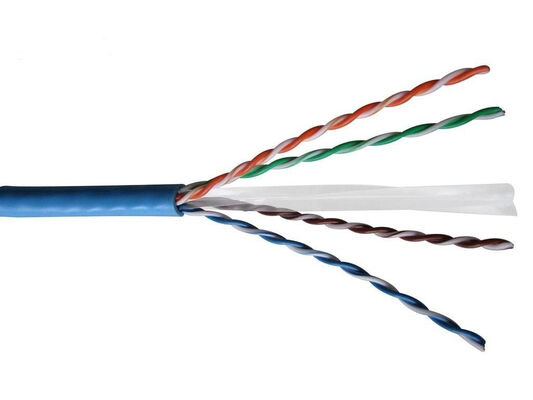

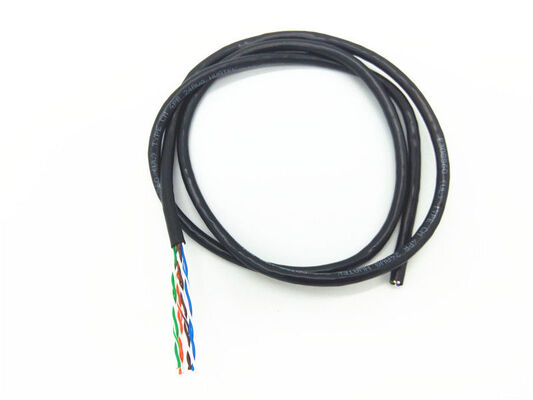

UTP Cat5e CAT6 Network Cable with High-speed Transmission Strong Shielding and Flame Retardant CMX for Outdoor Communication

Large Image : UTP Cat5e CAT6 Network Cable with High-speed Transmission Strong Shielding and Flame Retardant CMX for Outdoor Communication

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	10,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	PVC
Insulation Material:	PE	Material Shape:	Round Wire
Conductor Diameter:	0.51mm, 0.53mm	Insulation Thickness:	0.95mm, 1.00mm
No. Of Pairs:	4	Shield Type:	UTP, FTP, S-UTP, S-FTP
Shield Material:	AL-Mylar	Braid Shield:	16/6/0.10mm
Jacket Diameter:	5.10mm, 5.60mm, 6.00mm	Flame Rate:	CMX, CM, CMG, CMR
Transmission Speed:	100Base-T4, 100Base-TX, 1000Base-T, 155Mbps ATM, 622Mbps ATM	Roll Length:	305m, 610m
Application Standard:	UL444
Highlight:	High-speed transmission UTP Cat5e Cable , Strong shielding CAT6 Network Cable , Flame retardant CMX SFTP FTP Shielded LAN Cable

UTP Cat5e, CAT6 Network SFTP FTP UTP Shielded LAN Internet Camera Outdoor Communication Cable

Products are used in 100Base-T4, 100Base-TX, 1000Base-T (Gigabit internet), 155Mbps ATM, 622Mbps ATM.

Application

Communication and signal control systems

Application Standard

UL444

Product Characteristics

High-speed transmission, strong shielding property
Flame rate: CMX, CM, CMG, CMR
Standard thickness, easily strip and cut

Construction

Stranded or Solid copper, tinned or bare conductor, copper jacket steel conductor
PE insulation
PVC jacket

Product Specifications

Product Number	Conductor	Insulation	Construction	Shield	Braid Shield	Jacket
HT-CAT5-UTP001	1/0.51	0.95	UTP 4	-	-	5.10
HT-CAT5-FTP001	1/0.53	1.00	FTP 4	AL-Mylar	-	5.60
HT-CAT5-SUTP001	1/0.53	1.00	S-UTP 4	AL-Mylar	16/6/0.10	6.00
HT-CAT5-SFTP001	1/0.53	1.00	S-FTP 4	AL-Mylar	16/6/0.10	6.00
