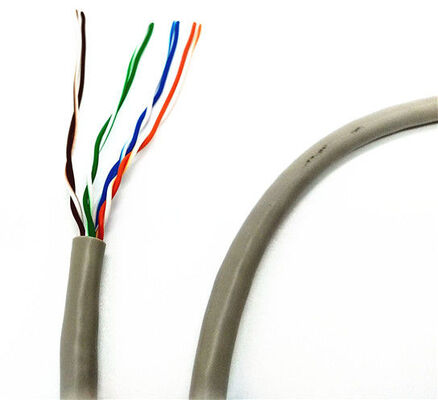

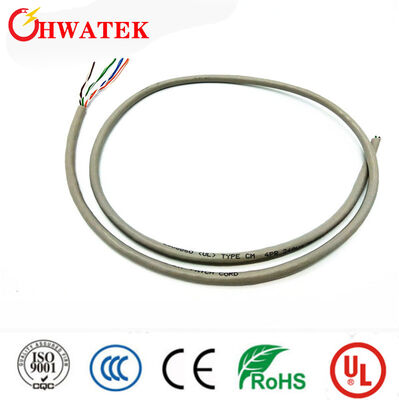

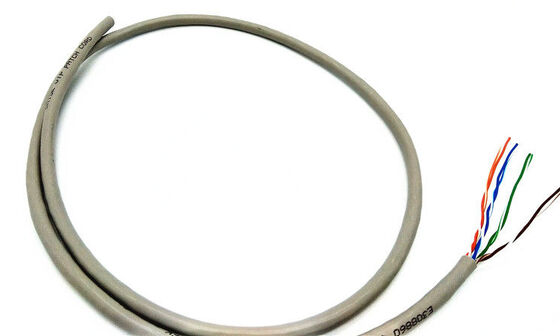

UL444 Certified CAT6A UTP Ethernet LAN Cable for High-Speed Transmission with CMX Flame Rate

Large Image : UL444 Certified CAT6A UTP Ethernet LAN Cable for High-Speed Transmission with CMX Flame Rate

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	10,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	PVC
Insulation Material:	PE	Material Shape:	Round Wire
Cable Type:	CAT6A UTP	Conductor Diameter:	1/0.57 Mm
Insulation Thickness:	1.02 Mm	No. Of Pairs:	4
Shield Type:	UTP	Nominal Diameter:	6.00 Mm
Flame Rate:	CMX, CM, CMG, CMR	Application Standard:	UL444
Roll Length:	305m, 610m	Transmission Speed:	1000Base-T
Conductor Type:	Stranded Or Solid
Highlight:	UL444 Certified CAT6A UTP Cable , High-Speed Transmission Ethernet LAN Cable , CMX Flame Rate Outdoor Network Cable

CAT6A UTP Outdoor Ethernet Network Cable

High-performance CAT6A UTP outdoor Ethernet cable designed for reliable network connectivity in demanding environments.

Applications

Ideal for communication and signal control systems in outdoor and industrial settings.

100Base-T4 networks
100VG-AnyLAN systems
1000Base-T (Gigabit Ethernet)
155Mbps ATM networks
622Mbps ATM systems

Certifications & Standards

UL444 compliant with flame ratings: CMX, CM, CMG, CMR

Product Characteristics

High-speed data transmission capabilities
Excellent shielding properties
Standard thickness for easy stripping and cutting
Durable outdoor-rated construction

Construction Details

Conductor: Stranded or solid copper, tinned or bare conductor options
Insulation: PE (Polyethylene)
Jacket: PVC for outdoor durability

Product Specifications

Product Number	Conductor	Insulation	Construction	Shield	Braid Shield	Jacket Diameter
HT-CAT6-UTP001	1/0.57	1.02	UTP 4	-	-	6.00 mm
HT-CAT6-FTP001	1/0.57	1.00	FTP 4	AL-Mylar	-	6.30 mm
HT-CAT6-SUTP001	1/0.57	1.00	S-UTP 4	AL-Mylar	16/6/0.10	6.50 mm
HT-CAT6-SFTP001	1/0.57	1.05	S-FTP 4	AL-Mylar	16/6/0.10	6.70 mm

Company Profile

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.

Quality Certifications

ISO9001, ISO14001, IATF16949, ISO13485 system certificates with product certifications including CCC, UL, CUL, CE, CSA, and ETL safety standards.

We operate under the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION, serving global customers across various industries.
