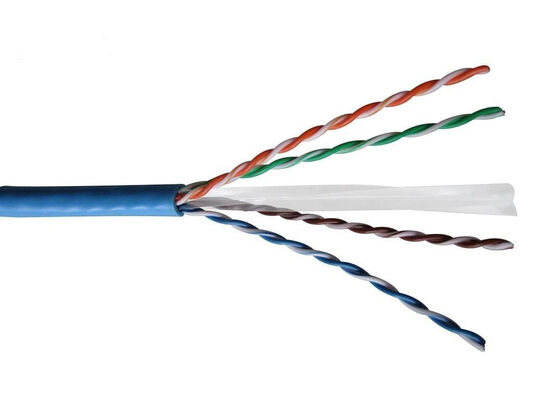

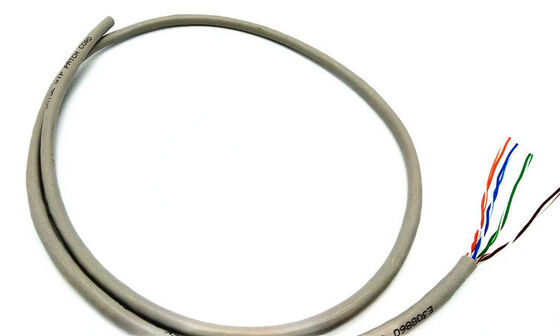

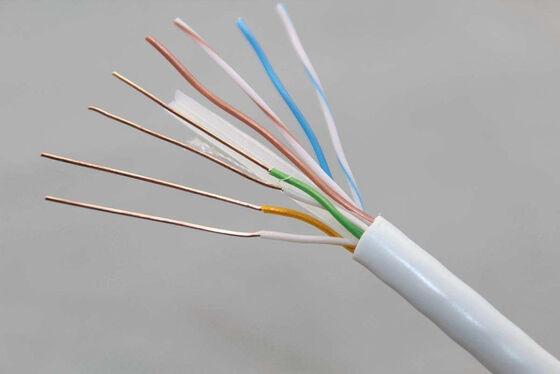

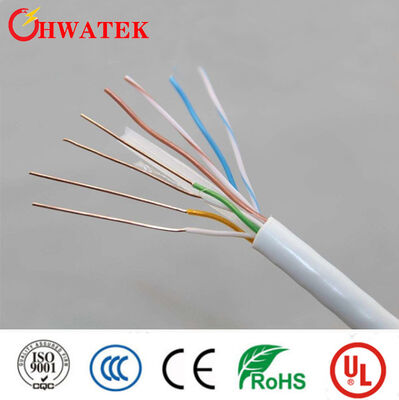

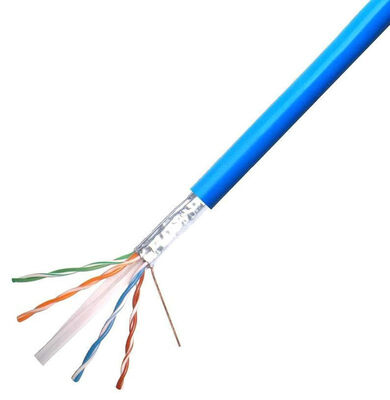

Category 5e Network Al-Mylar Shielded S-UTP Cat5e Cable
Cable Construction
Conductor: Stranded or Solid, tinned, bare copper clad steel silvered plated copper conductor
Insulation: PE
Jacket: PVC or FRPE
Compliance Standards
International: UL758, UL1581, UL2556, UL13, UL444, IEC61156, TIA568
RoHS, REACH Compliant
Technical Specifications
Rated Voltage: 30V
Rated Temperature: -20ºC to 80ºC
Flame Rating: VW-1, CMR, CM, CMG
Voltage Withstand Test: AC 0.5kV/1min
Performance Properties
- High transmission speed
- Excellent shielding properties
- Superior insulation performance
Technical Parameters
| Frequency (MHz) |
Impedance |
RL (dB) |
Attenuation (dB/100m) |
Next (dB) |
PsNext (dB) |
ElFext (dB) |
PsElFext (dB) |
| 0.772 | 100±15 | 20 | 1.80 | 67 | 64 | 66 | 63 |
| 1 | 100±15 | 20 | 2.04 | 65.3 | 62.3 | 63.8 | 60.8 |
| 4 | 100±15 | 23 | 4.05 | 56.3 | 53.3 | 51.7 | 48.7 |
| 8 | 100±15 | 24.5 | 5.76 | 51.8 | 48.8 | 45.7 | 42.7 |
| 10 | 100±15 | 25 | 6.46 | 50.3 | 47.3 | 43.8 | 40.8 |
| 16 | 100±15 | 25 | 8.24 | 47.3 | 44.3 | 39.7 | 36.7 |
| 20 | 100±15 | 25 | 9.26 | 45.8 | 42.8 | 37.7 | 34.7 |
| 25 | 100±15 | 24.3 | 10.42 | 44.3 | 41.3 | 35.8 | 32.8 |
| 31.25 | 100±15 | 23.3 | 11.72 | 42.9 | 39.9 | 33.9 | 30.9 |
| 50 | 100±15 | 21.74 | 15.06 | 37.2 | 37.2 | 30.24 | 27.24 |
| 62.5 | 100±15 | 20.7 | 16.99 | 38.4 | 35.4 | 27.8 | 24.8 |
| 100 | 100±15 | 19 | 21.97 | 35.3 | 32.3 | 23.8 | 20.8 |
