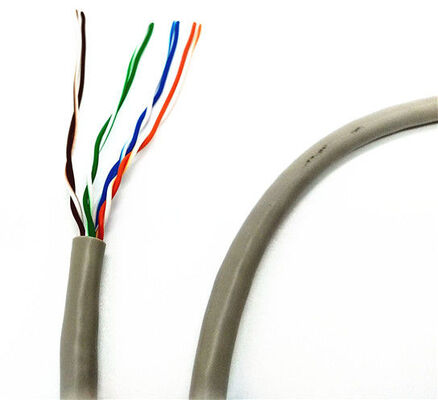

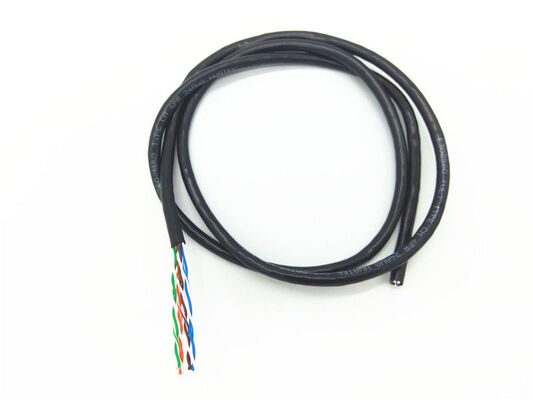

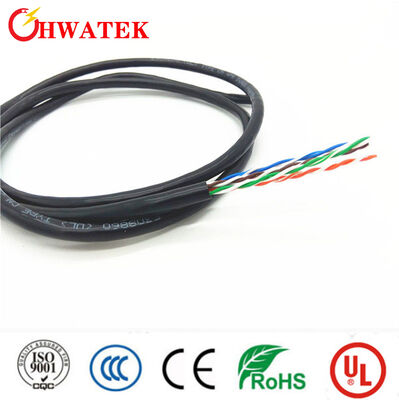

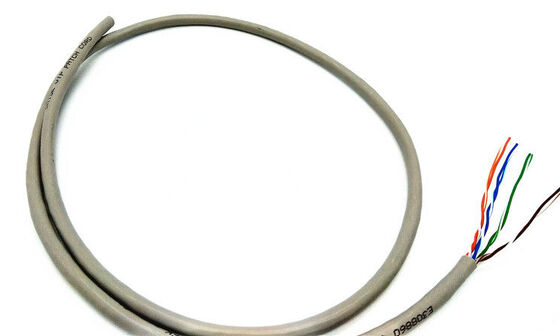

Halogen Free PVC Jacket/FRPE Jacket Category Cat 6 UTP LAN Cable
Cable Construction
- Conductor: Stranded or Solid, tinned, bare copper clad steel silvered plated copper conductor
- Insulation: PE

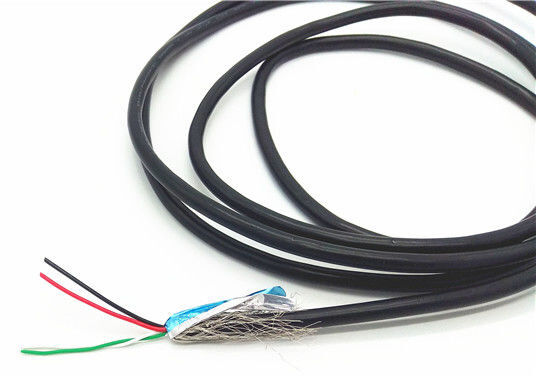

- Shield or Braid: Copper wire braid shield and Al-Mylar shield
- Jacket: PVC or FRPE
Compliance Standards
International: UL758, UL1581, UL2556, UL13, UL444, IEC61156, TIA568
RoHS, REACH Compliant
Technical Specifications
- Rated Voltage: 30V
- Rated Temperature: -20ºC to 80ºC
- Flame Rating: VW-1, CMR, CM, CMG
- Voltage Withstand Test: AC 0.5kV/1min
Performance Properties
- High transmission speed
- Excellent shielding properties
- Superior insulation performance
Technical Parameters
| Frequency MHz |
Impedance |
RL dB |
Attenuation dB/100m |
Next dB |
PsNext dB |
ElFext dB |
PsElFext dB |
| 0.772 | 100±15 | 19.4 | 1.80 | 76 | 74 | 70 | 67 |
| 1 | 100±15 | 20 | 2.04 | 74.3 | 72.3 | 67.8 | 64.8 |
| 4 | 100±15 | 23 | 4.05 | 65.3 | 63.3 | 55.8 | 52.8 |
| 8 | 100±15 | 24.5 | 5.40 | 60.8 | 58.8 | 49.7 | 46.7 |
| 10 | 100±15 | 25 | 6.00 | 59.3 | 57.3 | 47.8 | 44.8 |
| 16 | 100±15 | 25 | 7.7 | 56.3 | 54.2 | 43.7 | 40.7 |
| 20 | 100±15 | 25 | 8.6 | 54.8 | 52.8 | 41.7 | 38.7 |
| 25 | 100±15 | 24.3 | 9.6 | 53.3 | 51.3 | 39.8 | 36.8 |
| 31.25 | 100±15 | 23.3 | 10.8 | 51.9 | 49.9 | 37.9 | 34.9 |
| 62.5 | 100±15 | 20.7 | 15.7 | 47.4 | 45.4 | 31.8 | 28.8 |
| 100 | 100±15 | 19 | 20.2 | 44.3 | 42.3 | 27.8 | 24.8 |
| 200 | 100±22 | 16.4 | 29.8 | 39.8 | 37.8 | 21.7 | 18.8 |
| 250 | 100±22 | 15.5 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 |
Company Profile
Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters. With ISO9001, ISO14001, IATF16949, and ISO13485 system certifications, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers across various industries through our established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
Certifications
Production Process
Shipping & Logistics
Frequently Asked Questions
Q: What products do you supply?
A: We manufacture consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What certifications do you hold?
A: We maintain UL, CE, 3C, Dekra, CQC, TUV, RoHS, Reach, and ETL certifications.
Q: Can we receive samples before ordering?
A: Yes, we provide samples for evaluation prior to order placement.
Q: What is your typical lead time?
A: Standard orders are completed within 2-3 weeks, extending to 5-6 weeks during peak seasons.
Q: How do you guarantee product quality?
A: We conduct pre-production sampling before mass production and perform final inspection before shipment.
